Old 04-10-2008, 09:04 AM   #31 (permalink)
Master EcoModder

tasdrouille's Avatar

Join Date: Jan 2008
Location: Mirabel, QC
Posts: 1,672

The Guzzler - '08 Hyundai Elantra GL
90 day: 33.12 mpg (US)

Got Soul? - '11 Kia Soul 2U
Thanks: 35
Thanked 86 Times in 57 Posts
Quote:
Originally Posted by SteveP View Post
OK, just to confuse things further, here's something I ran across late today. It's from an SAE paper, 951906, "Vehicle Design Strategies to Meet and Exceed PNGV Goals" by Timothy C. Moore and Amory B. Lovins, found here

https://www.rmi.org/images/PDFs/Tran...nStategies.pdf
Thanks for the link! I'm an avid areo paper reader

Quote:
The following comes from page 11:

"Rather than smooth the underbody and attempt to tuck chassis
components up out of the flow, the industry strategy has
tended towards air dams below the front bumper to force much
of the flow around the vehicle rather than under.
Well, that is totally understandable! Lets suppose you have a given vehicule that looks like an aerodynamic wreck underside. What are you going to do? Redesign everything so you get a more or less streamlined underside? Or stick a plastic dam up in front of all that mess and acheive decent results? Accountants usually have the most convincing arguments when comes the time for management to make decisions.

Quote:
This needlessly
increases frontal area and leads to the erroneous notion
that achieving very low aerodynamic drag requires extremely
low ground clearance[5]."
Since it actually reduced drag, I don't think you can say it needlessly increased frontal area. The guy seems to forget the answer depends on the vehicule you start with.

Quote:
Footnote [5] says:

"If chassis components are streamlined or otherwise covered
by a smooth floorpan to prevent interference drag, there is
little reason, beyond the limited exposure of more of the tires’
frontal area, to prevent the airflow from passing under the car
(P. MacCready, AeroVironment, personal communication,
April 1995). Allowing the airflow to pass under the car can
actually aid in eliminating lift-induced drag."
I completely agree with that. However, I am inclined to beleive almost all the cars on the road today do not have the level of smoothness of the underside required not to benefit from reduced underside airflow.

It is clear in my mind that the average daily driver will see a drag reduction if lowered.

It is also clear in my mind that a streamlined concept vehicule will see a drag reduction if it is rised.

The only gray area that's left is for ground vehicules akin the lotus elise. Cause it's not just the smoothness that counts, the shape is at least as important.

__________________



www.HyperKilometreur.com - Quand chaque goutte compte...
  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 04-10-2008, 06:33 PM   #32 (permalink)
EcoModding Lurker

Join Date: Apr 2008
Location: SF Bay Area
Posts: 35
Thanks: 0
Thanked 3 Times in 3 Posts
Quote:
Originally Posted by trebuchet03 View Post
I'm not looking for transferability - but there was a blanket statement made that applies to vehicles with streamlined undersides.
Yes, but the statements I quoted were originally in the context of cars and trucks. And this thread started out being about cars. Sorry if that wasn't clear. Not saying your comment about lowering the height wasn't interesting or useful--just wanting to make sure I really understand the import of it.

tasdrouille: If you only look at the extremes (avg daily driver vs. streamlined concept car) maybe things are as clear as you suggest. But what do you tell the person who has put a smooth belly pan on his car and wants to know if he should also raise or lower the height? Also, many cars coming out today have smoother undersides than cars of ten years ago--what do you tell their owners? (And while I admire the spirit of "just try it", some of us have limited time/resources and need/want to put our time/money where we'll get the most bang for our buck.)

CoyoteX: if you're really interested in interactions between the wheel and the wheel well, have a look at SAE paper 2002-0105209. Reducing drag in that area isn't straightforward--even the guys with the moving floor wind tunnels and CFD technology take a lot of trial and error to improve it. The message from that paper (to me) was: just putting the wheel higher in the well doesn't necessarily improve overall Cd.

--Steve

Last edited by SteveP; 04-10-2008 at 06:34 PM.. Reason: Removed "is" (can you tell I'm a programmer??)
  Reply With Quote
Old 04-10-2008, 06:57 PM   #33 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 15,861
Thanks: 23,922
Thanked 7,207 Times in 4,640 Posts
fineness ratio

Quote:
Originally Posted by SteveP View Post
Maybe you mean something different by "fineness ratio" than I understand it to mean, so perhaps you should provide a short definition. Mine is "width/length" (or, for a cylinder, diameter/length). I therefore don't understand how lowering a car can alter its fineness ratio.

Also, would you be so kind as to expand on your comment that "Since road vehicles all suffer from the "mirroring" effect of the ground,anything which can be done to increase fineness-ratio is a shoe-in for lower drag". What does fineness ratio have to do with the ground effect? I could see it if you were *narrowing* the car, but lowering it doesn't do that.

Thanks,
--Steve
Steve,good question and I'll try and do it justice.From experimental investigation,it was discovered,back in the 1920s,that a body of revolution (say a Zeppelin body/fuselage) which had a drag coefficient of X in free air,would have a drag coefficient of 2X near the ground.The drag behaved as if you had placed the object on a mirror,and the air was striking both images,hence "mirroring".In early windtunnel photographs you will actually see car models joined at the wheels,one right side up,the other upside down,hanging in the air stream.When viewed from the side,if you drew a line which enveloped the double-car combination,hitting all the high points and spanning the voids,the line might describe an egg,as in the VW Beetle.The length of the "egg" divided by the height of the egg would define it's "fineness ratio".Its kinda like the aspect ratio of a wing,where the double-car is the airfoil.Kinda weird! Anyway,since all vehicles are in ground-effect,they all suffer from this virtual "mirroring" effect.So if you divide the length of your car by its height and say its 3-to-1,which would otherwise be very efficient,as far as the air is concerned,its only 1.5-to-1,an extremely blunt body,and not a good candidate for low drag.Hucho's first English translation edition from 1987 shows this whole affair on page 200.By lowering a car,you effectively stretch out the "egg",improving it's fineness as you approach 6-to-1,the ideal for anything in ground-effect.If you go longer,profile drag improves at a lower rate than skin friction which begins to climb,canceling out the benefit of any additional length.A wing has extremely low profile drag but extremely high skin friction and is unfit as a model for car bodies.A symmetrical airfoil of 6-to-1 aspect ratio,cut in half lengthwise,would describe the lowest drag car body.Not really practical because of the necessary length,however it is the "pumpkin-seed" form chosen for world-class energy sippers.Our challenge is to get as close as we can to the efficiency of the pumpkin-seed while addressing all the other parameters of automotive operation.
__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/
  Reply With Quote
Old 04-10-2008, 07:07 PM   #34 (permalink)
Liberti

LostCause's Avatar

Join Date: Feb 2008
Location: California
Posts: 504

Thunderbird - '96 Ford Thunderbird
90 day: 27.75 mpg (US)
Thanks: 0
Thanked 7 Times in 7 Posts
This is a tricky issue because it is a balancing act. Without proper testing, I can't imagine any of us offering more than an intuitive suggestion.

My intuitive suggestion is to lower the ride height until ~6 inches of clearance exists between the road and frame, fair everything in sight as smoothly and thoughtfully as possible, and install stiffer springs that keep the car stable at an AOA (angle of attack) of 0 degrees.

The only thing I remember having read on the subject is this online chapter that deals with race car aerodynamics. Here is the paragraph in question with its respective graph:

Quote:
Originally Posted by Race Car Aerodynamics - Joseph Katz
The effect of ground proximity was shown to have a strong influence on the aerodynamic coefficients of generic bodies. For enclosed-wheel vehicles, with reasonably clean underbody flow, drag and lift usually decreases with decreasing ground clearance, as shown in Fig. 6.18. The increase in the downforce can be attributed to the higher speeds under the car, with decreased ground clearance. The drag reduction in automobile shapes with major rear flow separations is partially a result of this faster airstream emerging from under the vehicle, which reduces the size of the rear flow separation.

Another effect that causes this trend is the reduction in the frontal exposed area of the wheels (as they slide into the body), which decreases drag with the reduced ground clearance. In regard to lift, the interesting observation is that the trend (that less ground clearance equals less drag and less lift) is reversed at a certain small distance. This is a result of the viscous effects (thick boundary layer) of the too-small ground clearance blocking the flow between the road and the vehicle underpanel. Thus, in this case of very small ground clearance the flow resembles the case of the semi-ellipsoid and not that of the ellipsoid. In Fig. 6.18 the critical distance for the lift reversal is close to 3.5 cm, but for full-scale race cars with smooth underbody, moving on the track, this distance can be as small as 0-5 cm.

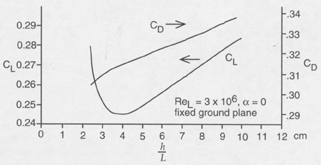

Fig. 6.18 - Cd vs. Ground Clearance
