Old 05-13-2012, 10:04 PM   #11 (permalink)
Master EcoModder

Join Date: Feb 2010
Location: Elmira, NY
Posts: 1,750
Thanks: 311
Thanked 346 Times in 290 Posts
The trick with an air cooled engine is getting air flow smoothly in and out of the fairing. A NACA inlet on either side of the dustbin ahead of the engine would work. The ideal exit point is near the rider's leg. If possible find a low pressure area behind the legs as the rear half of the fairing narrows. With the dustbin front you are looking at a long tail section to maintain aero stability. Consider an electric fan in front of the engine fins and a temperature gauge of some sort.

  Reply With Quote
The Following User Says Thank You to Grant-53 For This Useful Post:
renault_megane_dci (05-14-2012)
Alt Today
Popular topics

Other popular topics in this forum...


Old 05-14-2012, 06:50 AM   #12 (permalink)
Master EcoModder

Join Date: Feb 2009
Location: France - Paris
Posts: 762

la_voiture_de_courses - '03 Renault Megane Estate
OldContinents
90 day: 44.34 mpg (US)

xiao lan - '01 Audi A2
90 day: 38.88 mpg (US)

Brit iron - '92 Mini Mini
90 day: 45.5 mpg (US)

Prius - '09 Toyota PRIUS Lounge
90 day: 47.37 mpg (US)

Beemer - '06 BMW F800 ST
90 day: 53.06 mpg (US)
Thanks: 188
Thanked 33 Times in 30 Posts

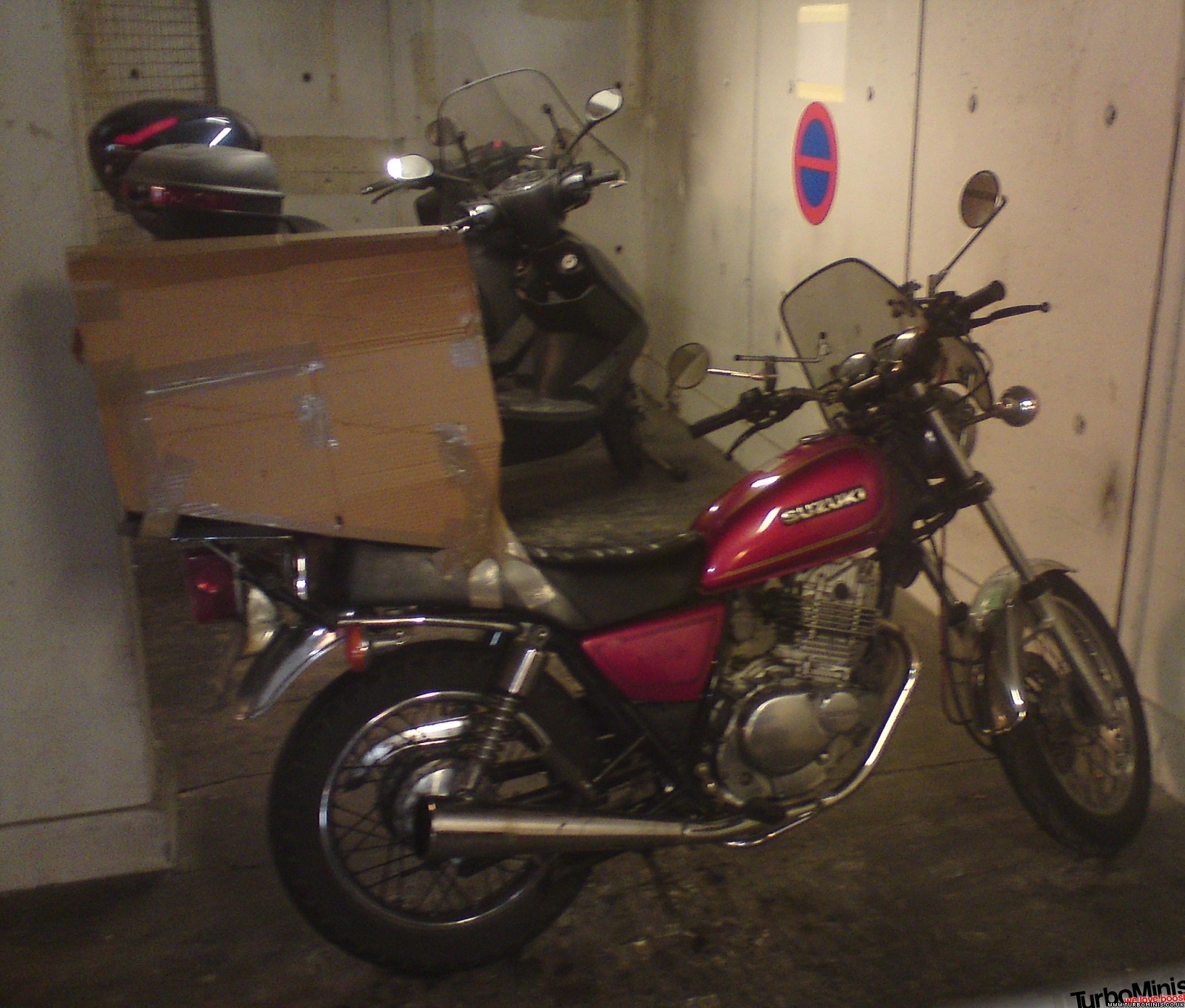

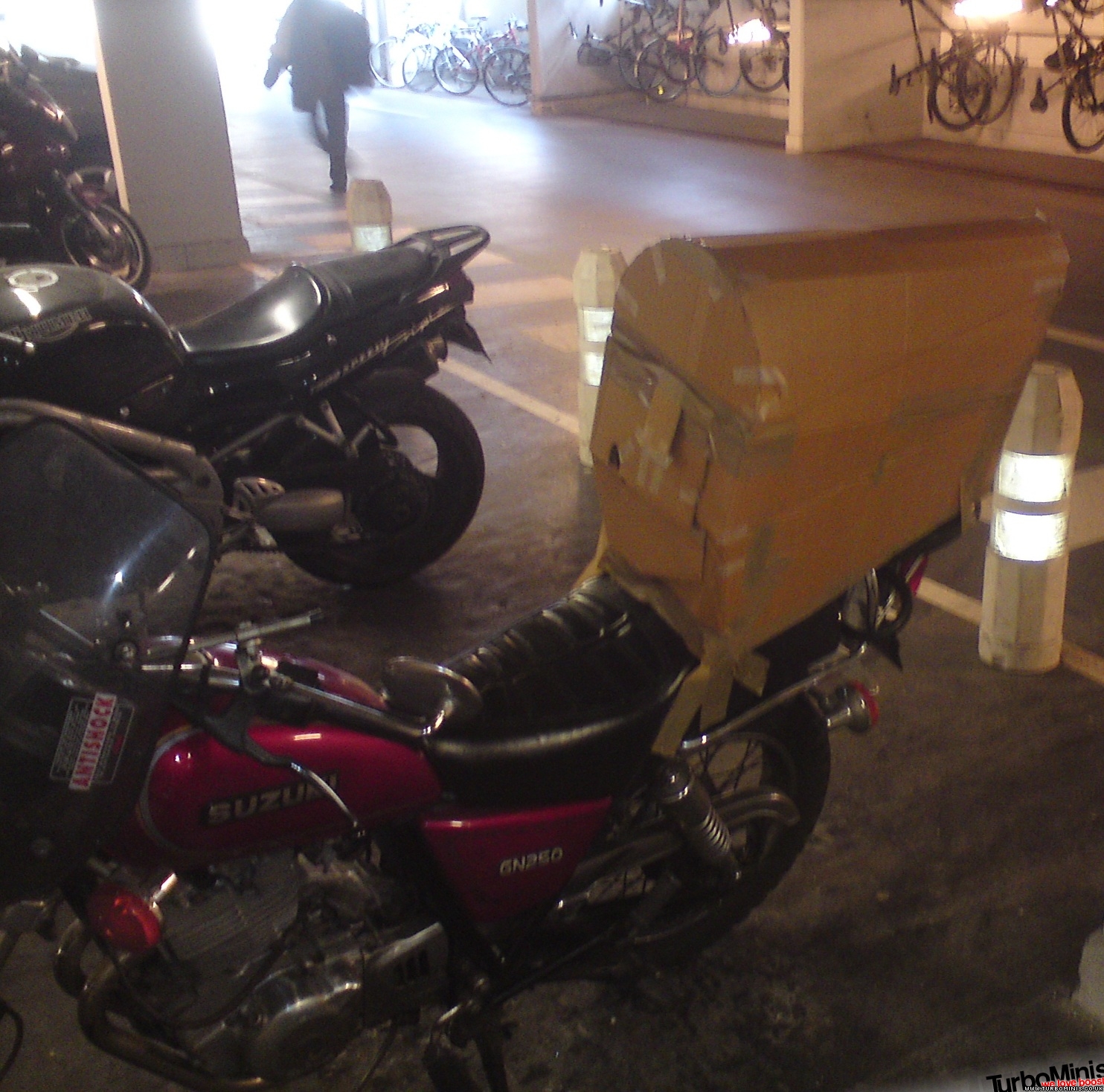

Here is a pic of the carboard Kammback :





the start is a little smaller than my back and little lower than my shoulders then it goes to the end along a 15° angle

Funny story : the pics were taken by an unknown colleague making fun of it and forwarded to me by one of his colleagues ...

It was the first evolution.
Since then I also put an angle on the horizontal line.

Last edited by renault_megane_dci; 05-14-2012 at 06:51 AM.. Reason: update on evolution
  Reply With Quote
Old 05-14-2012, 06:57 AM   #13 (permalink)
Master EcoModder

Join Date: Feb 2009
Location: France - Paris
Posts: 762

la_voiture_de_courses - '03 Renault Megane Estate
OldContinents
90 day: 44.34 mpg (US)

xiao lan - '01 Audi A2
90 day: 38.88 mpg (US)

Brit iron - '92 Mini Mini
90 day: 45.5 mpg (US)

Prius - '09 Toyota PRIUS Lounge
90 day: 47.37 mpg (US)

Beemer - '06 BMW F800 ST
90 day: 53.06 mpg (US)
Thanks: 188
Thanked 33 Times in 30 Posts
Quote:
Originally Posted by beatr911 View Post
If you are unsure which is better, please test three tanks of fuel with each set-up. Oh, and don't change anything else during those 6 tanks. Good testing takes time and conditions that isolate the change you are testing.
That would be a little over two month with the associated change in temperature from spring to summer !
So not really valuable on a testing POV.

The thing is I try to ride as less as possible.
After all, it is not only about MPG but also GPY : gallon per year
  Reply With Quote
Old 05-14-2012, 12:19 PM   #14 (permalink)
Master EcoModder

Join Date: Feb 2009
Location: France - Paris
Posts: 762

la_voiture_de_courses - '03 Renault Megane Estate
OldContinents
90 day: 44.34 mpg (US)

xiao lan - '01 Audi A2
90 day: 38.88 mpg (US)

Brit iron - '92 Mini Mini
90 day: 45.5 mpg (US)

Prius - '09 Toyota PRIUS Lounge
90 day: 47.37 mpg (US)

Beemer - '06 BMW F800 ST
90 day: 53.06 mpg (US)
Thanks: 188
Thanked 33 Times in 30 Posts
IT WORKS !

Today's high speed attempt did show +200 rpm and relevant speed increase on the clock !

The context :
since fitting the 16*39 sprockets (up from 15*42 IIRC) the bike was not able to hit its peak power in 5th @ 8500 rpm.

Friday I got 8000 rpm (with the raised wind shield and tucking)

Today with the cardboard kammback and not tucked to make it work properly, I got 8200 rpm on the same slightly downhill.

The start of the hi speed attempt is consistent since it is a speed camera ...

Maybe the air was hotter / more dry allowing for a better mixture (I run pretty lean being on E10) and the wind was more still (I don't recall).

Now the bike clearly shows its limits in terms of hi speed handling being very short and light but I can go round that (see my pic of the 17" rear wheel on longer swingarm)

Anyway, I am very pleased !
  Reply With Quote
Old 05-15-2012, 12:17 PM   #15 (permalink)
Master EcoModder

Join Date: Feb 2009
Location: France - Paris
Posts: 762

la_voiture_de_courses - '03 Renault Megane Estate
OldContinents
90 day: 44.34 mpg (US)

xiao lan - '01 Audi A2
90 day: 38.88 mpg (US)

Brit iron - '92 Mini Mini
90 day: 45.5 mpg (US)

Prius - '09 Toyota PRIUS Lounge
90 day: 47.37 mpg (US)

Beemer - '06 BMW F800 ST
90 day: 53.06 mpg (US)
Thanks: 188
Thanked 33 Times in 30 Posts
coast down test day

If weather allows, tomorrow is coast down test day to convince a colleague of mine that is rather skeptical.

I'll keep you posted !
  Reply With Quote
Old 05-16-2012, 10:53 AM   #16 (permalink)
Master EcoModder

Join Date: Feb 2009
Location: France - Paris
Posts: 762

la_voiture_de_courses - '03 Renault Megane Estate
OldContinents
90 day: 44.34 mpg (US)

xiao lan - '01 Audi A2
90 day: 38.88 mpg (US)

Brit iron - '92 Mini Mini
90 day: 45.5 mpg (US)

Prius - '09 Toyota PRIUS Lounge
90 day: 47.37 mpg (US)

Beemer - '06 BMW F800 ST
90 day: 53.06 mpg (US)
Thanks: 188
Thanked 33 Times in 30 Posts
coast down test

Today was coast down test day.

We rode to the "quiet back road" my colleague mentionned.
It was rather windy ...
So I went for a ride, trying to pass his parked car at 100 Km per hour, pulling the clutch and then cheking the speed at a distance, namely a sign on the side.

With the kammback : two attempt showed 62 ish Km per hour

Without the kammback, the bike was easier to maintain at speed (probably more throttle, maybe less wind) and I got a consistant 60 ish Km per hour.

Then I fitted the kammback back but we didn't do more attempts.

All in all : waste of gas ...

I don't know the distance from point A to point B either just the tiny difference in speed

Can I work out something out of it ?
  Reply With Quote
Old 05-16-2012, 03:58 PM   #17 (permalink)
EcoModding Apprentice

janvos39's Avatar

Join Date: Jan 2009
Location: Belgium
Posts: 159

jvsgears - '14 Skoda Octavia
Team m8
90 day: 52.47 mpg (US)
Thanks: 22
Thanked 38 Times in 28 Posts
The kinetic energy at 100 km/hr is 0.5*m*v*v and that is with a bike+rider of for instance 250 kg 0.5*250*27.77*27.77=96450 in both tests
This kinetic energy at 60 km/hr is 0.5*250*16.66*16.66=34722
So without the tail enengy consummed by air and roll resistance is 96450-34722=61728

Now with the tail. Energy left at 62 is 0.5-250*17.22*17.22=37076
So energy consummed in this case is 59374. (so approx. 4% less)
__________________
  Reply With Quote
The Following User Says Thank You to janvos39 For This Useful Post:
renault_megane_dci (05-17-2012)
Old 05-16-2012, 11:48 PM   #18 (permalink)
Master EcoModder

alvaro84's Avatar

Join Date: Jul 2010
Location: Fehérvárcsurgó, Hungary
Posts: 384

Teresa - '04 BMW F650CS
Motorcycle
90 day: 80.53 mpg (US)

The YARDIS - '99 Toyota Yaris 1.0
90 day: 59.52 mpg (US)
Thanks: 4
Thanked 11 Times in 10 Posts
Quote:
Originally Posted by renault_megane_dci View Post
Yeah ! I just noticed I am 6th in the motorcycle top 10 !
Yeah! I just noticed that there is a top 10 function at ecomodder

(Thanks for this one )
  Reply With Quote
Old 05-21-2012, 05:14 PM   #19 (permalink)
Master EcoModder

Join Date: Feb 2009
Location: France - Paris
Posts: 762

la_voiture_de_courses - '03 Renault Megane Estate
OldContinents
90 day: 44.34 mpg (US)

xiao lan - '01 Audi A2
90 day: 38.88 mpg (US)

Brit iron - '92 Mini Mini
90 day: 45.5 mpg (US)

Prius - '09 Toyota PRIUS Lounge
90 day: 47.37 mpg (US)

Beemer - '06 BMW F800 ST
90 day: 53.06 mpg (US)
Thanks: 188
Thanked 33 Times in 30 Posts
I have a lead on a set of clip ons !
Looking forward to it !
  Reply With Quote
Old 06-01-2012, 05:01 PM   #20 (permalink)
Master EcoModder

Join Date: Feb 2009
Location: France - Paris
Posts: 762

la_voiture_de_courses - '03 Renault Megane Estate
OldContinents
90 day: 44.34 mpg (US)

xiao lan - '01 Audi A2
90 day: 38.88 mpg (US)

Brit iron - '92 Mini Mini
90 day: 45.5 mpg (US)

Prius - '09 Toyota PRIUS Lounge
90 day: 47.37 mpg (US)

Beemer - '06 BMW F800 ST
90 day: 53.06 mpg (US)
Thanks: 188
Thanked 33 Times in 30 Posts
Rear tire being deader than dead, I will probably convert sooner than later to the 17" setup.

Anything on your mind about the conversion ?

  Reply With Quote
