Quote:
Originally Posted by aerohead View Post
For sure!
If you could seal as much of the gap between cab and box, that would also show. ( delta-Cd 0.016 on my pickup )
Also, extend the box sides down even with the bottom elevation of the running boards / step.
Wheel arches?
I'm actually looking at raising the steps or increasing tire size. This will not be a on-road only vehicle. I'm not looking for a rock-crawler but it needs to be handle forest service roads



M2 ambulances come standard with 19.5 inch wheels. I'll have to see what is required to fit 22.5 inch wheels. Nothing extreme like this truck


  Reply With Quote
The Following 2 Users Say Thank You to JSH For This Useful Post:
aerohead (07-21-2021), samwichse (07-21-2021)
Alt Today
Popular topics

Other popular topics in this forum...


Old 07-21-2021, 04:05 PM   #22 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 23,382
Thanks: 6,599
Thanked 7,460 Times in 6,083 Posts
That example would need an ogive curve that follows the sweep of the opening door and then goes convex at 4% of the overall width.
__________________
.
.

Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster
____________________

Not responsible for spelling until vBulletin's British-spelling leaning spell checker is fixed.
____________________
  Reply With Quote
Old 07-21-2021, 04:33 PM   #23 (permalink)
Human Environmentalist

redpoint5's Avatar

Join Date: Aug 2010
Location: Oregon
Posts: 10,388

Acura TSX - '06 Acura TSX
90 day: 28.24 mpg (US)

Lafawnda - '01 Honda CBR600 F4i
90 day: 47.32 mpg (US)

Big Yeller - '98 Dodge Ram 2500 base
90 day: 21.82 mpg (US)

Prius Plug-in - '12 Toyota Prius Plug-in
90 day: 57.64 mpg (US)

Mazda CX-5 - '17 Mazda CX-5 Touring
90 day: 28.06 mpg (US)

Chevy ZR-2 - '03 Chevrolet S10 ZR2
90 day: 17.14 mpg (US)
Thanks: 3,605
Thanked 3,866 Times in 2,909 Posts
Treat yourself to this



Seriously though, I'm getting excited for your retirement plans. Swing by and visit Silverton when you embark and I'll send some beers along for your travels.
__________________
Gas and Electric Vehicle Cost of Ownership Calculator







Give me absolute safety, or give me death!

Last edited by redpoint5; 07-21-2021 at 06:31 PM..
  Reply With Quote
The Following User Says Thank You to redpoint5 For This Useful Post:
aerohead (07-21-2021)
Old 07-21-2021, 07:27 PM   #24 (permalink)
JSH
AKA - Jason

JSH's Avatar

Join Date: May 2009
Location: PDX
Posts: 2,807

Adventure Seeker - '04 Chevy Astro - Campervan
90 day: 17.3 mpg (US)
Thanks: 226
Thanked 1,586 Times in 1,075 Posts
Quote:
Originally Posted by redpoint5 View Post
Treat yourself to this

$700K !!!! I could buy 6 rental houses with the difference in vehicle costs.


Quote:
Originally Posted by redpoint5 View Post
Seriously though, I'm getting excited for your retirement plans. Swing by and visit Silverton when you embark and I'll send some beers along for your travels.
Thanks. I do make it down that way every now and then but usually on short notice.
  Reply With Quote
Old 07-22-2021, 10:39 PM   #25 (permalink)
It's all about Diesel

cRiPpLe_rOoStEr's Avatar

Join Date: Oct 2012
Location: Porto Alegre, Rio Grande do Sul, Brazil
Posts: 11,203
Thanks: 0
Thanked 1,390 Times in 1,238 Posts
Quote:
Originally Posted by JSH View Post
$700K !!!! I could buy 6 rental houses with the difference in vehicle costs.
Everything seems to be more expensive when it's meant for motorhomes and campers.
  Reply With Quote
Old 07-23-2021, 11:06 AM   #26 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 14,525
Thanks: 22,541
Thanked 6,714 Times in 4,254 Posts
a look at Cd 0.38

https://ecomodder.com/forum/member-a...here-money.jpghttps://ecomodder.com/forum/member-a...nt-attacks.jpghttps://ecomodder.com/forum/member-a...-windkanal.jpghere's a link to a dated Mitsubishi box truck worth looking at. Some box truck at the time were near Cd 0.90.
https://ecomodder.com/forum/member-a...aero-truck.jpg
You can get away with murder at the front, but gaps are expensive, and transitions to the 'roof' need to be 'tuned'. You'll notice flow separation on the roof of the trailer van.
On the way to see the Dynaxion Car, at Harrah's Auto Museum, Reno, Nevada, I snapped this shot of leading-edge 2-D flow separation on a bridge abutment under a bridge over the Truckee River. It offers a clue as to aerodynamic challenges with 'hard' edges.
Finally, Hucho's iconic image of a squareback wake, which you'll never find used in nature.
Attached Thumbnails
Click image for larger version

Name:	member-aerohead-albums-other+vehicles+1-picture203-aero-truck.jpg
Views:	28
Size:	32.5 KB
ID:	31064   Click image for larger version

Name:	member-aerohead-albums-other+vehicles+1-picture147-freightliner-goes-germany-ride-mercedes-windk.jpg
Views:	29
Size:	43.5 KB
ID:	31065   Click image for larger version

Name:	member-aerohead-albums-aircraft+-+watercraft+-+spacecraft-picture241-bow-wake-forms-truckee-rive.jpg
Views:	43
Size:	37.3 KB
ID:	31071   Click image for larger version

Name:	member-aerohead-albums-other+vehicles+1-picture122-smoke-fills-wolfsburg-windtunnel-show-us-wher.jpg
Views:	37
Size:	34.6 KB
ID:	31072
__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/

Last edited by aerohead; 07-23-2021 at 12:50 PM.. Reason: add image
  Reply With Quote
Old 07-23-2021, 04:03 PM   #27 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 23,382
Thanks: 6,599
Thanked 7,460 Times in 6,083 Posts


We'll cheap out on the formwork for the abutment, but people can see the brackets so we'll make them Art Deco Streamlined.
__________________
.
.

Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster
____________________

Not responsible for spelling until vBulletin's British-spelling leaning spell checker is fixed.
____________________
  Reply With Quote
The Following User Says Thank You to freebeard For This Useful Post:
aerohead (07-23-2021)
Old 07-23-2021, 06:16 PM   #28 (permalink)
It's all about Diesel

cRiPpLe_rOoStEr's Avatar

Join Date: Oct 2012
Location: Porto Alegre, Rio Grande do Sul, Brazil
Posts: 11,203
Thanks: 0
Thanked 1,390 Times in 1,238 Posts
Quote:
Originally Posted by aerohead View Post
a dated Mitsubishi box truck worth looking at
And those forward-control trucks are quite harder to streamline than the average American truck with a conventional cab.
  Reply With Quote
Old 07-23-2021, 07:58 PM   #29 (permalink)
JSH
AKA - Jason

JSH's Avatar

Join Date: May 2009
Location: PDX
Posts: 2,807

Adventure Seeker - '04 Chevy Astro - Campervan
90 day: 17.3 mpg (US)
Thanks: 226
Thanked 1,586 Times in 1,075 Posts
Quote:
Originally Posted by aerohead View Post
A Freightliner FLD - that is step back in time! (Produced from 1987 - 2010) Freightliner's first "aerodynamic" truck build before Freightliner had their own wind tunnel.

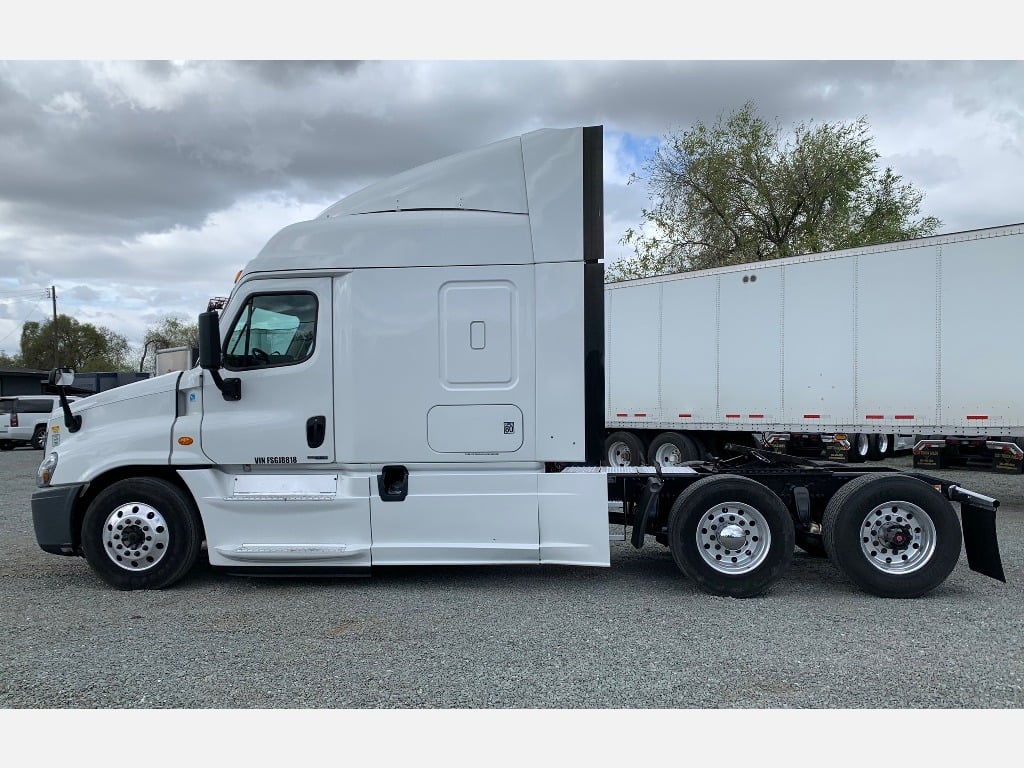

Which is part of the problem. Plenty of things that "look" like they should be aerodynamic aren't actually. For example you may think extending side fairings on a truck back to the rear wheels would be better than a short fairing. However, that isn't always the case. The early full wheel to wheel fairing on a Cascadia is less aerodynamic than the later model short fairing that stops even with the cab extenders.



  Reply With Quote
The Following 2 Users Say Thank You to JSH For This Useful Post:
E.Roy (05-11-2022), freebeard (07-23-2021)
Old 03-16-2022, 09:04 PM   #30 (permalink)
JSH
AKA - Jason

JSH's Avatar

Join Date: May 2009
Location: PDX
Posts: 2,807

Adventure Seeker - '04 Chevy Astro - Campervan
90 day: 17.3 mpg (US)
Thanks: 226
Thanked 1,586 Times in 1,075 Posts
Well - I have an ambulance.

2011 Chevy Express 4500 with the 6.6L Duramax and 6 speed auto.
110K miles / 4200 hours

Now I just have to get it home. (It is in North Carolina)



Attached Thumbnails
Click image for larger version

Name:	Ambulance.jpg
Views:	92
Size:	81.4 KB
ID:	31793
  Reply With Quote
The Following 2 Users Say Thank You to JSH For This Useful Post:
freebeard (03-16-2022), redpoint5 (03-17-2022)
