So, if we make super-long mirrors, our cars will be more aerodynamic?

  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 03-27-2015, 09:31 AM   #22 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 3,290
Thanks: 4
Thanked 2,092 Times in 1,475 Posts
Quote:
Originally Posted by Xist View Post
So, if we make super-long mirrors, our cars will be more aerodynamic?
A super long mirror would weigh more, obscure vision more and has diminishing returns based on speed. If you were going near supersonic speeds perhaps it would make sense to go much longer.

I like the idea of looking to what Porsche does as a leading indicator for what optimum length is might be a good one in my opinion.

I think we need to keep in mind that cars turn at speed in tighter circles than aircraft and boats. Some of our design consideration should for off angles or "cross wind" conditions. This means excessively long bodies and lengths may be a liability under some conditions.

Just my opinion.
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html

Last edited by kach22i; 03-27-2015 at 04:46 PM..
  Reply With Quote
The Following User Says Thank You to kach22i For This Useful Post:
aerohead (03-27-2015)
Old 03-27-2015, 03:26 PM   #23 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 9,920
Thanks: 14,798
Thanked 5,269 Times in 3,083 Posts
super-long

Quote:
Originally Posted by Xist View Post
So, if we make super-long mirrors, our cars will be more aerodynamic?
I think Kach22i has made a good list of 'practical' considerations for design.
Hucho would 'optimize' for a shape.As soon as a feature got drag to 'saturate,' he'd quit and move on to another feature.
*The mirror,1st of all,needs to provide the optical pathway we need for safe motoring.
*So the design needs to respect that.
*Manufacturers would target something like the 99th percentile for human factors in their design.
--------------------------------------------------------------------------
*I have notice that,say for Toyota,many of their side-view mirrors are identical in 'design',but scaled for each vehicle 'size' as if respecting that a pair of ears on a mouse should be proportioned like a pair of ears on a deer.
*The Echo mirror looks just like a Corolla,Camry,Avalon,Tacoma,T-100,and Tundra,but a smaller size,as if the human eye behaved differently from vehicle to vehicle.
* I might install Echo mirrors on the T-100 and have basically the same optical performance,but with a smaller frontal area (CdA).
*A random thought is about the CLA 180 M-B Blue-efficiency car.It's Cd 0.22 side mirrors are lower drag than the other CLA cars.Whatever they've done would be a tip off to us as far as low drag mirror tech.
*Also check out the new VOLT/Enclave/FIT/Cadillac CTS/BMW/Lexus............
__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/
  Reply With Quote
Old 03-28-2015, 09:55 AM   #24 (permalink)
EcoMod Proof of Concept

WD40's Avatar

Join Date: Mar 2008
Location: Chilliwack B.C. CANADA
Posts: 243

WD-40's Insight - '00 Honda Insight
Gen-1 Insights
Team Honda
90 day: 56.04 mpg (US)

WD-40's Mirage - '15 Mitsubushi Mirage ES
Mitsubishi
90 day: 46.05 mpg (US)
Thanks: 80
Thanked 84 Times in 44 Posts
super-long could look good..
http://img168.imageshack.us/img168/8461/garage2fb6.jpg
__________________
2000 Insight MT 106K Citrus A/C
  Reply With Quote
The Following 2 Users Say Thank You to WD40 For This Useful Post:
aerohead (03-28-2015), Cd (03-29-2015)
Old 03-28-2015, 01:47 PM   #25 (permalink)
EcoModding Lurker

calfianu's Avatar

Join Date: Jun 2011
Location: Italy
Posts: 49
Thanks: 0
Thanked 18 Times in 13 Posts
Send a message via Yahoo to calfianu
WD40 ... you know, each time when I was drawing a car, I felt this is the only way the mirrors should be designed. Integrated. We've seen this idea applied on many vehicles, but the latest with high aerodynamic performance gave up this idea. From aesthetic point of view, this approach is my only choice. And, if the future will bring cameras in the place of mirrors, I would integrate them in the same way.
  Reply With Quote
Old 03-29-2015, 02:42 AM   #26 (permalink)
Master EcoModder

Join Date: Jan 2012
Location: United States
Posts: 1,258

spyder2 - '00 Toyota MR2 Spyder
Thanks: 77
Thanked 208 Times in 155 Posts
I think we need more pictures.

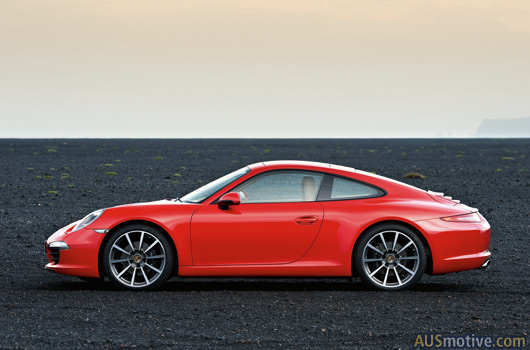

As you can see, if you took the windshield's curvature and extended it a few inches to the side of the car, that's about where Porsche's mirrors start, the shape is like a "bullet" that goes back and is cut off at the place where the driver expects to see a mirror out the window.

Compare to the new Corolla:

A blunt, flat angled rectangle shape. A few inches shorter overall.

I wonder, how might one add length to the front of that Porsche mirror without increasing interference drag? Maybe extend the "bullet nose" forward and curve it in a little?

The Lexus LFA has really wild looking mirrors and they claimed it helps aerodynamics, but they're about as long as the Porsche mirrors:

I think the Nissan GTR also supposedly had aerodynamically tuned mirrors:

Also short and stubby!

Finally, the McLaren P1, a car that supposedly had every body detail carefully designed:


Looks a lot like the Porsche mirror!

Last edited by serialk11r; 03-29-2015 at 02:52 AM..
  Reply With Quote
The Following 2 Users Say Thank You to serialk11r For This Useful Post:
aerohead (03-31-2015), BamZipPow (03-29-2015)
Old 03-29-2015, 04:45 AM   #27 (permalink)
EcoModding Lurker

calfianu's Avatar

Join Date: Jun 2011
Location: Italy
Posts: 49
Thanks: 0
Thanked 18 Times in 13 Posts
Send a message via Yahoo to calfianu
with an ordinary shape this W124 Mercedes has a Cx=0.28.

Same for Opel Vectra B2:

While the 0.26 Opel Calibra has half "integrated" mirror (the mount side), leaving half "separated".
  Reply With Quote
The Following User Says Thank You to calfianu For This Useful Post:
aerohead (03-31-2015)
Old 03-29-2015, 06:19 AM   #28 (permalink)
EcoModding Lurker

calfianu's Avatar

Join Date: Jun 2011
Location: Italy
Posts: 49
Thanks: 0
Thanked 18 Times in 13 Posts
Send a message via Yahoo to calfianu
Reading aerohead's observation about "base pressure" another idea (hopefully the last one)regarding the reduction of the drag of these mirrors. I am not sure I got the right understanding about "base pressure", but these movies will explain the idea better than words. In few words is about a mirror that becomes "porous" or "permeable" to avoid a low pressure area formed on the reflexive element.



Last edited by calfianu; 03-29-2015 at 07:05 AM..
  Reply With Quote
The Following User Says Thank You to calfianu For This Useful Post:
aerohead (03-31-2015)
Old 03-29-2015, 06:15 PM   #29 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 12,936
Thanks: 3,139
Thanked 4,253 Times in 3,377 Posts
What's the premise? One seems to be a flat plate in a cup, and the others—segmented mirror elements with air gaps? I don't see how the air is introduced.

And how do you generate the [hexidecimal?] number to name the videos?
  Reply With Quote
Old 03-30-2015, 06:02 AM   #30 (permalink)
Master EcoModder

Join Date: Jan 2012
Location: United States
Posts: 1,258

spyder2 - '00 Toyota MR2 Spyder
Thanks: 77
Thanked 208 Times in 155 Posts
Quote:
Originally Posted by freebeard View Post
What's the premise? One seems to be a flat plate in a cup, and the others—segmented mirror elements with air gaps? I don't see how the air is introduced.

And how do you generate the [hexidecimal?] number to name the videos?
I think the air is introduced through a hole at the front.

In rain, I would imagine the spray of water coming out the mirror gaps to make them impossible to see?

  Reply With Quote
The Following User Says Thank You to serialk11r For This Useful Post:
aerohead (03-31-2015)
