Lurking RX7 Streamliner
Edit: See updated photos of new cover design and paint job on page 3/4

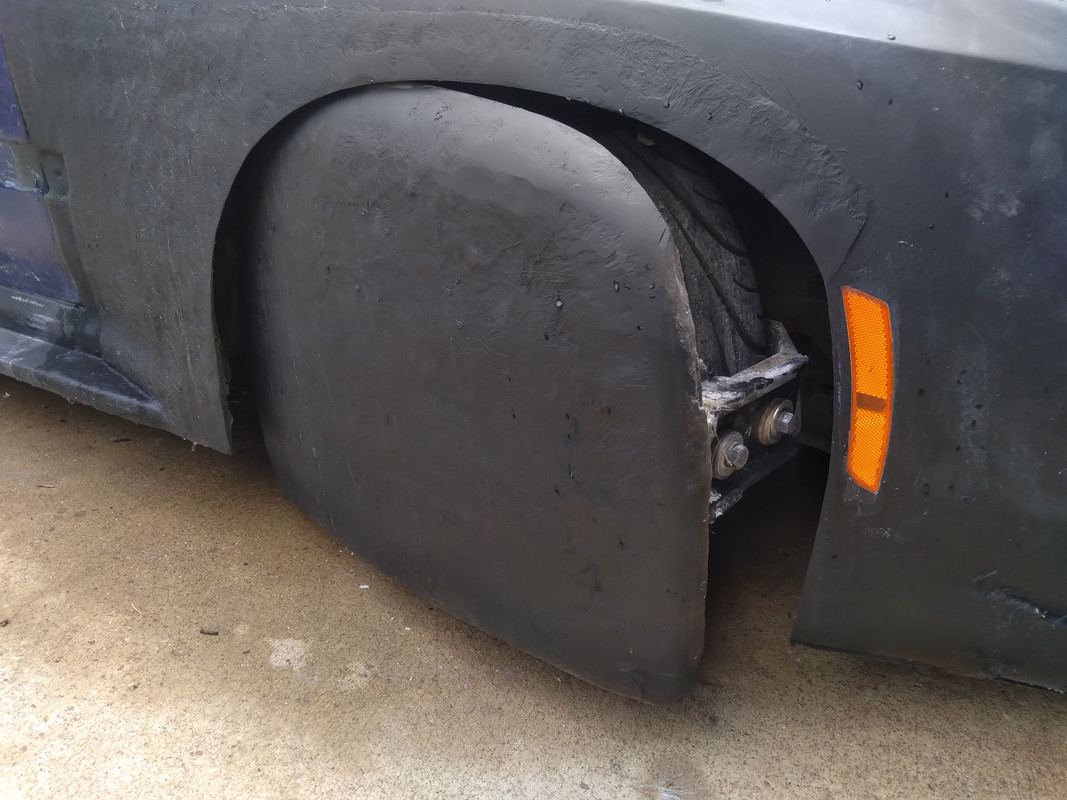

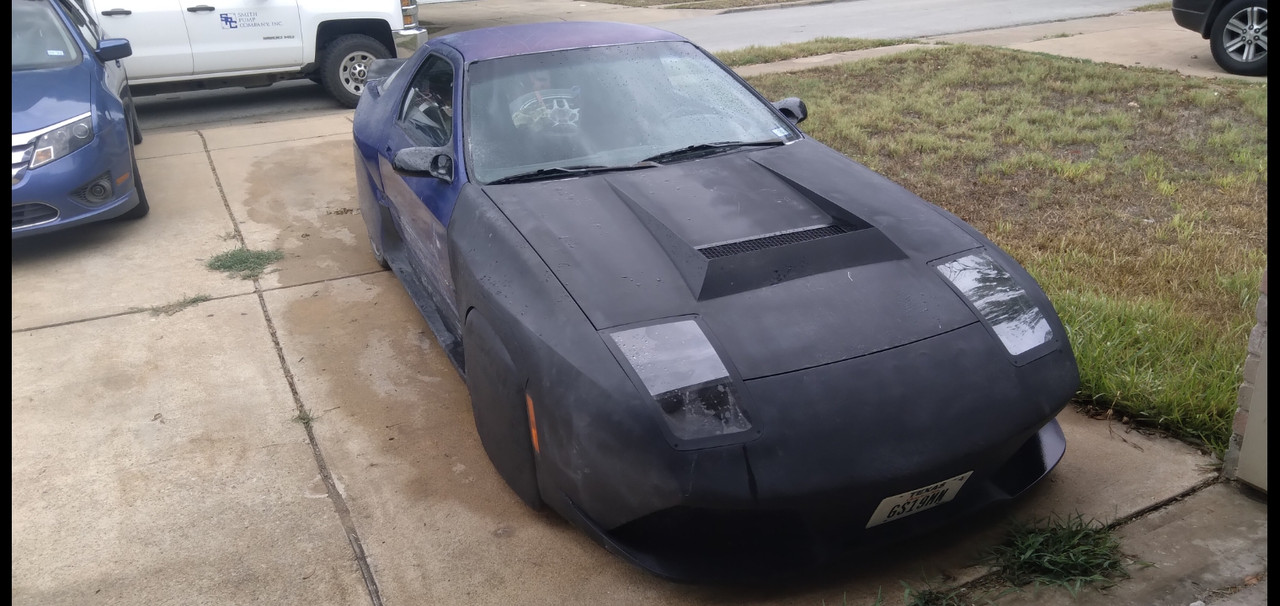

I've always been into streamliners... mostly for speed, but I'm addicted to browsing the aero section of this site. Been doing some aero mods to my RX7. I'm working on some front wheel well covers now. They are attached to the knuckles, so they move with the steering. Took a few pics of them just roughed out in fiberglass.
Last edited by C4Evermore; 04-16-2024 at 07:27 PM..
|
|
|
The Following 5 Users Say Thank You to C4Evermore For This Useful Post:
|
|
Today
|
|
|
Other popular topics in this forum...
|
|
|
10-07-2022, 10:24 PM
|
#2 (permalink)
|
Master EcoModder
Join Date: Aug 2012
Location: northwest of normal
Posts: 28,687
Thanks: 8,143
Thanked 8,922 Times in 7,365 Posts
|
Interesting is there any second point of attachement?
__________________
.
.Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster
____________________
.
.Three conspiracy theorists walk into a bar --You can't say that is a coincidence.
|
|
|
The Following User Says Thank You to freebeard For This Useful Post:
|
|
10-07-2022, 11:01 PM
|
#3 (permalink)
|
EcoModding Lurker
Join Date: Jan 2022
Location: Austin, TX
Posts: 23
Thanks: 10
Thanked 34 Times in 15 Posts
|
Yep, the cover is attached to the bracket in front of the wheel. Maybe down the road I will refine and do a 2.0 build, but I'll use the current design for a while.
Here is a shot of the initial mock up, it's a mess here...

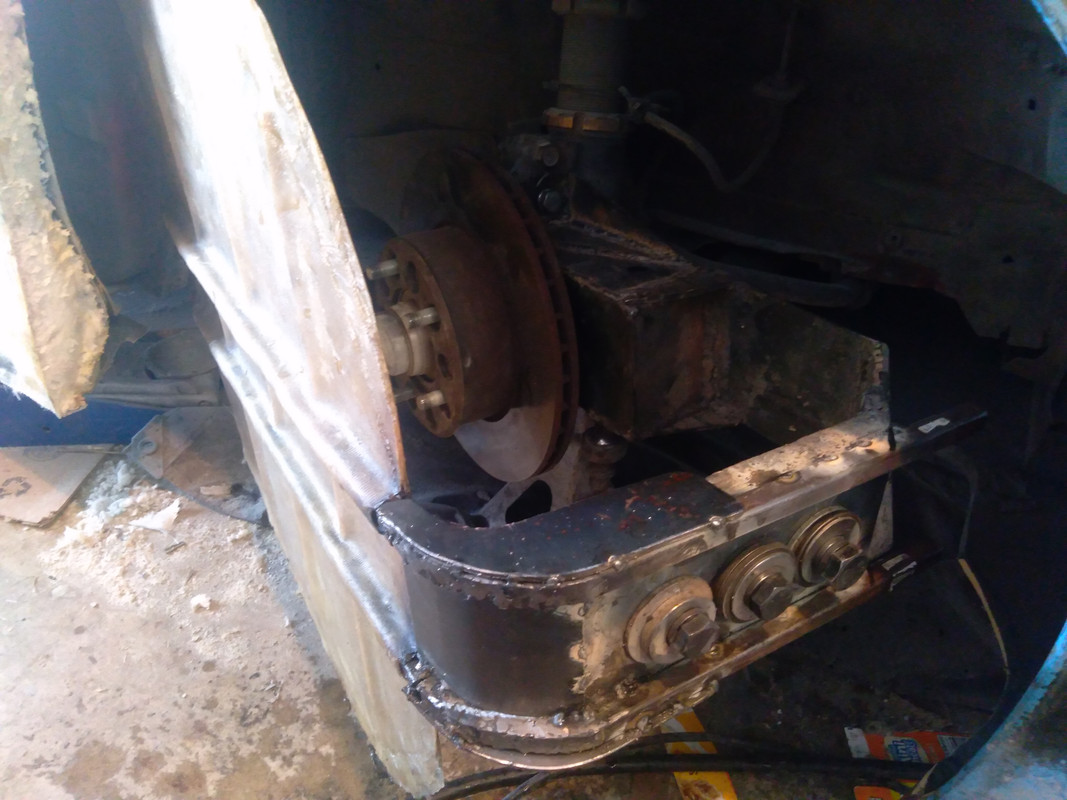

This is the only shot I took of the bracket that attaches to the knuckle... the second one was a lot cleaner
|
|
|
