Canopy drag

I expanded and modified a graphic for canopy drag published in Goro Tamai's "THE LEADING EDGE".
What's unique about the data concerns 'reversed' bodies.Since 1974 I've seen less than a handful of images depicting drag measurements of 'reversed' teardrops.They're dramatic in that the significance of losing the boat tail really shows up no matter how slick the nose is.
All seven images,when viewed from above (plan view)are teardrops,with aft-body plan-taper to a point.
All Cds are approximations,as they vary as a function of where they're positioned on a body,and the quality of the boundary layer at any given location.The numbers were generated in MIT's wind tunnel.

Here is a drag table for aircraft canopies from Hoener's book,'AERODYNAMIC DRAG',

Here are some armaments enclosures:

__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/

Last edited by aerohead; 02-19-2014 at 07:05 PM.. Reason: add 2nd Hoerner table
  Reply With Quote
The Following 3 Users Say Thank You to aerohead For This Useful Post:
BamZipPow (02-23-2014), Cobb (02-14-2014), sendler (07-09-2014)
Alt Today
Popular topics

Other popular topics in this forum...


Old 02-14-2014, 06:54 PM   #2 (permalink)
(:

Frank Lee's Avatar

Join Date: Jan 2008
Location: up north
Posts: 12,322

Blue - '93 Ford Tempo
Last 3: 27.29 mpg (US)

F150 - '94 Ford F150 XLT 4x4
90 day: 18.5 mpg (US)

Sport Coupe - '92 Ford Tempo GL
Last 3: 69.62 mpg (US)

ShWing! - '82 honda gold wing Interstate
90 day: 33.65 mpg (US)

Moon Unit - '98 Mercury Sable LX Wagon
90 day: 21.24 mpg (US)
Thanks: 1,440
Thanked 3,139 Times in 1,990 Posts
Hmmm, what does the clear advantage Shape 1 enjoys over Shapes 2 and 3 say about the unimportance of the leading edge shape?
__________________


  Reply With Quote
The Following 3 Users Say Thank You to Frank Lee For This Useful Post:
aerohead (02-14-2014), CFECO (02-14-2014), chumly (02-15-2014)
Old 02-14-2014, 07:27 PM   #3 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 9,244
Thanks: 12,964
Thanked 4,864 Times in 2,797 Posts
advantage

Quote:
Originally Posted by Frank Lee View Post
Hmmm, what does the clear advantage Shape 1 enjoys over Shapes 2 and 3 say about the unimportance of the leading edge shape?
The numbers are what they are.What the automakers will say,including Hucho,is that we'd never be able to see out of it due to internal reflections.With safety vehicles fore and aft on a race course we might be able to suffer through,but for a daily driver it looks like a non-starter.
If we try to use the shape for a body,it's impossibly long and with no ramp clearance.It can't be altered in any way without sacrificing the 0.045.
Oskar Teitgens got Cd 0.08 out of a self-propelled passenger rail car in 1933 or so with a body kinda like this.
__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/
  Reply With Quote
Old 02-14-2014, 09:13 PM   #4 (permalink)
.

Join Date: Dec 2011
Location: The Berkshires, Massachussetts
Posts: 880

Ruby Sparks - '01 Honda Insight
Team Honda
90 day: 64.27 mpg (US)
Thanks: 110
Thanked 352 Times in 198 Posts
I was a little bugged that the only image of this railcar was a tiny drawing (second Image). So I did some digging and found this patent (first Image) from 1932 which does not mention Oskar. I believe its one and the same though, only the nose appears to be missing in side view to show the underworkings of the engine.
Patent US2051073 - Rail car - Google Patents

__________________
I try to be helpful. I'm not an expert.
  Reply With Quote
The Following 2 Users Say Thank You to sheepdog 44 For This Useful Post:
aerohead (02-19-2014), Xist (02-14-2014)
Old 02-15-2014, 04:22 PM   #5 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 3,003
Thanks: 3
Thanked 1,897 Times in 1,336 Posts
Quote:
Originally Posted by aerohead View Post
All seven images,when viewed from above (plan view)are teardrops,with aft-body plan-taper to a point.
A 3D illustration of these shapes would be interesting, be it unnatural for some.

Quote:
Originally Posted by Frank Lee View Post
Hmmm, what does the clear advantage Shape 1 enjoys over Shapes 2 and 3 say about the unimportance of the leading edge shape?
Unimportance?

I don't want the aero-template shape which is without a canopy to be confused with these studies, do you? I just want to take a moment to clarify and avoid false or inaccurate transference of old quotes to these unique conditions.

The only previous discussions I recall on canopies have dealt with the length ratio being doubled from the aero-template 5:1 to an elongated 10:1 (length/width).

There have been many warnings by Aerohead about intersecting planes and their unpredictability on the final outcome regarding canopies and wheel bulges/blisters.

I'm going to assume no fillet or rounded corners with these canopies illustrated , plus they are on a flat plane or deck - similar to some solar cars.

Symmetrical blisters are certainly in the minority, how long has this data been out there?

Example below of a WWII cannon blister (like a canopy on a flat plane).
Spitfire Vc by Ian Robertson (Tamiya 1/48)


Below, very large plane fillets and closer to being symmetrical than the cannon blister above.

XB-17 blister turret (pre-WWII)
http://commons.wikimedia.org/wiki/Fi...ter_turret.jpg

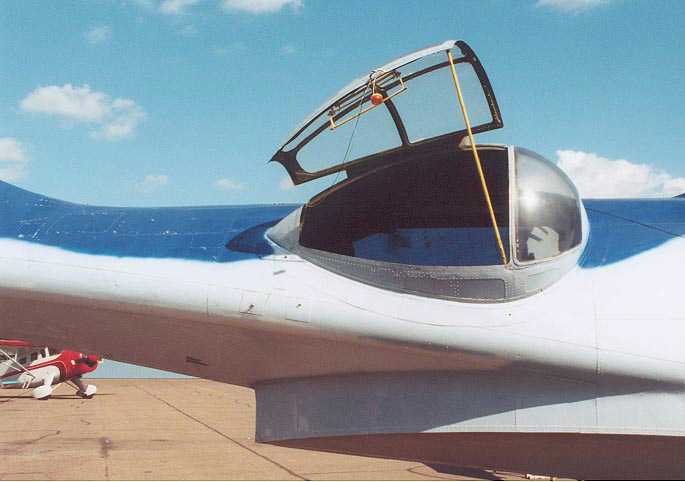

A slightly older blister than the other two above - from a PBY seaplane.
http://www.warbirdphotographs.com/WBP/f2k1.htm


The F-16 glass canopy and nose blister (early/mid 1970's) are different from each other. The glass being more symmetrical, the small blister half of our aero-template?
http://commons.wikimedia.org/wiki/Fi...e_20110813.jpg


All of the F-18 canopy (below) and multiple blisters (early/mid 1970's) are close to symmetrical. Click on link for greater detail. Many of these blisters could have been applied to later variants of the craft, thereby illustrating a knowledge of systematical blisters as being more aerodynamic.
http://texasmilitaryaviationjournal....liance_13.html


Later jet aircraft just don't have blisters, not very stealthy. I'm sure there are exceptions and retrofitted equipment which may lead to evidence of an information base.
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html

Last edited by kach22i; 02-15-2014 at 04:55 PM..
  Reply With Quote
The Following 2 Users Say Thank You to kach22i For This Useful Post:
aerohead (02-19-2014), mort (02-15-2014)
Old 02-22-2014, 04:05 PM   #6 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 9,244
Thanks: 12,964
Thanked 4,864 Times in 2,797 Posts
fillets / how long

The drag reported is for the images as depicted,and the only canopy with 'fillets' is the top image with its reflexed contour.The solar teams might place the canopy within the 1st 30% of body length where the boundary layer was minimal in thickness and they'd have a shot at laminar boundary layer there.
The fillet would address 'junction' drag and associated hook vortices which can form at this intersection between canopy and body.If you look at the canopy for the 1957 MG EX 181 Cd 0.12 land speed record car,you'll notice the fillets at the base of the canopy to address the hook-vortice junction drag.
Junction drag is addressed by Tamai in a different section and he cites Hoerner's work in this area.
----------------------------------------------------------------------------The time period would be from before 1995,when Tamai and team mates were conducting wind tunnel tests to determine their MIT plan of attack on drag.
__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/
  Reply With Quote
Old 07-07-2014, 04:51 PM   #7 (permalink)
EcoModding Lurker

betasniper's Avatar

Join Date: Feb 2013
Location: California
Posts: 79

Edward - '97 Saturn SW2
Team Saturn
90 day: 27.28 mpg (US)

Silver Civic - '13 Honda Civic EX
Team Honda
90 day: 30.98 mpg (US)

Red - '01 Honda Insight CVT
Gen-1 Insights
House of Tudor
Team Honda
90 day: 57.34 mpg (US)

Civic Hybrid - '12 Honda Civic Hybrid
Team Honda
Thanks: 6
Thanked 48 Times in 23 Posts

Is this right? It is the first profile shape with a NACA 0040 plan.
Attached Thumbnails
Click image for larger version

Name:	Blister 1.png
Views:	338
Size:	25.6 KB
ID:	15331
__________________

: Brothers
: Dad's
  Reply With Quote
The Following User Says Thank You to betasniper For This Useful Post:
aerohead (07-07-2014)
Old 07-07-2014, 06:58 PM   #8 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 9,244
Thanks: 12,964
Thanked 4,864 Times in 2,797 Posts
0040

What do we know about this profile?
__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/
  Reply With Quote
Old 07-07-2014, 07:15 PM   #9 (permalink)
EcoModding Lurker

betasniper's Avatar

Join Date: Feb 2013
Location: California
Posts: 79

Edward - '97 Saturn SW2
Team Saturn
90 day: 27.28 mpg (US)

Silver Civic - '13 Honda Civic EX
Team Honda
90 day: 30.98 mpg (US)

Red - '01 Honda Insight CVT
Gen-1 Insights
House of Tudor
Team Honda
90 day: 57.34 mpg (US)

Civic Hybrid - '12 Honda Civic Hybrid
Team Honda
Thanks: 6
Thanked 48 Times in 23 Posts
Whoops, 0039
__________________

: Brothers
: Dad's
  Reply With Quote
The Following User Says Thank You to betasniper For This Useful Post:
aerohead (07-08-2014)
Old 07-08-2014, 03:01 PM   #10 (permalink)
...beats walking...

Join Date: Jul 2009
Location: .
Posts: 6,191
Thanks: 179
Thanked 1,517 Times in 1,120 Posts
...gradually perturb the air, followed by gradually un-perturbing the air.

...ease into, ease out of...

  Reply With Quote
The Following User Says Thank You to gone-ot For This Useful Post:
aerohead (07-08-2014)
