hitches for bike trailer

Since my last post I have been doing some experimenting with different hitches for the bike trailer I built to carry 2 x 12v SLA batteries for my front hub driven mtb.

I had been quite excited by the idea of an air hose coupling combined with a castor wheel mount on the LH chain stay and did indeed make a mounting plate up and got it all working. HOWEVER, I am sad to say the castor and mount were not up to the strain and quite quickly distorted.
I have since refined the idea somewhat and have gone to a ratchet-set half-inch universal suitably modifed to fit into the rear of the air hose coupling, one half of which is held with a single bolt to a light steel trunnion mounted on the back axle and also screwed to one of the spare dropout accessory fixing holes with an allen screw. This rig allows movement in three planes (2 on the universal and a twisting one on the air hose coupling) to give full articulation and seems to work very well. The attached photo gives some idea. The eyebolt is for a safety chain and the threaded rod seen is an extra stay to give some rigidity.

Attached Thumbnails
Click image for larger version

Name:	universal.jpg
Views:	392
Size:	79.7 KB
ID:	3148
  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 04-09-2009, 10:01 PM   #2 (permalink)
EV OR DIESEL

Join Date: Dec 2007
Location: South Louisiana
Posts: 1,724

FarFarfrumpumpen - '03 Volkswagen Jetta Wagon GLS Premium

Quorra - '12 Tesla Model S P85
Thanks: 55
Thanked 95 Times in 75 Posts
Send a message via AIM to dremd
Does your trailer have 1 wheel or 2?

The kids bike trailer have a spring rather than the U-joint works surprisingly well. The coupler is a drilled rod on the bike end and a drilled pipe on the trailer side to attach you insert a pin through both of them.

I hope that helps you some.
__________________
2012 Tesla Model S P85
2013 Nissan LEAF SV totaled by now deceased intoxacated driver.
2012 Nissan LEAF SV
6 speed ALH TDI Swapped in to a 2003 Jetta Wagon
  Reply With Quote
Old 04-09-2009, 10:09 PM   #3 (permalink)
Batman Junior

MetroMPG's Avatar

Join Date: Nov 2007
Location: 1000 Islands, Ontario, Canada
Posts: 21,309

Blackfly - '98 Geo Metro
Team Metro
Last 3: 70.09 mpg (US)

MPGiata - '90 Mazda Miata
90 day: 52.8 mpg (US)

Winter beater Metro - '00 Chevrolet Metro
90 day: 73.57 mpg (US)

Fancy Metro - '14 Mitsubishi Mirage top spec
90 day: 58.53 mpg (US)
Thanks: 3,084
Thanked 5,963 Times in 3,088 Posts
I used the spring approach on my DIY trailer. It's worked perfectly for 3 seasons of use.

I've beat it up too. Loaded the trailer with so much junk one ride that I bent the "arm" that goes to the hitch.

I've also flipped the trailer (empty) several times, bombing around bumpy corners, or jumping off curbs. No problem!

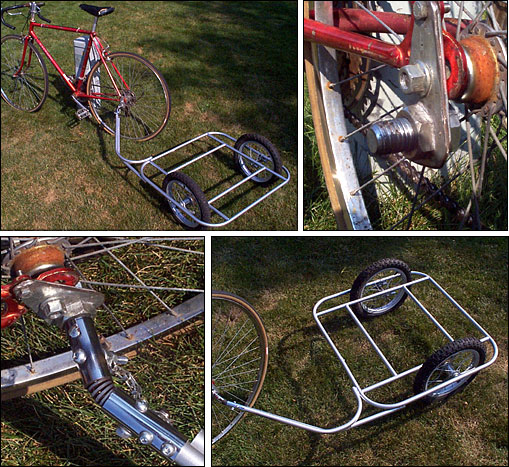

http://www.metrompg.com/posts/bike-trailer.htm


__________________
Latest mods test: 15 mods = 15% MPG improvement: A-B test, 2007 Honda Civic 1.8L, 5-speed
Ecodriving test:
Manual vs. automatic transmission MPG showdown: Nissan Micra 1.6L



EcoModder
has launched a forum for the efficient new Mitsubishi Mirage
www.MetroMPG.com - fuel efficiency info for Geo Metro owners
www.ForkenSwift.com - electric car conversion on a beer budget
  Reply With Quote
Old 04-09-2009, 10:12 PM   #4 (permalink)
Batman Junior

MetroMPG's Avatar

Join Date: Nov 2007
Location: 1000 Islands, Ontario, Canada
Posts: 21,309

Blackfly - '98 Geo Metro
Team Metro
Last 3: 70.09 mpg (US)

MPGiata - '90 Mazda Miata
90 day: 52.8 mpg (US)

Winter beater Metro - '00 Chevrolet Metro
90 day: 73.57 mpg (US)

Fancy Metro - '14 Mitsubishi Mirage top spec
90 day: 58.53 mpg (US)
Thanks: 3,084
Thanked 5,963 Times in 3,088 Posts
(deleted duplicate post)
__________________
Latest mods test: 15 mods = 15% MPG improvement: A-B test, 2007 Honda Civic 1.8L, 5-speed
Ecodriving test:
Manual vs. automatic transmission MPG showdown: Nissan Micra 1.6L



EcoModder
has launched a forum for the efficient new Mitsubishi Mirage
www.MetroMPG.com - fuel efficiency info for Geo Metro owners
www.ForkenSwift.com - electric car conversion on a beer budget
  Reply With Quote
Old 04-09-2009, 10:17 PM   #5 (permalink)
EV OR DIESEL

Join Date: Dec 2007
Location: South Louisiana
Posts: 1,724

FarFarfrumpumpen - '03 Volkswagen Jetta Wagon GLS Premium

Quorra - '12 Tesla Model S P85
Thanks: 55
Thanked 95 Times in 75 Posts
Send a message via AIM to dremd
Very cool Metro

The only difference between metro's approach and the commercial approach is that the commercial bike side "hitch" is turned rearward at about 45deg to straighten things out.
__________________
2012 Tesla Model S P85
2013 Nissan LEAF SV totaled by now deceased intoxacated driver.
2012 Nissan LEAF SV
6 speed ALH TDI Swapped in to a 2003 Jetta Wagon
  Reply With Quote
Old 04-09-2009, 10:52 PM   #6 (permalink)
dcb
needs more cowbell

dcb's Avatar

Join Date: Feb 2008
Location:
Posts: 5,038

pimp mobile - '81 suzuki gs 250 t
90 day: 96.29 mpg (US)

schnitzel - '01 Volkswagen Golf TDI
90 day: 53.56 mpg (US)
Thanks: 158
Thanked 267 Times in 210 Posts
I've heard of situations where the local officials treat electric bike and 2-wheel trailer as a 4 wheeled vehicle (i.e. car) and get in a twist about this and that.

I've got one of these in the garage, am thinking about hacking up the under parts and sling a couple trolling batteries under the beam and put the motor(s) on it, and do a flatbed thing over the top of it. Just need control wires to the bike.

The trailer pushing on the seat post might take some getting used to but I think I can manage.
__________________
WINDMILLS DO NOT WORK THAT WAY!!!

Last edited by dcb; 04-10-2009 at 10:10 AM..
  Reply With Quote
Old 04-10-2009, 01:01 AM   #7 (permalink)
EcoModding Apprentice

QuickLTD's Avatar

Join Date: Apr 2009
Location: Tampa, Florida
Posts: 188

Flying Brick - '96 Pontiac Bonneville SE
90 day: 23.57 mpg (US)
Thanks: 1
Thanked 15 Times in 8 Posts
Send a message via AIM to QuickLTD Send a message via Yahoo to QuickLTD
Hi,
First post here. There is a guy near me who mounted a small gas motor (unsure of the HP) to a hand truck to his bike. it was high mounted similar to the bike shown in this post. He uses a rubber wheel off the driveshaft/gearbox as a friction drive for the pneumatic wheels on the hand truck. He had the engine set up like a lawn mower with only a deadman switch and no throttle cable. I know it's still powered by gasoline but im sure similar yet safer system can be done with an electric motor and batteries.
  Reply With Quote
Old 04-10-2009, 01:22 AM   #8 (permalink)
dcb
needs more cowbell

dcb's Avatar

Join Date: Feb 2008
Location:
Posts: 5,038

pimp mobile - '81 suzuki gs 250 t
90 day: 96.29 mpg (US)

schnitzel - '01 Volkswagen Golf TDI
90 day: 53.56 mpg (US)
Thanks: 158
Thanked 267 Times in 210 Posts
LOL, sounds like the catfood hauler (from The post your trailer thread. - Bike Forums )
__________________
WINDMILLS DO NOT WORK THAT WAY!!!
  Reply With Quote
Old 04-10-2009, 02:17 AM   #9 (permalink)
EcoModding Apprentice

order99's Avatar

Join Date: Oct 2008
Location: Newport NC
Posts: 236
Thanks: 7
Thanked 39 Times in 21 Posts
One of the simplest and cheapest hitches i've ever seen-a thin metal cover for an electrical junction box, about the size of a lightswitch cover. Nick the top and bottom with a file at the center mark, fold in half and seal with some JB Cold Weld. After it's cured, drill a hole to attach to the wheel bolt and a smaller hole beneath for a bolt-in Eye hook. Use a clip-on hook to attach the trailer arm to the Eye and you're done! Cost-about $2 for the cover, bolts and hooks.

I wish I could say it was my idea, but I ripped it off this website:

Instructables - Make, How To, and DIY

I've never seen more Bike Trailer designs-and different mounting methods-before in my life!
