Old 10-25-2011, 12:14 PM   #151 (permalink)
Drive less save more

ecomodded's Avatar

Join Date: Jul 2011
Location: Vancouver Island, Canada
Posts: 1,189

Dusty - '98 VOLKSWAGEN Beetle TDI
TEAM VW AUDI Group
90 day: 60.42 mpg (US)
Thanks: 134
Thanked 162 Times in 135 Posts
I have a roof spoiler on my new beetle, I have deduced this, having the air flow detach above the window not only reduces drag caused by lift but reduces the drag caused by air that no longer passes over the rear window and trunk = Less surface area in the airflow and in the Beetles case less lift.
My car below

Attached Thumbnails
Click image for larger version

Name:	summer2 031.jpg
Views:	89
Size:	48.6 KB
ID:	9648   Click image for larger version

Name:	summer2 032.jpg
Views:	96
Size:	29.9 KB
ID:	9649
__________________
Save gas
Ride a Mtn bike for errands exercise entertainment and outright fun
__________________



  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 10-25-2011, 12:48 PM   #152 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 4,179
Thanks: 127
Thanked 2,802 Times in 1,968 Posts
Quote:
Originally Posted by ecomodded View Post
My car below
Nice car.

Another, more detailed study.

Automobile pictures by kach22i - Photobucket
__________________
George
Architect, Artist and Designer of Objects

2012 Infiniti G37X Coupe
1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

You cannot sell aerodynamics in a can............
  Reply With Quote
Old 10-25-2011, 02:13 PM   #153 (permalink)
Quasi-Modder

Join Date: May 2010
Location: DeForest, Wisconsin
Posts: 144
Thanks: 23
Thanked 25 Times in 12 Posts
This post by Phil is right on this subject http://ecomodder.com/forum/showthrea...lips-2685.html
  Reply With Quote
Old 10-25-2011, 03:18 PM   #154 (permalink)
(:

Frank Lee's Avatar

Join Date: Jan 2008
Location: up north
Posts: 12,762

Blue - '93 Ford Tempo
Last 3: 27.29 mpg (US)

F150 - '94 Ford F150 XLT 4x4
90 day: 18.5 mpg (US)

Sport Coupe - '92 Ford Tempo GL
Last 3: 69.62 mpg (US)

ShWing! - '82 honda gold wing Interstate
90 day: 33.65 mpg (US)

Moon Unit - '98 Mercury Sable LX Wagon
90 day: 21.24 mpg (US)
Thanks: 1,585
Thanked 3,555 Times in 2,218 Posts
Quote:
Originally Posted by kach22i View Post
AWESOME!

JMPVW73, very informative posts, a breath of fresh air.

Frank Lee, I'm not going to beat this horse till it's dead. I only ask that you look at the following images and maybe click the link to where the original VW picture is. It takes little imagination and average levels of observation to predict the results of the added horizontal planes, call them wings, spoilers or what ever suits your fancy.

Beetle Aerodynamics / Roofspoiler
Beetle Aerodynamics / Roofspoiler



Gee, with expert advise like that, how could anyone go wrong?
__________________


  Reply With Quote
Old 10-25-2011, 03:36 PM   #155 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 4,179
Thanks: 127
Thanked 2,802 Times in 1,968 Posts
Quote:
Originally Posted by Frank Lee View Post
Gee, with expert advise like that, how could anyone go wrong?
Are you talking about the website I provided a link to, or the mark-ups I did? I don't claim to be an expert, but enjoy learning.

Beetle Aerodynamics / Roofspoiler


I like the thinking behind Gerrelt's Garage, and the projects they show.

Creating a roof spoiler


Quote:
I decided to create my own roofspoiler.................although the goal is to reduce drag, the design must be aesthetically pleasing too!
__________________
George
Architect, Artist and Designer of Objects

2012 Infiniti G37X Coupe
1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

You cannot sell aerodynamics in a can............
  Reply With Quote
Old 10-25-2011, 03:43 PM   #156 (permalink)
(:

Frank Lee's Avatar

Join Date: Jan 2008
Location: up north
Posts: 12,762

Blue - '93 Ford Tempo
Last 3: 27.29 mpg (US)

F150 - '94 Ford F150 XLT 4x4
90 day: 18.5 mpg (US)

Sport Coupe - '92 Ford Tempo GL
Last 3: 69.62 mpg (US)

ShWing! - '82 honda gold wing Interstate
90 day: 33.65 mpg (US)

Moon Unit - '98 Mercury Sable LX Wagon
90 day: 21.24 mpg (US)
Thanks: 1,585
Thanked 3,555 Times in 2,218 Posts
If you enjoy learning you could maybe give what I said some consideration.
__________________


  Reply With Quote
Old 10-25-2011, 04:18 PM   #157 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 4,179
Thanks: 127
Thanked 2,802 Times in 1,968 Posts
Quote:
Originally Posted by Frank Lee View Post
If you enjoy learning you could maybe give what I said some consideration.
I'm learning what you are really about.

If you have something constructive to say, then say it. The negative tone does nothing for me.

I'm sticking to what I first said, the wing posted would do more good over the rear window than under it.

EDIT-1: I think this is related to the same general topic.

http://www.merkurencyclopedia.com/Me.../aerodyne.html
Quote:
In a nutshell, the information shared with me by the Ford aerodynamic office in Dearborn, (data from the FOG wind tunnel) indicates that there is no negative lift (down force) generated by the bi plane nor the single wing aero package. The bi plane wing is an adaption from Fords first aero research vehicle done in Germany in the mid 70's. It had the biplane wings and the look in the backlite and C pillars. The car also had active aero skirts and front spoilers...etc etc. very very advanced. The bi plane wing is designed purely for reduction of drag only. For its time the XR4 has extremly low drag numbers. .328 for production ride height bone stock car. With a frontal area of 21 sq feet (same as mustang) our cars are rather slippery. The engineers and stylists did an excellent job of working together for some good comprimises.

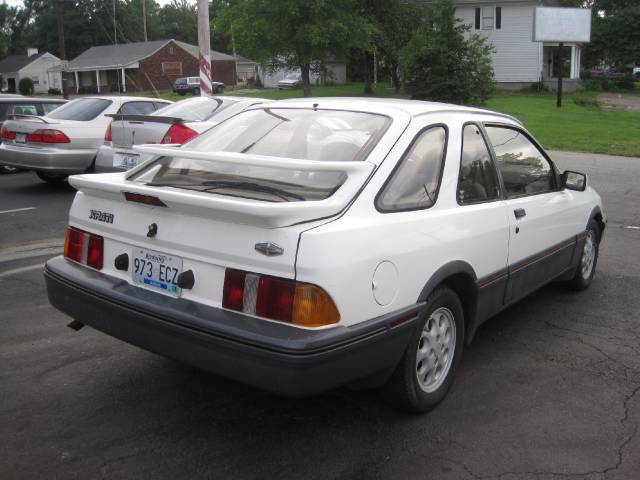

Merkur XR4Ti biplane spoiler
http://www.curbsideclassic.com/curbs...ats-in-a-name/

__________________
George
Architect, Artist and Designer of Objects

2012 Infiniti G37X Coupe
1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

You cannot sell aerodynamics in a can............

Last edited by kach22i; 10-25-2011 at 04:31 PM..
  Reply With Quote
Old 10-25-2011, 04:39 PM   #158 (permalink)
(:

Frank Lee's Avatar

Join Date: Jan 2008
Location: up north
Posts: 12,762

Blue - '93 Ford Tempo
Last 3: 27.29 mpg (US)

F150 - '94 Ford F150 XLT 4x4
90 day: 18.5 mpg (US)

Sport Coupe - '92 Ford Tempo GL
Last 3: 69.62 mpg (US)

ShWing! - '82 honda gold wing Interstate
90 day: 33.65 mpg (US)

Moon Unit - '98 Mercury Sable LX Wagon
90 day: 21.24 mpg (US)
Thanks: 1,585
Thanked 3,555 Times in 2,218 Posts
Some of you have taken the position that a larger trailing wake is lower drag than a smaller trailing wake. Doesn't make sense to me.

The bi-plane wing is great. Ask yourself why it isn't coming off the top of the window?

Quote:
If you have something constructive to say, then say it. The negative tone does nothing for me.
Everything I've said is constructive. You are asking me to repeat myself yet you've shown you haven't thought about what I already put out there.

Oh well, I've done what I care to do about it.
__________________



Last edited by Frank Lee; 10-25-2011 at 04:47 PM..
  Reply With Quote
Old 10-25-2011, 04:57 PM   #159 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 4,179
Thanks: 127
Thanked 2,802 Times in 1,968 Posts
Quote:
Originally Posted by Frank Lee View Post
Some of you have taken the position that a larger trailing wake is lower drag than a smaller trailing wake. Doesn't make sense to me.
The trailing wake in all examples given starts at the top of the rear window.

From that point we have several options;

1. Roof spoiler, creates vortex which eventually manages to pull the flow downward in a more controlled manner.

2. Plane above the window (should tilt down 10 degrees but is shown flat) which extends the length of the car. A longer car should move through the air better, but with some additional surface drag. This is similar to the aero-mods many people are doing in this forum.

3. A flat plane, marketed as a wing, secured tight to the body below the rear window, and completely out of any known air flow pattern. The pattern we do know about is turbulent and full of drag.

.................................................. ..................

If we could put the VW Beetle though a wind tunnel ourselves and experiment with many different positions and shapes, spoilers, wings and planes, we might come up with something none of us could have ever predicted.

I did this overlay (not to scale) to get an idea of what possibilities may be out there.

Automobile pictures by kach22i - Photobucket

__________________
George
Architect, Artist and Designer of Objects

2012 Infiniti G37X Coupe
1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

You cannot sell aerodynamics in a can............

Last edited by kach22i; 10-25-2011 at 05:03 PM..
  Reply With Quote
Old 10-25-2011, 06:18 PM   #160 (permalink)
UFO
Master EcoModder

UFO's Avatar

Join Date: Sep 2010
Location: Denver, CO
Posts: 1,300

Colorado - '17 Chevrolet Colorado 4x4 LT
90 day: 23.07 mpg (US)
Thanks: 315
Thanked 179 Times in 138 Posts
Quote:
Originally Posted by kach22i View Post
The trailing wake in all examples given starts at the top of the rear window.

From that point we have several options;

1. Roof spoiler, creates vortex which eventually manages to pull the flow downward in a more controlled manner.
That sounds like a "vortex generator", which may induce more drag than it reduces. My understanding of the roof spoiler is to provide a sharper cutoff to the airflow to reduce some of the drag caused by air partially detaching along the steeper back slope. By detaching the air completely you still have the full drag of the entire frontal area.
Quote:
Originally Posted by kach22i View Post
2. Plane above the window (should tilt down 10 degrees but is shown flat) which extends the length of the car. A longer car should move through the air better, but with some additional surface drag. This is similar to the aero-mods many people are doing in this forum.
Otherwise known as a Kamm back, and if long enough makes a huge difference.
Quote:
Originally Posted by kach22i View Post
3. A flat plane, marketed as a wing, secured tight to the body below the rear window, and completely out of any known air flow pattern. The pattern we do know about is turbulent and full of drag.
Ernie Rogers did a flat spoiler at the window base on his New Beetle and demonstrated a Cd reduced from 0.39 to 0.30, similar if not slightly better than the VW Golf.
