Old 09-13-2020, 08:50 PM   #1 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 773
Thanks: 53
Thanked 742 Times in 465 Posts
A book to buy and read

Some threads here recently have, at least by implication, suggested that understanding car aero requires a high IQ - ie it is a hard topic.

I think that has been encouraged by some posters here who - either through intent or otherwise - choose to write about car aero in really obscure language. Others quote complex tech papers. I don't mind the latter, but I fear for many it makes the subject appear even harder.

I honestly don't think car aero is hard at all. As with any area of car technology, it's of course possible to delve into the subject at very difficult levels, but it's also quite possible to know enough to gain really good modification results - and to recognise when BS is being posted.

And there is a car aero book that is quite accessible, factually excellent and well written. It's also very cheap in earlier editions.

It's Road Vehicle Aerodynamic Design by RH Barnard.

Abe Books has copies from about US$6 plus postage.

The book doesn't over-simplify but at the same time isn't complex for the sake of being complex - a good middle line is walked.

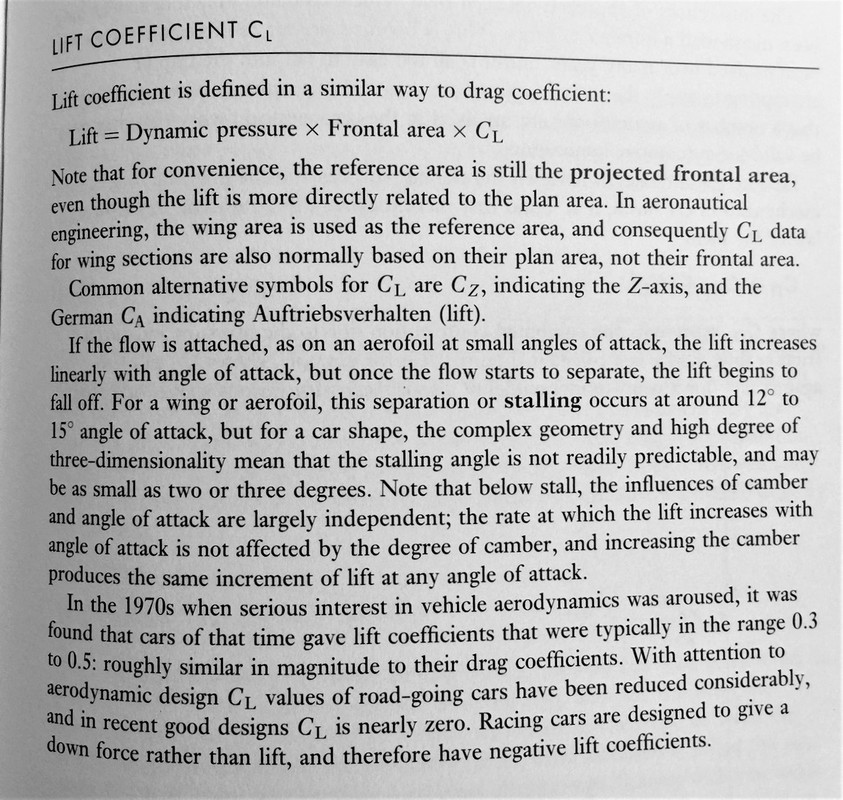

This is an example of the writing:



I can immediately see that this addresses no less than three misconceptions that have occurred in discussion on this group in the last few weeks!

I am not sure why the book isn't often quoted here.

__________________
Modifying the Aerodynamics of Your Road Car

"Your book is unique! It was high time that someone covered vehicle aerodynamics through the practical eyes of someone like you."

- Dr Wolf-Heinrich Hucho, the founder of modern vehicle aerodynamics
  Reply With Quote
The Following User Says Thank You to JulianEdgar For This Useful Post:
aerohead (09-16-2020)
Alt Today
Popular topics

Other popular topics in this forum...


Old 09-14-2020, 04:33 PM   #2 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 773
Thanks: 53
Thanked 742 Times in 465 Posts
I've been asked: what are the three misconceptions this passage addresses that have occurred in discussion in this group in the last few weeks?

1) Lift is defined in terms of frontal area, not plan area. Aerohead recently calculated the lift coefficient for a car using plan area.

Lift coefficient is defined in a similar way to drag coefficient: Lift = Dynamic pressure Frontal area C. Note that for convenience, the reference area is still the projected frontal area...

2) Lift decreases when flow separates. Aerohead argues that lift increases when flow separates. Barnard is talking about aerofoils but you can see from the context of the para he is also (correctly) applying that to car shapes.

...once the flow starts to separate, the lift begins to fall off....

3) The stalling (separation) angle is not easily able to be predicted for car shapes. Aerohead argues that his template shows this precisely.

... for a car shape, the complex geometry and high degree of three-dimensionality mean that the stalling angle is not readily predictable...

4) Lower lift is beneficial in normal cars. Aerohead (and others here) argue that it is of no consequence. Note the use of the word 'good'.

...recent good designs CL is nearly zero...

So there are four (not three) misconceptions briefly addressed in just the one passage!

Incidentally, if you can't understand lift/downforce, it's very unlikely that you will understand thrust/drag, and vice versa. They're all part of the one picture.
__________________
Modifying the Aerodynamics of Your Road Car

"Your book is unique! It was high time that someone covered vehicle aerodynamics through the practical eyes of someone like you."

- Dr Wolf-Heinrich Hucho, the founder of modern vehicle aerodynamics
  Reply With Quote
The Following User Says Thank You to JulianEdgar For This Useful Post:
aerohead (09-16-2020)
Old 09-14-2020, 08:08 PM   #3 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 16,653
Thanks: 4,409
Thanked 5,604 Times in 4,467 Posts
Is there anything of value in this?

__________________
.

Change my, you know, the thing.

_________________
  Reply With Quote
The Following User Says Thank You to freebeard For This Useful Post:
aerohead (09-16-2020)
Old 09-14-2020, 10:40 PM   #4 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 773
Thanks: 53
Thanked 742 Times in 465 Posts
Quote:
Originally Posted by freebeard View Post
Is there anything of value in this?

I think I skimmed through that video a while ago.

In general it's not worth getting excited about laminar and turbulent flow. Very little airflow on a normal car is technically laminar, and so looking at things in terms of laminar and turbulent flows tends to lead people astray ie create confusion.

I think it's much better to concentrate on separated and attached flows.
__________________
Modifying the Aerodynamics of Your Road Car

"Your book is unique! It was high time that someone covered vehicle aerodynamics through the practical eyes of someone like you."

- Dr Wolf-Heinrich Hucho, the founder of modern vehicle aerodynamics

Last edited by JulianEdgar; 09-14-2020 at 10:45 PM.. Reason: typo
  Reply With Quote
Old 09-15-2020, 02:11 AM   #5 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 16,653
Thanks: 4,409
Thanked 5,604 Times in 4,467 Posts
I found interest in the Moody diagram and breakdown of CFD (DNS/LES/RANS)

Something fishy about this grid though.

Viscid/inviscid isn't black and white, it's a gradient.
__________________
.

Change my, you know, the thing.

_________________
  Reply With Quote
The Following User Says Thank You to freebeard For This Useful Post:
aerohead (09-16-2020)
Old 09-15-2020, 02:32 AM   #6 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 773
Thanks: 53
Thanked 742 Times in 465 Posts
Quote:
Originally Posted by freebeard View Post

Viscid/inviscid isn't black and white, it's a gradient.
I don't think that is right. No air is inviscid. None. Inviscid fluid is imaginary - it doesn't exist.

Inviscid airflow is used only to greatly simplify the model of airflow that can be used. That is, it's a 'model trick'.

Wikipedia puts it well (I can give more formal references if anyone wishes. Anderson's books on aerodynamics are good in this regard):

Inviscid flow is the flow of an inviscid fluid, in which the viscosity of the fluid is equal to zero. When viscous forces are neglected, such as the case of inviscid flow, the Navier-Stokes equation can be simplified to a form known as the Euler equation. Using the Euler equation, many fluid dynamics problems involving low viscosity are easily solved, however, the assumed negligible viscosity is no longer valid in the region of fluid near a solid boundary.

In other words, if we're interested in pressures acting on the surface of the body (ie a solid boundary) - and with car aero, that is all that we are interested in - then using inviscid flow models is of no / very little use to us.
__________________
Modifying the Aerodynamics of Your Road Car

"Your book is unique! It was high time that someone covered vehicle aerodynamics through the practical eyes of someone like you."

- Dr Wolf-Heinrich Hucho, the founder of modern vehicle aerodynamics

Last edited by JulianEdgar; 09-15-2020 at 03:03 AM.. Reason: clarification
  Reply With Quote
The Following User Says Thank You to JulianEdgar For This Useful Post:
freebeard (09-15-2020)
Old 09-15-2020, 01:53 PM   #7 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 16,653
Thanks: 4,409
Thanked 5,604 Times in 4,467 Posts
^^ Makes sense. Unobtainable asymptote.
__________________
.

Change my, you know, the thing.

_________________
  Reply With Quote
Old 09-16-2020, 02:15 PM   #8 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 11,529
Thanks: 18,542
Thanked 6,038 Times in 3,687 Posts
lift

Quote:
Originally Posted by JulianEdgar View Post
Some threads here recently have, at least by implication, suggested that understanding car aero requires a high IQ - ie it is a hard topic.

I think that has been encouraged by some posters here who - either through intent or otherwise - choose to write about car aero in really obscure language. Others quote complex tech papers. I don't mind the latter, but I fear for many it makes the subject appear even harder.

I honestly don't think car aero is hard at all. As with any area of car technology, it's of course possible to delve into the subject at very difficult levels, but it's also quite possible to know enough to gain really good modification results - and to recognise when BS is being posted.

And there is a car aero book that is quite accessible, factually excellent and well written. It's also very cheap in earlier editions.

It's Road Vehicle Aerodynamic Design by RH Barnard.

Abe Books has copies from about US$6 plus postage.

The book doesn't over-simplify but at the same time isn't complex for the sake of being complex - a good middle line is walked.

This is an example of the writing:



I can immediately see that this addresses no less than three misconceptions that have occurred in discussion on this group in the last few weeks!

I am not sure why the book isn't often quoted here.
who cares?
__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/
  Reply With Quote
Old 09-16-2020, 02:22 PM   #9 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 11,529
Thanks: 18,542
Thanked 6,038 Times in 3,687 Posts
plan area

Quote:
Originally Posted by JulianEdgar View Post
I've been asked: what are the three misconceptions this passage addresses that have occurred in discussion in this group in the last few weeks?

1) Lift is defined in terms of frontal area, not plan area. Aerohead recently calculated the lift coefficient for a car using plan area.

Lift coefficient is defined in a similar way to drag coefficient: Lift = Dynamic pressure Frontal area C. Note that for convenience, the reference area is still the projected frontal area...

2) Lift decreases when flow separates. Aerohead argues that lift increases when flow separates. Barnard is talking about aerofoils but you can see from the context of the para he is also (correctly) applying that to car shapes.

...once the flow starts to separate, the lift begins to fall off....

3) The stalling (separation) angle is not easily able to be predicted for car shapes. Aerohead argues that his template shows this precisely.

... for a car shape, the complex geometry and high degree of three-dimensionality mean that the stalling angle is not readily predictable...

4) Lower lift is beneficial in normal cars. Aerohead (and others here) argue that it is of no consequence. Note the use of the word 'good'.

...recent good designs CL is nearly zero...

So there are four (not three) misconceptions briefly addressed in just the one passage!

Incidentally, if you can't understand lift/downforce, it's very unlikely that you will understand thrust/drag, and vice versa. They're all part of the one picture.
If you'll stop associating 'wings' with automobiles, I'll stop using aeronautical conventions. The reason I posted what I did was extremely germane to the concept of a wing section as a car body, with respect to aspect ratio. And as always, your complete lack of perspicacity leaves you muttering incantions as you wander intellectually aimlessly in the dark like the automaton you resemble in your posts.
__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/
  Reply With Quote
Old 09-16-2020, 02:26 PM   #10 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 11,529
Thanks: 18,542
Thanked 6,038 Times in 3,687 Posts
L vs T

Quote:
Originally Posted by freebeard View Post
Is there anything of value in this?

A streamlined car can be devoid of turbulence, as it could be separation-free. That's Hucho's entire thesis for aerodynamic streamlining.
In that context, it's the most important topic of automobile aerodynamics.

__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/
  Reply With Quote
The Following User Says Thank You to aerohead For This Useful Post:
freebeard (09-16-2020)
