Dealing with underside airflow & the front bumper (transition radius to undertray)

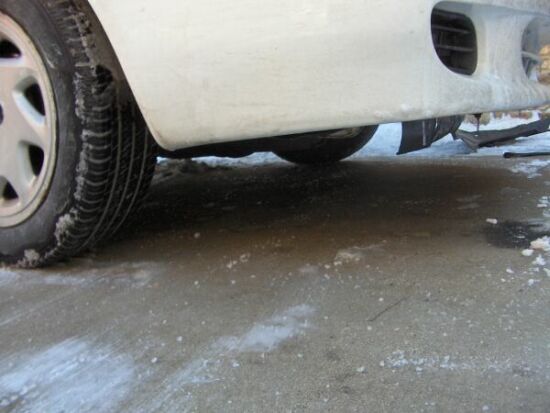

It seems to be warming up, and that means I can actually work outside more (this year's cabin fever has been horrible). So, I'm looking at a bellypan for the Paseo and have been thinking about how I want to make the transition between the front bumper and the pan. In the picture below you can see the car currently has a small air deflector on the bottom (all current stock equipment is gray). I'm thinking the best route to go with a bellypan would be to drop down to that level from the front of the bumper (see the red dots in my pic). Any ideas or comments?

Here are my less than great pictures:






__________________
Current project: A better alternator delete
  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 03-18-2008, 11:17 AM   #2 (permalink)
Batman Junior

MetroMPG's Avatar

Join Date: Nov 2007
Location: 1000 Islands, Ontario, Canada
Posts: 22,530

Blackfly - '98 Geo Metro
Team Metro
Last 3: 70.09 mpg (US)

MPGiata - '90 Mazda Miata
90 day: 54.46 mpg (US)

Even Fancier Metro - '14 Mitsubishi Mirage top spec
90 day: 70.75 mpg (US)

Appliance car Mirage - '14 Mitsubishi Mirage ES (base)
90 day: 62.14 mpg (US)
Thanks: 4,078
Thanked 6,978 Times in 3,613 Posts
Sounds reasonable - you definitely want a radius between the bumper bottom and the pan, if possible. See the EV-1 for example:



There was a pic out there of Brigham Young U's EV1, shot from underneath the car on a lift that better shows the bumper/front pan transition. But I can't find it at the moment.

What does Hucho say on forward facing transition radii? 2 inches?
__________________
Project MPGiata! Mods for getting 50+ MPG from a 1990 Miata
Honda mods: Ecomodding my $800 Honda Fit 5-speed beater
Mitsu mods: 70 MPG in my ecomodded, dirt cheap, 3-cylinder Mirage.
Ecodriving test: Manual vs. automatic transmission MPG showdown



EcoModder
has launched a forum for the efficient new Mitsubishi Mirage
www.MetroMPG.com - fuel efficiency info for Geo Metro owners
www.ForkenSwift.com - electric car conversion on a beer budget
  Reply With Quote
Old 03-18-2008, 11:59 AM   #3 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 11,203

CM400E - '81 Honda CM400E
90 day: 51.49 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)

Daox's Volt - '13 Chevrolet Volt
Thanks: 2,501
Thanked 2,587 Times in 1,554 Posts
Thanks for the pic. That is pretty darn close to what I was thinking of doing with my bumper actually. I was thinking of adding a vent for the radiator in the front radiused section of the underbody panel. In any case, I think I'll use the EV-1 as a template.

I'll have to look at Hucho's book. I haven't been reading it much lately and am only on chapter 4. But, I believe he said something like 2-4" when he was describing the VW bus. I remember the section, just not the exact number.
__________________
Current project: A better alternator delete
  Reply With Quote
Old 03-18-2008, 12:01 PM   #4 (permalink)
Pokémoderator

cfg83's Avatar

Join Date: Dec 2007
Location: Southern California
Posts: 5,864

1999 Saturn SW2 - '99 Saturn SW2 Wagon
Team Saturn
90 day: 40.49 mpg (US)
Thanks: 439
Thanked 532 Times in 358 Posts
Daox -

I like the shape you were thinking of. An alternative I have been thinking about is to find an old bumper of my car from a junk yard and "double-deck" it :



I think this would be harder for you than for me because it's easier for me to find a Saturn bumper.

I would call this the "Biplane Mod".

CarloSW2
__________________

What's your EPA MPG? Go Here and find out!
American Solar Energy Society
  Reply With Quote
Old 03-18-2008, 04:52 PM   #5 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 11,203

CM400E - '81 Honda CM400E
90 day: 51.49 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)

Daox's Volt - '13 Chevrolet Volt
Thanks: 2,501
Thanked 2,587 Times in 1,554 Posts
What about doing something a bit more drastic? Reshaping the front a bit more like such? It would be much more of a bland look, but I would think a bit more aerodynamic.

__________________
Current project: A better alternator delete
  Reply With Quote
Old 03-18-2008, 04:57 PM   #6 (permalink)
Batman Junior

MetroMPG's Avatar

Join Date: Nov 2007
Location: 1000 Islands, Ontario, Canada
Posts: 22,530

Blackfly - '98 Geo Metro
Team Metro
Last 3: 70.09 mpg (US)

MPGiata - '90 Mazda Miata
90 day: 54.46 mpg (US)

Even Fancier Metro - '14 Mitsubishi Mirage top spec
90 day: 70.75 mpg (US)

Appliance car Mirage - '14 Mitsubishi Mirage ES (base)
90 day: 62.14 mpg (US)
Thanks: 4,078
Thanked 6,978 Times in 3,613 Posts
You'd be lowering the stagnation point, and sending more flow over the car than under (as well as increasing front downforce).

But will that reduce drag? Not sure. But I'd guess "yes", since you're diverting more air away from the dirty underside.
__________________
Project MPGiata! Mods for getting 50+ MPG from a 1990 Miata
Honda mods: Ecomodding my $800 Honda Fit 5-speed beater
Mitsu mods: 70 MPG in my ecomodded, dirt cheap, 3-cylinder Mirage.
Ecodriving test: Manual vs. automatic transmission MPG showdown



EcoModder
has launched a forum for the efficient new Mitsubishi Mirage
www.MetroMPG.com - fuel efficiency info for Geo Metro owners
www.ForkenSwift.com - electric car conversion on a beer budget
  Reply With Quote
Old 03-18-2008, 07:32 PM   #7 (permalink)
Master EcoModder

tasdrouille's Avatar

Join Date: Jan 2008
Location: Mirabel, QC
Posts: 1,672

The Guzzler - '08 Hyundai Elantra GL
90 day: 33.12 mpg (US)

Got Soul? - '11 Kia Soul 2U
Thanks: 35
Thanked 86 Times in 57 Posts
Quote:
Originally Posted by MetroMPG View Post
You'd be lowering the stagnation point, and sending more flow over the car than under (as well as increasing front downforce).

But will that reduce drag? Not sure. But I'd guess "yes", since you're diverting more air away from the dirty underside.
According to Hucho's book, the last proposed design would be better.
__________________



www.HyperKilometreur.com - Quand chaque goutte compte...
  Reply With Quote
Old 03-18-2008, 07:33 PM   #8 (permalink)
Cd
Ultimate Fail

Cd's Avatar

Join Date: Feb 2008
Location: Austin,Texas
Posts: 3,585
Thanks: 2,872
Thanked 1,121 Times in 679 Posts
Quote:
Originally Posted by MetroMPG View Post
Sounds reasonable - you definitely want a radius between the bumper bottom and the pan, if possible. See the EV-1 for example:
If I undertand you guy correctly, what you are saying is that the bottom edge of the bumper should have a rounded edge ( 2" ) instead of just a sharp cutoff ?
( When there is a bellypan installed . )

Why is this ? Does it add more / less velocity to the airflow travelling under the car ?
  Reply With Quote
Old 03-18-2008, 08:06 PM   #9 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 11,203

CM400E - '81 Honda CM400E
90 day: 51.49 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)

Daox's Volt - '13 Chevrolet Volt
Thanks: 2,501
Thanked 2,587 Times in 1,554 Posts
It helps keep the flow attached. In the book it references A pillars more so than underbody airflow. However, the principle is still there.
__________________
Current project: A better alternator delete
  Reply With Quote
Old 03-18-2008, 08:16 PM   #10 (permalink)
Batman Junior

MetroMPG's Avatar

Join Date: Nov 2007
Location: 1000 Islands, Ontario, Canada
Posts: 22,530

Blackfly - '98 Geo Metro
Team Metro
Last 3: 70.09 mpg (US)

MPGiata - '90 Mazda Miata
90 day: 54.46 mpg (US)

Even Fancier Metro - '14 Mitsubishi Mirage top spec
90 day: 70.75 mpg (US)

Appliance car Mirage - '14 Mitsubishi Mirage ES (base)
90 day: 62.14 mpg (US)
Thanks: 4,078
Thanked 6,978 Times in 3,613 Posts
Raises an interesting question though: if there's no belly pan for the dam to transition to, is a lower radius strictly necessary?

__________________
Project MPGiata! Mods for getting 50+ MPG from a 1990 Miata
Honda mods: Ecomodding my $800 Honda Fit 5-speed beater
Mitsu mods: 70 MPG in my ecomodded, dirt cheap, 3-cylinder Mirage.
Ecodriving test: Manual vs. automatic transmission MPG showdown



EcoModder
has launched a forum for the efficient new Mitsubishi Mirage
www.MetroMPG.com - fuel efficiency info for Geo Metro owners
www.ForkenSwift.com - electric car conversion on a beer budget
  Reply With Quote
