Escort Air Dam

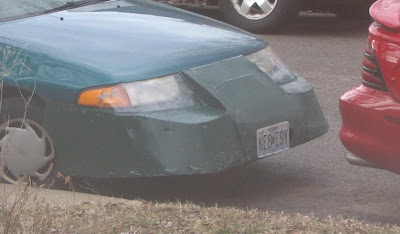

Version #3; this is the much improved version I am constructing.
Teaser photos now; I have part complete and have some details up on my blog (see signature). Will get other photos when complete and will report back on MPG / coastdown figures. Coastdown will be done next week, and MPGs will be fairly concrete after 2-3 weeks depending on weather conditions.
Enjoy / Comment / Critique!



__________________
Gasoline, Wind, Solar, Gravity Hybrid-to-be! http://www.scientificmethodfueleconomy.blogspot.com/
  Reply With Quote
