Old 06-29-2018, 02:00 PM   #21 (permalink)
Master EcoModder

Ecky's Avatar

Join Date: Dec 2011
Location: Vermont
Posts: 3,573

Gaptooth (retired) - '00 Honda Insight
Team Honda
Gen-1 Insights
90 day: 54.26 mpg (US)

Such Fit - '07 Honda Fit Sport
90 day: 41.27 mpg (US)

Connect - '15 Ford Transit Connect XL
90 day: 23.93 mpg (US)

K-sight - '00 Honda K-sight
90 day: 40.97 mpg (US)
Thanks: 1,340
Thanked 1,481 Times in 938 Posts
I'll look into it!

The mounts are still a bummer, it will likely end up being more expensive overall.

  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 06-29-2018, 02:03 PM   #22 (permalink)
Thalmaturge

Join Date: Mar 2011
Location: The edge of nowhere
Posts: 855

Go Pod - '00 Honda Insight AC

The Tinyvan - '07 Honda Fit Sport

Spicy Italian - '13 Fiat 500 Abarth
Thanks: 423
Thanked 438 Times in 285 Posts
Never mind, that's only the top part, it's shaped the same as the Fit unit.

http://estore.honda.com/honda/parts/...n=&b=E++03&dl=

  Reply With Quote
Old 06-29-2018, 02:12 PM   #23 (permalink)
Thalmaturge

Join Date: Mar 2011
Location: The edge of nowhere
Posts: 855

Go Pod - '00 Honda Insight AC

The Tinyvan - '07 Honda Fit Sport

Spicy Italian - '13 Fiat 500 Abarth
Thanks: 423
Thanked 438 Times in 285 Posts
Aha! Found one:

Golden Eagle turbo intake manifold:
https://www.speedfactoryracing.net/g...ntake-manifold

Here's a pic of it on an L15 (CR-Z):


CENTER STAGE> Bisimoto Turbo Hybrid Honda CRZ | MotorMavens
  Reply With Quote
Old 06-29-2018, 02:13 PM   #24 (permalink)
Master EcoModder

Ecky's Avatar

Join Date: Dec 2011
Location: Vermont
Posts: 3,573

Gaptooth (retired) - '00 Honda Insight
Team Honda
Gen-1 Insights
90 day: 54.26 mpg (US)

Such Fit - '07 Honda Fit Sport
90 day: 41.27 mpg (US)

Connect - '15 Ford Transit Connect XL
90 day: 23.93 mpg (US)

K-sight - '00 Honda K-sight
90 day: 40.97 mpg (US)
Thanks: 1,340
Thanked 1,481 Times in 938 Posts
$700 is a bit steep.

Short runners will probably affect low end torque too. Buuut it makes it a lot more feasible.
  Reply With Quote
Old 07-02-2018, 09:57 AM   #25 (permalink)
Master EcoModder

Ecky's Avatar

Join Date: Dec 2011
Location: Vermont
Posts: 3,573

Gaptooth (retired) - '00 Honda Insight
Team Honda
Gen-1 Insights
90 day: 54.26 mpg (US)

Such Fit - '07 Honda Fit Sport
90 day: 41.27 mpg (US)

Connect - '15 Ford Transit Connect XL
90 day: 23.93 mpg (US)

K-sight - '00 Honda K-sight
90 day: 40.97 mpg (US)
Thanks: 1,340
Thanked 1,481 Times in 938 Posts
Quote:
Originally Posted by Ecky View Post
Trying to decide.

3.4 FD, stock 165/65r14 tire size
2180rpm @ 65mph
1680rpm @ 50mph

3.4 FD, common 185/65r14 tire size
2085rpm @ 65mph
1605rpm @ 50mph

4.105 FD, stock tire size
2635rpm @ 65mph
2025rpm @ 50mph

4.105 FD, 185 tire size
2520rpm @ 65mph
1949rpm @ 50mph


Honda Insight 1.0L gearing - 3.208 final drive
2350rpm @ 65mph
1810rpm @ 50mph


I really think a 3.4 FD is a good idea, but it adds considerable cost to the build. I suppose the 4.105 wouldn't be the end of the world if I moved to a larger diameter tire too.

Quoting myself here because I need to update this. Hybrid Racing's K series transmission guide had the wrong ratio for the 2012 Civic Si's 6th gear - it's actually a bit taller.

Looks like I'm not going to be able to get ahold of a 3.4 FD, no matter how much money I throw at it. The one person who makes these will only make them if there's a group buy-in, so 4.059 is the tallest I can reasonably get.

That said, with the new ratio, it looks like this:

Honda Insight 1.0L gearing - 3.208 final drive
2350rpm @ 65mph
1810rpm @ 50mph

Civic Si transmission + 4.059 FD
2556rpm @ 65mph
1966rpm @ 50mph

Civic Si transmission + 4.059 FD + 185/65r14 tires
2444rpm @ 65mph
1880rpm @ 50mph


^ To me that looks pretty reasonable. Ideally I'd have taller gearing to go with the bigger motor, but at least it's not significantly shorter.

In theory, if I could get the 3.4 FD and put on 185/65's though...

Civic Si transmission + 3.4 FD + 185/65r14 tires
2047rpm @ 65mph
1575rpm @ 50mph

What a dream. I might even be able to nearly match the 1.0's fuel economy with a 6th like that.

Here's this dream transmission, graphed again'st the Insight's stock ratios:

  Reply With Quote
The Following User Says Thank You to Ecky For This Useful Post:
California98Civic (07-03-2018)
Old 07-03-2018, 07:34 AM   #26 (permalink)
Master EcoModder

Ecky's Avatar

Join Date: Dec 2011
Location: Vermont
Posts: 3,573

Gaptooth (retired) - '00 Honda Insight
Team Honda
Gen-1 Insights
90 day: 54.26 mpg (US)

Such Fit - '07 Honda Fit Sport
90 day: 41.27 mpg (US)

Connect - '15 Ford Transit Connect XL
90 day: 23.93 mpg (US)

K-sight - '00 Honda K-sight
90 day: 40.97 mpg (US)
Thanks: 1,340
Thanked 1,481 Times in 938 Posts
Looks like I'm getting the 3.4 final drive after all. After pestering him, the guy who makes them caved and ordered a run.

With gearing like that this really might not be un-ecomodding.
  Reply With Quote
Old 07-03-2018, 11:32 PM   #27 (permalink)
Cyborg ECU

California98Civic's Avatar

Join Date: Mar 2011
Location: Coastal Southern California
Posts: 5,219

Black and Green - '98 Honda Civic DX Coupe
Team Honda
90 day: 66.37 mpg (US)

Black and Red - '00 Nashbar Custom built eBike
90 day: 3671.43 mpg (US)
Thanks: 1,859
Thanked 1,556 Times in 1,058 Posts
That's the Si transmission with a 6 speed. Wow. Tall combination. With the 3.4 FD your RPM estimates are really low. My 3.25 FD, 0.710 5th, and 175/70-r15 wheels/tires turn the tach about 1770 rpms at 55mph.
__________________


See my car's mod & maintenance thread and my electric bicycle's thread for ongoing projects. I will rebuild Black and Green over decades as parts die, until it becomes a different car of roughly the same shape and color. My minimum fuel economy goal is 55 mpg while averaging posted speed limits. I generally top 60 mpg. See also my Honda manual transmission specs thread.

  Reply With Quote
Old 07-10-2018, 05:03 PM   #28 (permalink)
Master EcoModder

Ecky's Avatar

Join Date: Dec 2011
Location: Vermont
Posts: 3,573

Gaptooth (retired) - '00 Honda Insight
Team Honda
Gen-1 Insights
90 day: 54.26 mpg (US)

Such Fit - '07 Honda Fit Sport
90 day: 41.27 mpg (US)

Connect - '15 Ford Transit Connect XL
90 day: 23.93 mpg (US)

K-sight - '00 Honda K-sight
90 day: 40.97 mpg (US)
Thanks: 1,340
Thanked 1,481 Times in 938 Posts
Thoughts on K24 vs K20 fuel economy potential?

K24 is basically a stroked K20 - both have (approximately) the same cylinder bore. The K24 produces around 20% more torque, almost exactly the amount you'd expect based on the considerably longer stroke and correspondingly higher displacement.

All else being equal, I'd expect a motor with a longer stroke to provide better fuel economy (e.g. 2.0L vs 2.0L) due to better cylinder geometry. However, the K24 has more displacement. As long as I'm not needing to downshift when cruising, I expect that would work against me. A K20 will be running at higher load in the same gear, but its peak efficiency will also probably be at a higher RPM.
  Reply With Quote
Old 07-10-2018, 06:34 PM   #29 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 10,988

CM400E - '81 Honda CM400E
90 day: 58.68 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)
Thanks: 2,325
Thanked 2,385 Times in 1,445 Posts
Do you have a torque/hp graph for both engines? That would help show what kind of loads you'll be at cruising.
__________________
Current project: Adding regenerative braking to the Mirage
  Reply With Quote
Old 07-10-2018, 07:36 PM   #30 (permalink)
Master EcoModder

Ecky's Avatar

Join Date: Dec 2011
Location: Vermont
Posts: 3,573

Gaptooth (retired) - '00 Honda Insight
Team Honda
Gen-1 Insights
90 day: 54.26 mpg (US)

Such Fit - '07 Honda Fit Sport
90 day: 41.27 mpg (US)

Connect - '15 Ford Transit Connect XL
90 day: 23.93 mpg (US)

K-sight - '00 Honda K-sight
90 day: 40.97 mpg (US)
Thanks: 1,340
Thanked 1,481 Times in 938 Posts
Quote:
Originally Posted by Daox View Post
Do you have a torque/hp graph for both engines? That would help show what kind of loads you'll be at cruising.
Yep.

K24Z7 is ~170ft-lbs torque peak, ~205HP on paper, redline is 7000rpm.

K20Z3 is 139ft-lbs torque peak, ~197HP on paper, redline is 8000rpm.

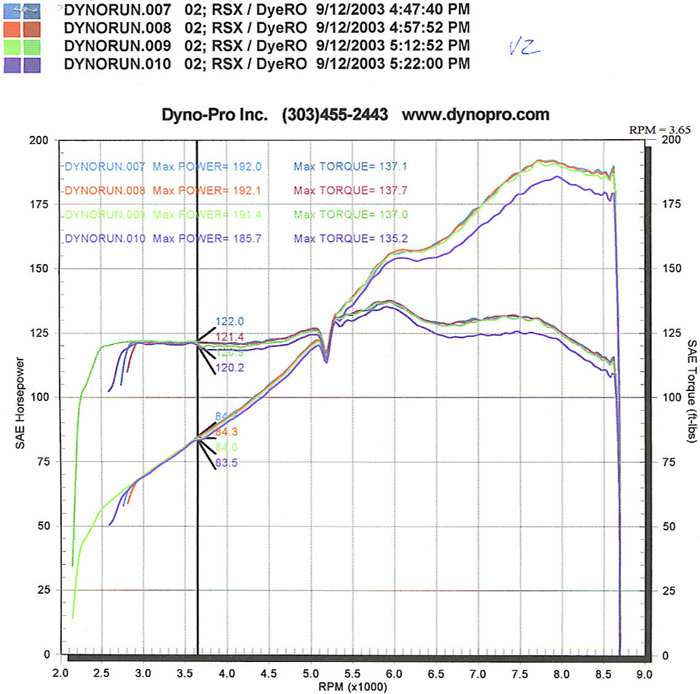

Sample K24Z7:


Similar K24A2:


Sample K20Z3:


Similar K20A2:



Both motors have basically flat torque curves. The smaller motor would have a slightly shorter top gear (I doubt I'd bother switching that). With the Insight's stock tire size:

Stock engine - 1705rpm @ 50mph, 66 ft-lbs of torque and it cruises at approximately 50% load. So let's say it takes very roughly ~35 ft-lbs to cruise at 50.

K20 - 1680rpm @ 50mph, ~120ft-lbs torque, around 25-33% load
K24 - 1647rpm @ 50mph, ~140ft-lbs torque, around 24-28% load

Taller gearing, longer stroke, but lower load...


Last edited by Ecky; 07-10-2018 at 07:42 PM..
  Reply With Quote
The Following 2 Users Say Thank You to Ecky For This Useful Post:
Daox (07-10-2018), redpoint5 (07-11-2018)
