Go Back   EcoModder Forum > EcoModding > DIY / How-to
Register Now
 Register Now


Reply  Post New Thread

Submit Tools LinkBack Thread Tools
Old 06-15-2014, 07:46 PM   #11 (permalink)
Hydrogen > EV

Join Date: Apr 2012
Location: NW Ohio, United States
Posts: 2,017

Snow White and the 6.2 Dwarfs - '11 Chevrolet Corvette LT2
Last 3: 26.46 mpg (US)

Silver Flea - '05 Honda Insight
90 day: 58.96 mpg (US)
Thanks: 981
Thanked 383 Times in 279 Posts

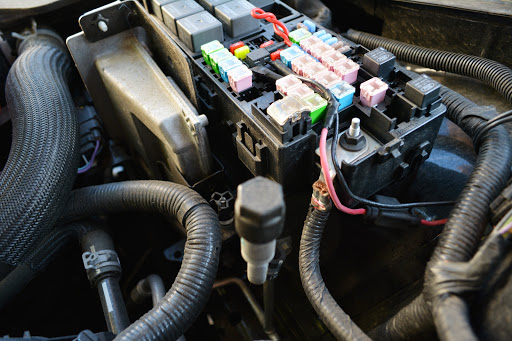

My build is very similar, but I used a fuse just after the weird angle thingy.

http://ecomodder.com/forum/showthrea...tml#post326463


__________________





Best Tanks:
Mustang - 54.83 mpg (US) at the Green Grand Prix
Insight - 82.91966 mpg (US) over 818.5 miles.
  Reply With Quote
The Following 2 Users Say Thank You to UltArc For This Useful Post:
jedi_sol (07-02-2014), Xist (10-23-2015)
Alt Today
Popular topics

Other popular topics in this forum...


Old 07-02-2014, 10:02 AM   #12 (permalink)
EcoModding Lurker

Join Date: Aug 2012
Location: Portugal
Posts: 17
Thanks: 0
Thanked 4 Times in 4 Posts
I like it
  Reply With Quote
The Following User Says Thank You to andrenoites For This Useful Post:
jedi_sol (07-02-2014)
Old 07-02-2014, 12:18 PM   #13 (permalink)
Rat Racer

Fat Charlie's Avatar

Join Date: May 2011
Location: Route 16
Posts: 4,150

Al the Third, year four - '13 Honda Fit Base
Team Honda
90 day: 42.9 mpg (US)
Thanks: 1,784
Thanked 1,917 Times in 1,246 Posts
I don't know how I missed this thread. Love the work!
__________________

Quote:
Originally Posted by sheepdog44 View Post
Transmission type Efficiency
Manual neutral engine off.100% @MPG <----- Fun Fact.
Manual 1:1 gear ratio .......98%
CVT belt ............................88%
Automatic .........................86%

  Reply With Quote
The Following User Says Thank You to Fat Charlie For This Useful Post:
jedi_sol (07-02-2014)
Old 09-09-2014, 01:09 PM   #14 (permalink)
herp derp Apprentice

Join Date: Oct 2008
Location: Lawrence, KS
Posts: 1,049

Saturn-sold - '99 saturn sc1
Team Saturn
90 day: 28.28 mpg (US)

Yukon - '03 GMC Yukon Denali
90 day: 13.74 mpg (US)
Thanks: 43
Thanked 331 Times in 233 Posts
Quote:
Originally Posted by Fat Charlie View Post
I don't know how I missed this thread. Love the work!
I missed it too, but ended up using the same fuse tap.
Instead of pulling power off of the lower left terminal, install a fuse in the upper slots and use the fuse tap wire, then you won't need the extra fuse holder, and the fuse is right at the start of the added circuit
  Reply With Quote
The Following User Says Thank You to 2000mc For This Useful Post:
jedi_sol (09-09-2014)
Old 09-10-2014, 09:02 AM   #15 (permalink)
Rat Racer

Fat Charlie's Avatar

Join Date: May 2011
Location: Route 16
Posts: 4,150

Al the Third, year four - '13 Honda Fit Base
Team Honda
90 day: 42.9 mpg (US)
Thanks: 1,784
Thanked 1,917 Times in 1,246 Posts

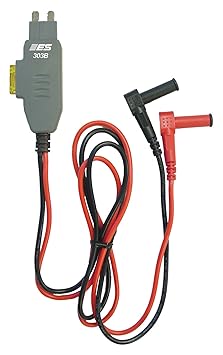

Yeah, I got a Fuse Buddy. It's meant to plug a multimeter into a fuse slot, so it's quick and easy: cut off multimeter plugs and connect wire ends to your switch/relay, remove injector fuse and put it in the Fuse Buddy's slot, plug Fuse Buddy into fuse box.

__________________

Quote:
Originally Posted by sheepdog44 View Post
Transmission type Efficiency
Manual neutral engine off.100% @MPG <----- Fun Fact.
Manual 1:1 gear ratio .......98%
CVT belt ............................88%
Automatic .........................86%

  Reply With Quote
Old 09-10-2014, 03:03 PM   #16 (permalink)
Not Doug

Xist's Avatar

Join Date: Jun 2012
Location: Show Low, AZ
Posts: 10,503

Chorizo - '00 Honda Civic HX, baby! :D
90 day: 35.35 mpg (US)

Mid-Life Crisis Fighter - '99 Honda Accord LX
90 day: 31.86 mpg (US)

Gramps - '04 Toyota Camry LE
90 day: 33.15 mpg (US)
Thanks: 6,934
Thanked 1,973 Times in 1,500 Posts
Fat Charlie, $13.86 from http://www.amazon.com/ESI-303B-Fuse-Buddy-Adapter/dp/B000TQ15E0

Could you use a multimeter without the special attachment? I asked my former "electrical engineer" friend if I could use a multimeter to check a fuse and she refused to give me a straight answer about anything, she did send me a picture of something like this, but did not say anything about it.
  Reply With Quote
Old 09-10-2014, 03:37 PM   #17 (permalink)
Rat Racer

Fat Charlie's Avatar

Join Date: May 2011
Location: Route 16
Posts: 4,150

Al the Third, year four - '13 Honda Fit Base
Team Honda
90 day: 42.9 mpg (US)
Thanks: 1,784
Thanked 1,917 Times in 1,246 Posts
Price has gone up- I paid $13.40 last month. Just make sure you get the one that fits in the right fuse size- mine's an ATM, not an ATC.

I don't see why you'd need the multimeter plugs, as long as you've got leads that do plug into it.
__________________

Quote:
Originally Posted by sheepdog44 View Post
Transmission type Efficiency
Manual neutral engine off.100% @MPG <----- Fun Fact.
Manual 1:1 gear ratio .......98%
CVT belt ............................88%
Automatic .........................86%


Last edited by Fat Charlie; 09-10-2014 at 03:46 PM..
  Reply With Quote
The Following User Says Thank You to Fat Charlie For This Useful Post:
Xist (09-10-2014)
Old 09-18-2014, 10:10 AM   #18 (permalink)
EcoModding Lurker

Join Date: Sep 2014
Location: brantford,on
Posts: 1
Thanks: 0
Thanked 1 Time in 1 Post
i just followed your killswitch 2.0 post and applied it to my 2011 impreza. it works !! super awesome write up.

thanks!
  Reply With Quote
The Following User Says Thank You to thtimpreza34 For This Useful Post:
jedi_sol (09-18-2014)
Old 09-18-2014, 11:29 AM   #19 (permalink)
Master EcoModder

jedi_sol's Avatar

Join Date: Mar 2009
Location: Tustin, CA
Posts: 929

2013 STi *SOLD* - '13 Subaru Impreza WRX STi
Subaru
Sports Cars
Team Turbocharged!
90 day: 26.59 mpg (US)

1996 Geo Metro *RETIRED from Ecomodding* - '96 Geo Metro Base
90 day: 58.68 mpg (US)
Thanks: 368
Thanked 378 Times in 236 Posts
Quote:
Originally Posted by thtimpreza34 View Post
i just followed your killswitch 2.0 post and applied it to my 2011 impreza. it works !! super awesome write up.

thanks!
Cool! It's nice to see that my work is helping other Subaru owners.
__________________







See the rest of the Sti project log:
http://ecomodder.com/forum/showthrea...log-26612.html
  Reply With Quote
Old 10-23-2015, 12:10 AM   #20 (permalink)
Master EcoModder

jedi_sol's Avatar

Join Date: Mar 2009
Location: Tustin, CA
Posts: 929

2013 STi *SOLD* - '13 Subaru Impreza WRX STi
Subaru
Sports Cars
Team Turbocharged!
90 day: 26.59 mpg (US)

1996 Geo Metro *RETIRED from Ecomodding* - '96 Geo Metro Base
90 day: 58.68 mpg (US)
Thanks: 368
Thanked 378 Times in 236 Posts
A fellow WRX owner on here pointed out that his Crankshaft position sensor wire on ENGINE SIDE is white (pin #3)...my Sti's is blue.

Therefore:
STi pin #3
Engine side - BLUE
Firewall side - WHITE

WRX pin #3
Engine side - White
Firewall side - White

I've confirmed this with the Service manual. I've updated my instructions to include this new information


__________________







See the rest of the Sti project log:
http://ecomodder.com/forum/showthrea...log-26612.html
  Reply With Quote
Reply  Post New Thread


Thread Tools




Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2021, vBulletin Solutions Inc.
Content Relevant URLs by vBSEO 3.5.2
All content copyright EcoModder.com
