Old 04-07-2022, 09:27 PM   #71 (permalink)
Master EcoModder

Phase's Avatar

Join Date: Mar 2022
Location: oregon
Posts: 1,121

Black Bullet - '19 Hyundai Ioniq Hybrid Blue
Thanks: 1
Thanked 592 Times in 470 Posts
Quote:
Originally Posted by basjoos View Post
Install a 4 or 7 pin trailer plug on the back of the car when you install the Reese hitch and plug the hitch mounted boat tail light wiring into that. Treat the taillights built into the boat tail as you would a set of trailer lights You would also need to relocate the car’s license plate to the back of the boat tail whenever it was in use.
I was thinking welding an extension to the rear existing spoiler that keeps going out and down, and then when the under belly pan is made, I can do an extension out and upward from under the rear once I can get the airflow smooth and attached. It’ll probably look more like a boat tail/box cavity hybrid since I can only add a few feet of length realistically ( I live in a crowded city. I can’t be driving around a 30 foot long aero missile)

  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 04-07-2022, 09:42 PM   #72 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 28,557
Thanks: 8,092
Thanked 8,880 Times in 7,328 Posts
Isn't there a hatch back there? Two-piece box?
__________________
.
.
Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster

____________________
.
.
Three conspiracy theorists walk into a bar --You can't say that is a coincidence.
  Reply With Quote
Old 04-08-2022, 12:33 AM   #73 (permalink)
Master EcoModder

Phase's Avatar

Join Date: Mar 2022
Location: oregon
Posts: 1,121

Black Bullet - '19 Hyundai Ioniq Hybrid Blue
Thanks: 1
Thanked 592 Times in 470 Posts
Quote:
Originally Posted by freebeard View Post
Isn't there a hatch back there? Two-piece box?

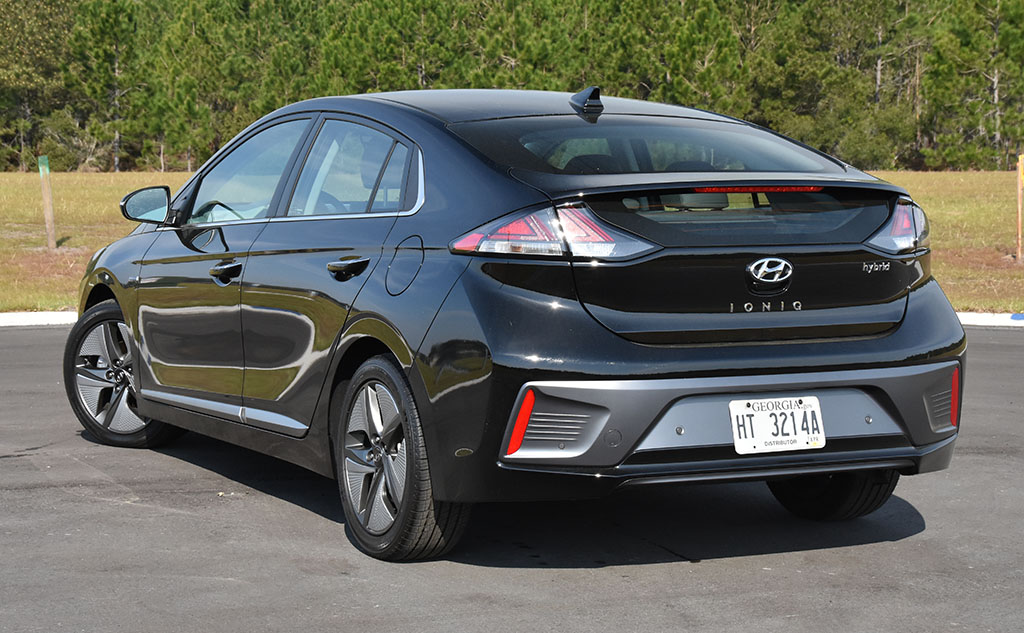

heres a picture of the rear. the hatch back looks like it could continue, but hyundai just '' chopped'' off the end of this makes sense

  Reply With Quote
Old 04-08-2022, 12:34 AM   #74 (permalink)
Master EcoModder

Phase's Avatar

Join Date: Mar 2022
Location: oregon
Posts: 1,121

Black Bullet - '19 Hyundai Ioniq Hybrid Blue
Thanks: 1
Thanked 592 Times in 470 Posts
side profile. extend top and bottom spoilers a bit longer and angled more inwards to continue the boat tail shape
  Reply With Quote
Old 04-08-2022, 02:20 AM   #75 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 28,557
Thanks: 8,092
Thanked 8,880 Times in 7,328 Posts
I would think Rocket Bunny-style [boxed] skirts that extend to below the split in the tail light. So the lower window and lights are above the box. The hatch could lift out of the addition.

And then a Gurney flap [wickerbill] on the spoiler to wrap the air flow down onto the top of the box.
__________________
.
.
Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster

____________________
.
.
Three conspiracy theorists walk into a bar --You can't say that is a coincidence.
  Reply With Quote
Old 04-08-2022, 03:49 AM   #76 (permalink)
Master EcoModder

Phase's Avatar

Join Date: Mar 2022
Location: oregon
Posts: 1,121

Black Bullet - '19 Hyundai Ioniq Hybrid Blue
Thanks: 1
Thanked 592 Times in 470 Posts
Quote:
Originally Posted by freebeard View Post
I would think Rocket Bunny-style [boxed] skirts that extend to below the split in the tail light. So the lower window and lights are above the box. The hatch could lift out of the addition.

And then a Gurney flap [wickerbill] on the spoiler to wrap the air flow down onto the top of the box.
honestly you cant see anything out of the lower window. its horrible design. i already have it limo tinted. hyundai shouldve just done a tesla back

here's a quick photo shop idea for the top spoiler and the bottom spoiler underneath. ignore the quality. trying to extend the back of the car to pinch it a little more. thoughts?
Attached Thumbnails
Click image for larger version

Name:	ioniq pinch.jpg
Views:	51
Size:	97.9 KB
ID:	31879
  Reply With Quote
Old 04-08-2022, 01:22 PM   #77 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 28,557
Thanks: 8,092
Thanked 8,880 Times in 7,328 Posts
IMHO that would be called a 'Bonneneville-style' spoiler and a difusser, not a box cavity. It should see some percentage of the benefit.
__________________
.
.
Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster

____________________
.
.
Three conspiracy theorists walk into a bar --You can't say that is a coincidence.
  Reply With Quote
Old 04-08-2022, 03:26 PM   #78 (permalink)
EcoModding Lurker

Join Date: May 2013
Location: United States
Posts: 42

2020 Kia Niro EV - '20 Kia Niro EV
90 day: 151.63 mpg (US)
Thanks: 15
Thanked 16 Times in 14 Posts
Are the front bumper slots for aesthetics or air curtain?
  Reply With Quote
Old 04-08-2022, 03:41 PM   #79 (permalink)
Master EcoModder

Phase's Avatar

Join Date: Mar 2022
Location: oregon
Posts: 1,121

Black Bullet - '19 Hyundai Ioniq Hybrid Blue
Thanks: 1
Thanked 592 Times in 470 Posts
Quote:
Originally Posted by Rcnesneg View Post
Are the front bumper slots for aesthetics or air curtain?
Air curtains. They let air pass thru. I doubt Hyundai would’ve put them there just for looks when trying to beat the Prius for mpg
  Reply With Quote
Old 04-08-2022, 03:43 PM   #80 (permalink)
Master EcoModder

Phase's Avatar

Join Date: Mar 2022
Location: oregon
Posts: 1,121

Black Bullet - '19 Hyundai Ioniq Hybrid Blue
Thanks: 1
Thanked 592 Times in 470 Posts
Quote:
Originally Posted by freebeard View Post
IMHO that would be called a 'Bonneneville-style' spoiler and a difusser, not a box cavity. It should see some percentage of the benefit.
Improvement is improvement though. I wish I knew how much. Id also try to extend the sides too to get that more box cavity thing going. Just no idea how I’d do that realistically.

  Reply With Quote
