Old 05-04-2020, 10:03 PM   #41 (permalink)
EcoModding Lurker

Join Date: Dec 2016
Location: Florida
Posts: 75
Thanks: 14
Thanked 47 Times in 36 Posts
Quote:
Originally Posted by JulianEdgar View Post
The strakes I trialed are 410mm apart. I've seen production cars with strakes as far apart as the full diffuser width, all the way to being only about 75mm apart. In my book, page 95 and pages 183 - 185 have some good views of strakes in diffusers of production cars.

The plywood (both strakes and base) is 3mm thick. I didn't bother describing the assembly because it's shown in the third post in this thread - https://ecomodder.com/forum/showthre...tml#post622797

When it was in position, it was taped around all edges. The sheet was sized to be the same as the rear diffuser, which in this part is flat (ie not curved). I would guess the boundary layer as being something like 10mm thick at this point, so I can't see small discontinuities making much difference to anything. At their maximum, the strakes are 90mm deep.
So 410mm is a little over 16", wider then "norm" by my definition IMO, I also suspect many strakes on today's road cars/SUV's are often more cosmetic , kinda like the wings mounted an inch above the "boot". I also believe strakes more then two, are mainly to enhance DF goals, rather then reduce drag (when used for a performance goal not cosmetics), I don't know precisely.

Would a curved piece of PW been a more proper fit? I get that almost all testing accepts some compromises.

I totally agree 3mm would be hard to image as great impediment on this application, but also remember in aircraft wing tests, bug splatter is even detectable. The tape was visible in posted pics, so it was apparent you were likely trying to minimize any "discontinuities".

Regardless, something caused the increase in measured air pressure, and I can't still conclude it was only caused by the three strakes.

  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 05-05-2020, 01:00 AM   #42 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 16,068
Thanks: 4,218
Thanked 5,414 Times in 4,309 Posts
Off topic, but I really appreciate Structural technology at its finest. I've never seen an up-close examination of the truss work in the classic airships.

The 'flanged' holes are created by dimple dies.
__________________
.

Who controls the memes
Controls the Universe

_________________
  Reply With Quote
Old 05-05-2020, 02:38 AM   #43 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 496
Thanks: 36
Thanked 528 Times in 291 Posts
Quote:
Originally Posted by freebeard View Post
Off topic, but I really appreciate Structural technology at its finest. I've never seen an up-close examination of the truss work in the classic airships.

The 'flanged' holes are created by dimple dies.
Yes, the 1930s airships are just stupendous. If postage didn't cost me an arm and leg, I'd send you a gratis copy of my Discovering Engineering that Changed the World book. I think you'd love it. Lots of really cool stuff - the chapter on airships also covers hovercraft, another incredible technology.
__________________
Modifying the Aerodynamics of Your Road Car

A really good book that should be added to the library of everyone working in automotive aerodynamics, as well as those making car aero modifications at home. - Rob Palin, former Tesla aerodynamicist
  Reply With Quote
The Following User Says Thank You to JulianEdgar For This Useful Post:
freebeard (05-05-2020)
Old 05-05-2020, 03:01 AM   #44 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 496
Thanks: 36
Thanked 528 Times in 291 Posts
I built the proper versions of the Edgarwits aerofoil air curtains today.

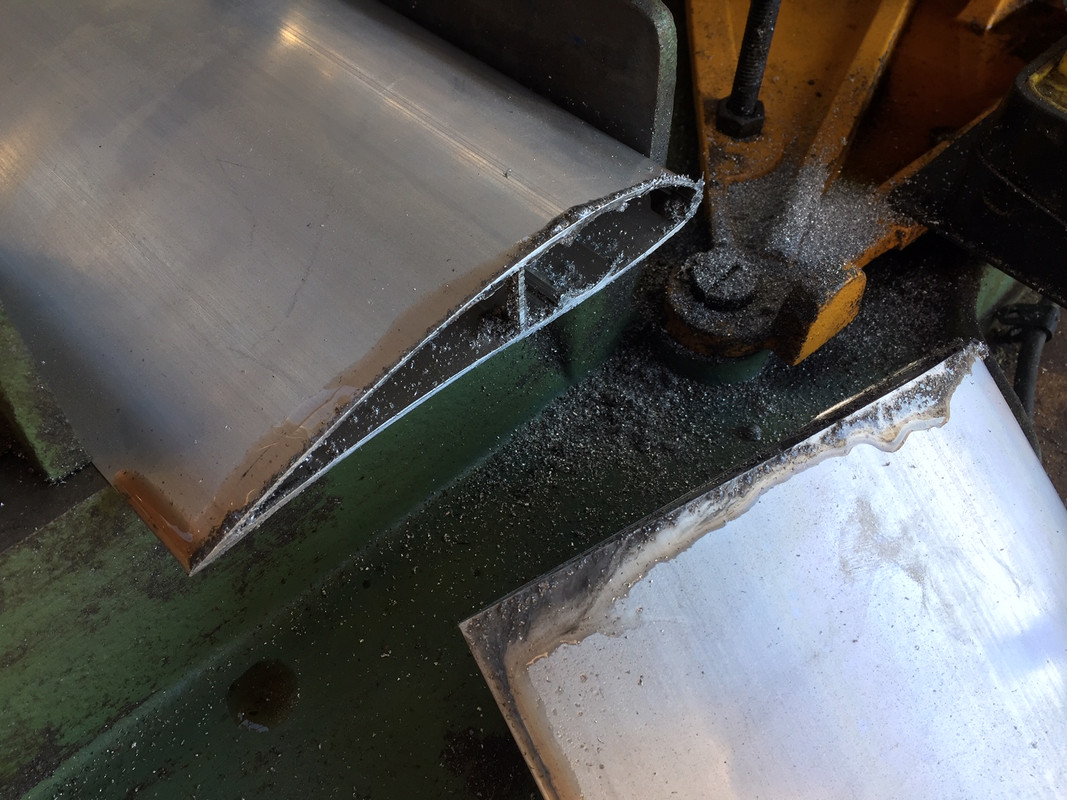

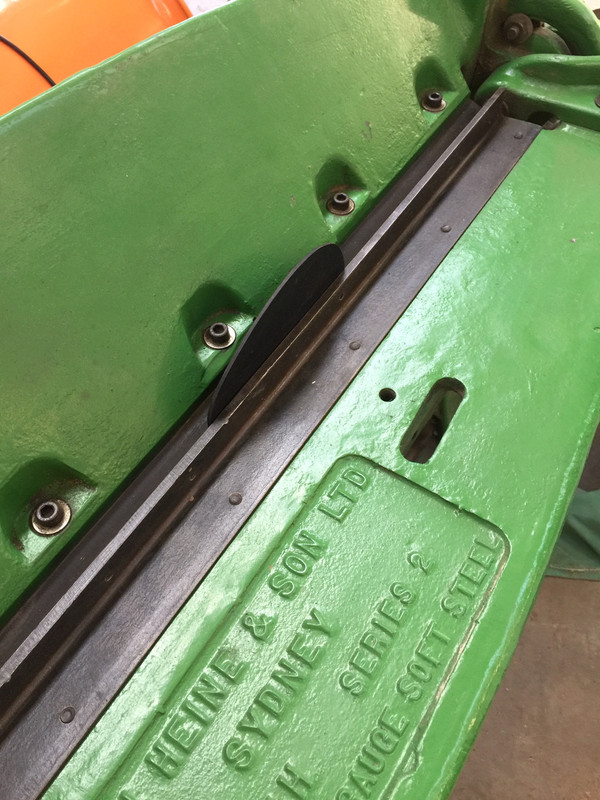

Cutting the GOE222 aluminum extrusion to length. If you were careful you could use just a hacksaw.


Note the proper aerofoil profile.

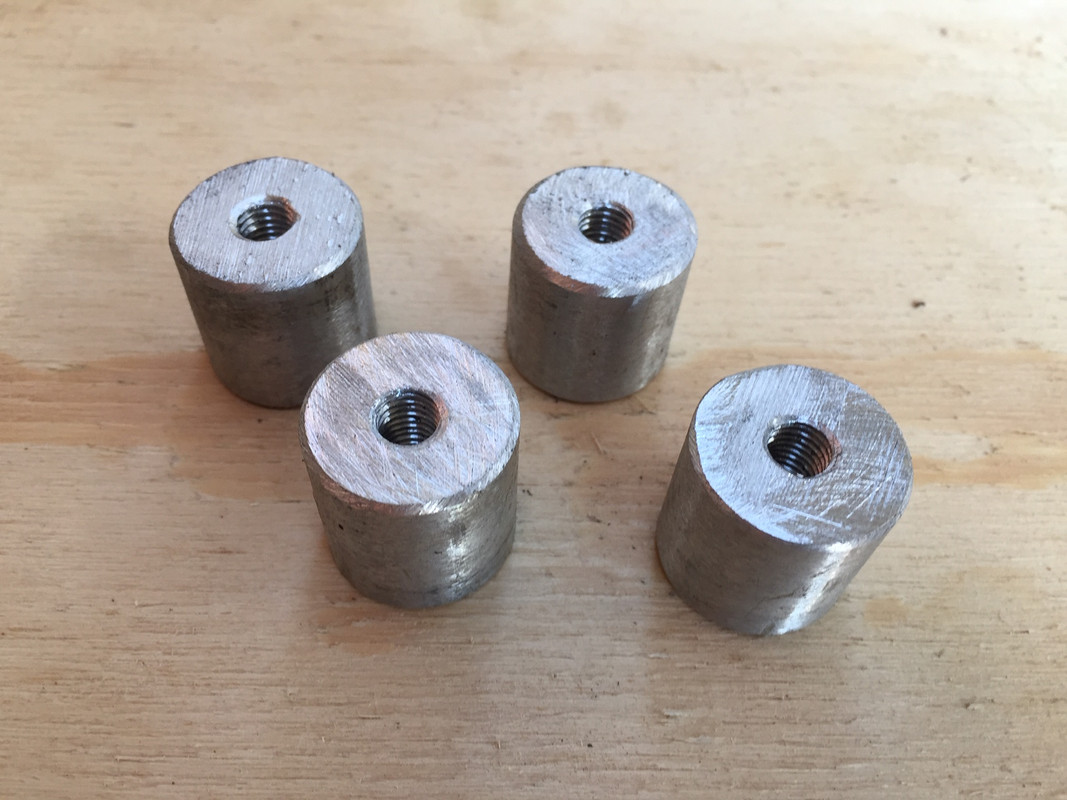

The drilled and tapped aluminum spuds that fit into the 25mm openings in the extrusion. Buying 25mm (1 inch) bar would make this easier.



The spuds glued into place. I used threadlock - ie an anaerobic adhesive.



Marking out and then cutting the 3mm ABS end plates (same material as my front undertray). This material is easy to 'work' with normal tools.



Folding a flange on the heated ABS. (Could have just used blocks of wood.)

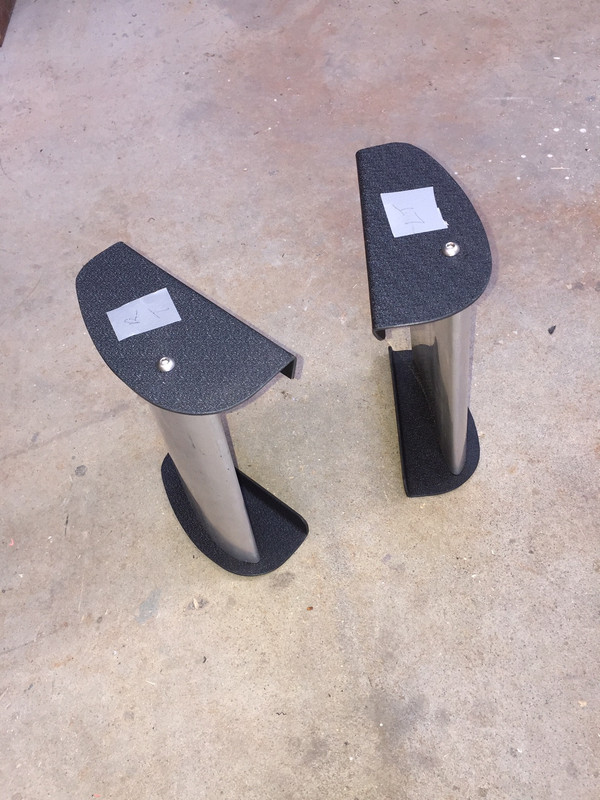

The two finished Edgarwits. Each end plate is different so they all needed to be labelled.

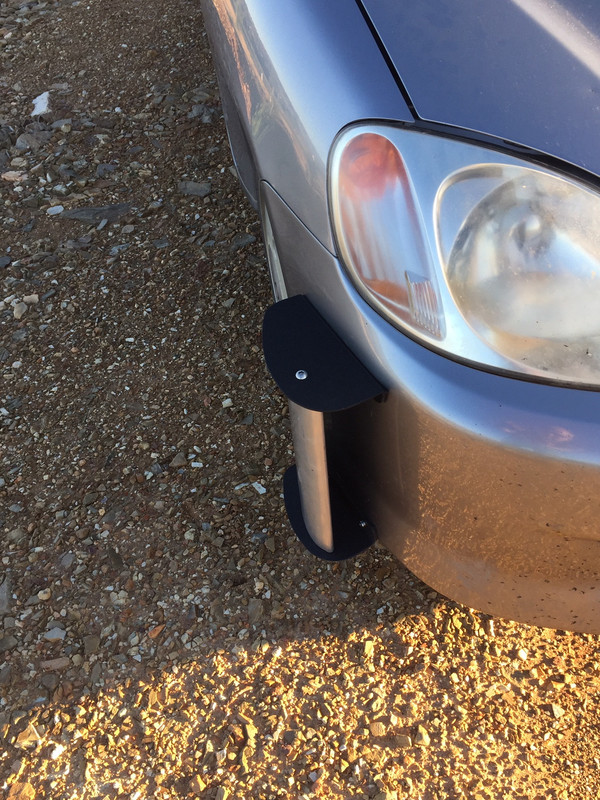

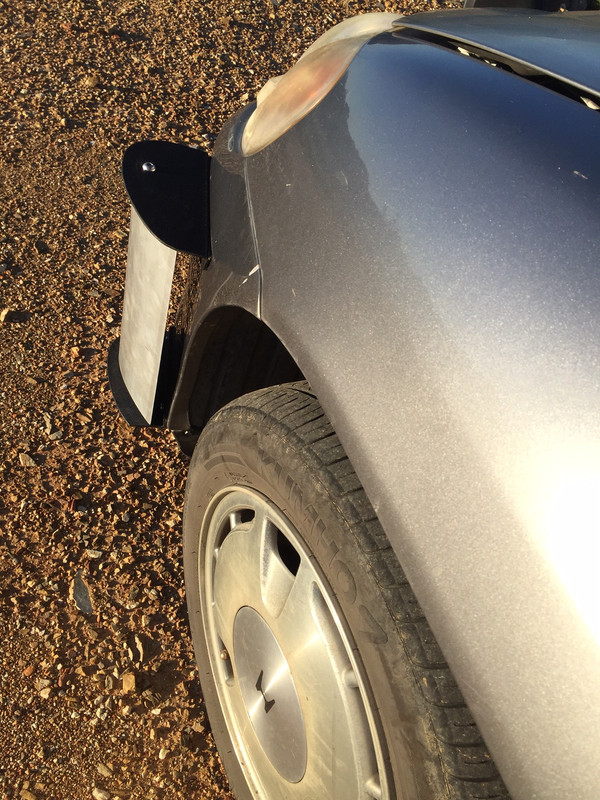

Attaching the bottom end plate of the LH side. Note the rubber seal that fills the gap between the straight flange and the slightly curved bumper.

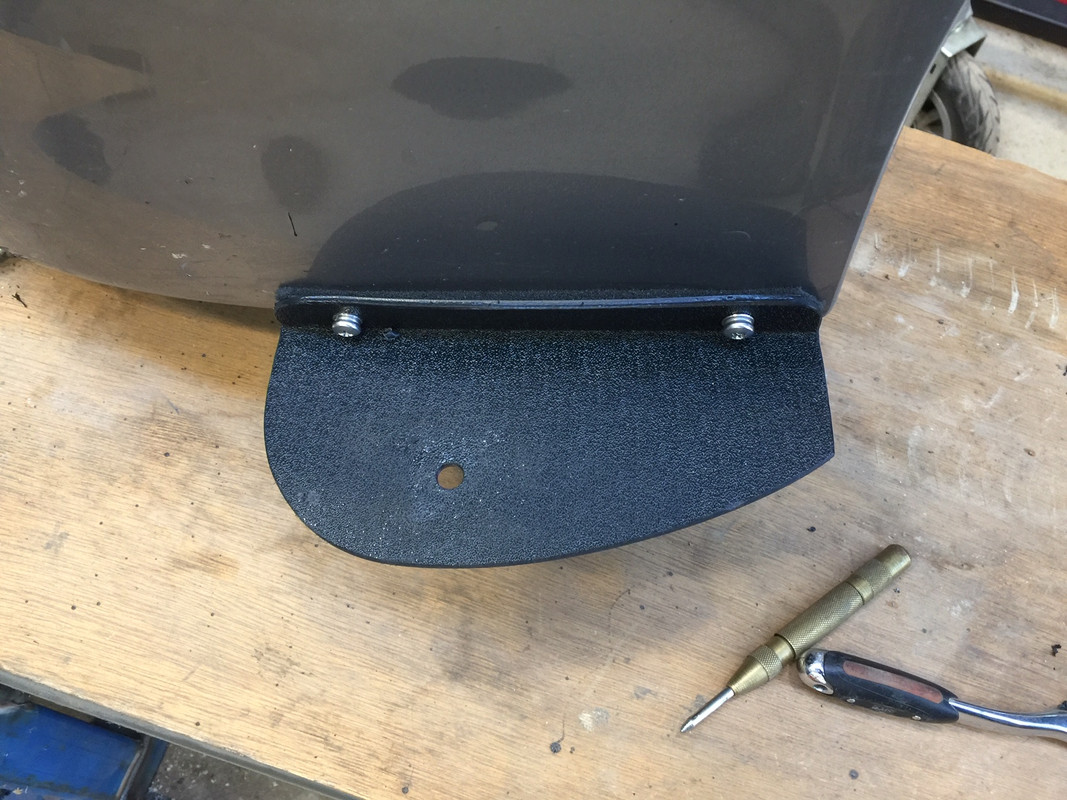

Inside view of bumper. Washers and Nyloc nuts. Don't want to lose a second pair!
__________________
Modifying the Aerodynamics of Your Road Car

A really good book that should be added to the library of everyone working in automotive aerodynamics, as well as those making car aero modifications at home. - Rob Palin, former Tesla aerodynamicist
  Reply With Quote
The Following User Says Thank You to JulianEdgar For This Useful Post:
Gasoline Fumes (05-05-2020)
Old 05-05-2020, 03:06 AM   #45 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 496
Thanks: 36
Thanked 528 Times in 291 Posts

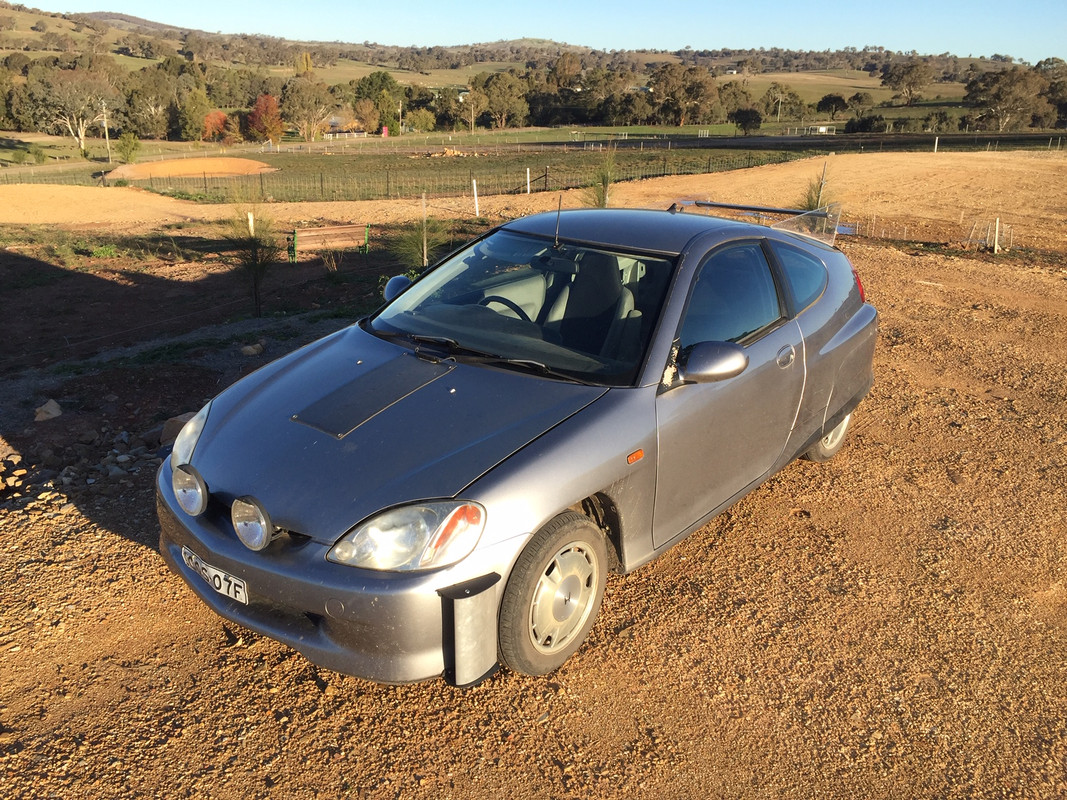

Now for some more throttle-stop testing, including in windy conditions. The aerofoil is easily removed for A/B testing (but not the sideplates).
