Old 09-27-2020, 05:19 PM   #11 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 991
Thanks: 62
Thanked 863 Times in 563 Posts
Quote:
Originally Posted by freebeard View Post

That is the most awesome article: "Also, the massive wheel arches stiffen the carís suspension and lower and widen it, increasing the centre of gravity."

That's one to remember!

  Reply With Quote
The Following User Says Thank You to JulianEdgar For This Useful Post:
freebeard (09-27-2020)
Alt Today
Popular topics

Other popular topics in this forum...


Old 09-27-2020, 05:25 PM   #12 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 17,184
Thanks: 4,602
Thanked 5,751 Times in 4,586 Posts
I noticed but forget to quote that part. Thanks.
__________________
.

We are operating at an overall mechanical efficiency of only four percentÖ Therefore, we find that if we increase the overall mechanical efficiency to only twelve percent we can take care of everybody. That three-fold increase in the overall efficiency can only be accomplished by redesign. Ė R. Buckminster Fuller

_________________
  Reply With Quote
Old 09-27-2020, 08:17 PM   #13 (permalink)
Master EcoModder

Join Date: Jun 2016
Location: WV
Posts: 1,165

IGL - '04 Saturn Ion
Team Saturn
90 day: 56.19 mpg (US)

grayOS (personal use) - '19 Mitsubishi Outlander Sport ES
90 day: 30.71 mpg (US)
Thanks: 55
Thanked 282 Times in 218 Posts
I appreciate the input! The main aero benefit I can see coming from the rear panels would be to extend them rearward to break up the large radius of the back of the car for smoother detachment, and the tiny benefit from having wheel skirts in the first place. The front panels would be harder to justify, the only real utilization being that the leading edge could be extended forward to form the inlet of a full height wheel air curtain and possibly some partial skirting of the wheelwell, near the top of the tire
__________________
My current Ecotec project...


My last Ecotec project...
  Reply With Quote
Old 09-27-2020, 08:43 PM   #14 (permalink)
Ecomodding amateur

M_a_t_t's Avatar

Join Date: Nov 2015
Location: Indiana
Posts: 481

The Van - '95 Chevy Astro Cl
Team Chevy
90 day: 16.39 mpg (US)

The new bike - '17 Kawasaki Versys X 300 abs
Motorcycle
90 day: 64.78 mpg (US)

The Mercury - '95 Mercury Tracer Trio
Team Ford
90 day: 34.51 mpg (US)
Thanks: 80
Thanked 171 Times in 127 Posts
Have you heard of separation edges ( https://ecomodder.com/forum/fuel-eco...cations.php#49 ) and wheel arch gap fillers (https://ecomodder.com/forum/fuel-eco...cations.php#39 )?

This appears to be what you are describing.
__________________
Věci zŪskŠvajŪ svou skutečnou krŠsu pouze ve vztahu k naöemu ěivotu
-JiřŪ Mucha (1915-1991), Publicist

My herd includes:
1973 Fiat 124 Special
1975 Honda Civic CVCC 4spd
1981 Kawasaki KZ750E
1981 Kawasaki KZ650 CSR
1983 Kawasaki KZ1100-A3
1986 Nissan 300zx Turbo 5 spd
1995 Chevy Astro RWD
1995 Mercury Tracer
2004 Chevy Astro AWD
2017 Kawasaki VersysX 300

https://www.youtube.com/channel/UC6s...LulDUQ8HMj5VKA
  Reply With Quote
Old 09-27-2020, 08:49 PM   #15 (permalink)
Master EcoModder

Join Date: Jun 2016
Location: WV
Posts: 1,165

IGL - '04 Saturn Ion
Team Saturn
90 day: 56.19 mpg (US)

grayOS (personal use) - '19 Mitsubishi Outlander Sport ES
90 day: 30.71 mpg (US)
Thanks: 55
Thanked 282 Times in 218 Posts
I have separation edges on my bumper but they arenít full height and arenít as well designed as Iíd like. I could make a gap filler for the front wheelwell (though I could make them more aggressive for the over fenders
Attached Thumbnails
Click image for larger version

Name:	60E4A4D5-1305-4D1D-BE4C-37CD700772E0.jpeg
Views:	88
Size:	121.5 KB
ID:	29227
__________________
My current Ecotec project...


My last Ecotec project...
  Reply With Quote
Old 09-28-2020, 01:25 AM   #16 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 991
Thanks: 62
Thanked 863 Times in 563 Posts
Quote:
Originally Posted by 19bonestock88 View Post
I have separation edges on my bumper but they arenít full height and arenít as well designed as Iíd like. I could make a gap filler for the front wheelwell (though I could make them more aggressive for the over fenders


Those standard upper separation edges look fine to me! If you haven't already, under the car is where you could achieve much greater gains than with the mods you are describing.
  Reply With Quote
Old 09-28-2020, 01:39 AM   #17 (permalink)
Master EcoModder

Join Date: Jun 2016
Location: WV
Posts: 1,165

IGL - '04 Saturn Ion
Team Saturn
90 day: 56.19 mpg (US)

grayOS (personal use) - '19 Mitsubishi Outlander Sport ES
90 day: 30.71 mpg (US)
Thanks: 55
Thanked 282 Times in 218 Posts
I added the rear lip from a Saab 9-3 to take advantage of its factory underfloor on the passenger side but I really need to work on my underbody. I used to have a front belly pan and mid pans but they were lost one winter and I havenít replaced them yet. I had planned to do a splitter/diffuser setup when Iím done working on suspension/powertrain mods, but I might push that forward
Attached Thumbnails
Click image for larger version

Name:	C55FC0BB-48D7-45E7-8C05-C39236D92DF6.jpeg
Views:	38
Size:	136.5 KB
ID:	29228
__________________
My current Ecotec project...


My last Ecotec project...
  Reply With Quote
Old 09-28-2020, 01:44 AM   #18 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 991
Thanks: 62
Thanked 863 Times in 563 Posts
Quote:
Originally Posted by 19bonestock88 View Post
I added the rear lip from a Saab 9-3 to take advantage of its factory underfloor on the passenger side but I really need to work on my underbody. I used to have a front belly pan and mid pans but they were lost one winter and I havenít replaced them yet. I had planned to do a splitter/diffuser setup when Iím done working on suspension/powertrain mods, but I might push that forward
Plenty you can do under there... and never use a splitter with a diffuser! (You want air to go under the car, not stop it.)
  Reply With Quote
Old 09-28-2020, 02:07 AM   #19 (permalink)
Master EcoModder

Join Date: Jun 2016
Location: WV
Posts: 1,165

IGL - '04 Saturn Ion
Team Saturn
90 day: 56.19 mpg (US)

grayOS (personal use) - '19 Mitsubishi Outlander Sport ES
90 day: 30.71 mpg (US)
Thanks: 55
Thanked 282 Times in 218 Posts
I didn’t plan for much other than a ledge protruding out from the bottom of the bumper (an inch or two) to aid in separating the flow that goes over the top of the car, from the air going under it. I used to have a fairly deep air dam but when I switched to the Ion Redline nose I didn’t carry it over. The only other goal for the car (other than low drag and exceptional mileage) is for it to be fairly quick. I drive it really hard from time to time and high speed stability and engine cooling is very important. If I can reduce lift while I’m reducing drag I’m all for it
__________________
My current Ecotec project...


My last Ecotec project...
  Reply With Quote
Old 09-28-2020, 02:23 AM   #20 (permalink)
Master EcoModder

Join Date: Nov 2017
Location: Australia
Posts: 991
Thanks: 62
Thanked 863 Times in 563 Posts
Quote:
Originally Posted by 19bonestock88 View Post
I didnít plan for much other than a ledge protruding out from the bottom of the bumper (an inch or two) to aid in separating the flow that goes over the top of the car, from the air going under it.
You want as much air flowing under the smooth underside of the car as possible, and a splitter moves the 'separation line' downwards, ie more air then goes over the top of the car.

Quote:
I used to have a fairly deep air dam but when I switched to the Ion Redline nose I didnít carry it over.
Again, you want lots of air under the car. Stopping airflow going under the car is about 30 years out of date!

Quote:
The only other goal for the car (other than low drag and exceptional mileage) is for it to be fairly quick. I drive it really hard from time to time and high speed stability and engine cooling is very important. If I can reduce lift while Iím reducing drag Iím all for it
My road-car Gen 1 Honda Insight develops measured downforce, and that is effective from about 100 km/h (60 mph) upwards. The car does a GPS-measured 200 km/h (124 mph) - and that's on a shortish straight, not max speed. Almost all of the downforce is achieved by working under the car ie undertrays and diffuser.

High-speed stability is best achieved by moving the lateral centre of pressure rearwards, ie rear fins or a rear wing with large endplates.

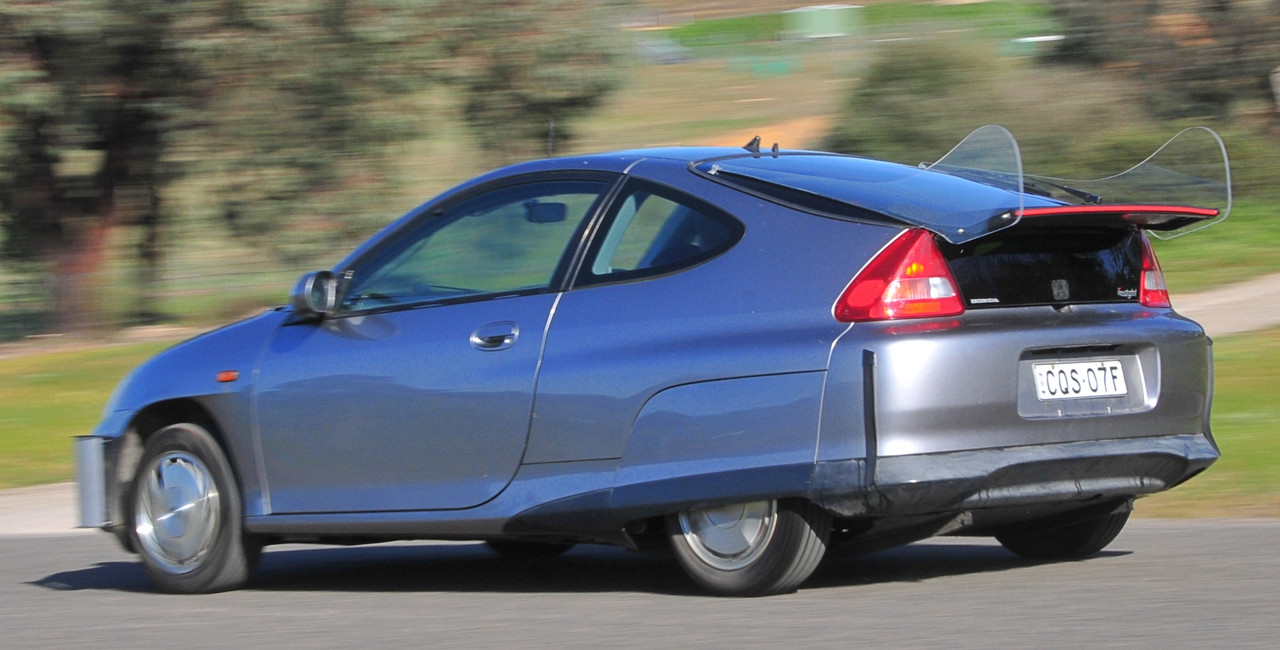

My Insight:


  Reply With Quote
The Following User Says Thank You to JulianEdgar For This Useful Post:
COcyclist (10-15-2020)
