Old 12-09-2019, 11:42 PM   #11 (permalink)
EcoModding Lurker

Join Date: Nov 2019
Location: Quinte West, Ontario, Canada
Posts: 20

Dimples - '07 Ford Ranger Sport
90 day: 18.28 mpg (US)
Thanks: 0
Thanked 5 Times in 4 Posts
That is a huge cap.. Mine is 254 pounds and its fiberglass.. I'd wager that has to be close if not more.

Does it extend over the sides of the cab much? Do you have a front picture?

  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 12-10-2019, 12:32 AM   #12 (permalink)
EcoModding Lurker

Join Date: Mar 2018
Location: Hartford, CT
Posts: 42
Thanks: 12
Thanked 40 Times in 27 Posts
Quote:
Originally Posted by Plasmajab View Post
That is a huge cap.. Mine is 254 pounds and its fiberglass.. I'd wager that has to be close if not more.

Does it extend over the sides of the cab much? Do you have a front picture?
I did take a front pic, but canít open the hosting site to retrieve it at the moment. Iíll add it when I can by editing this post or making a fresh one.

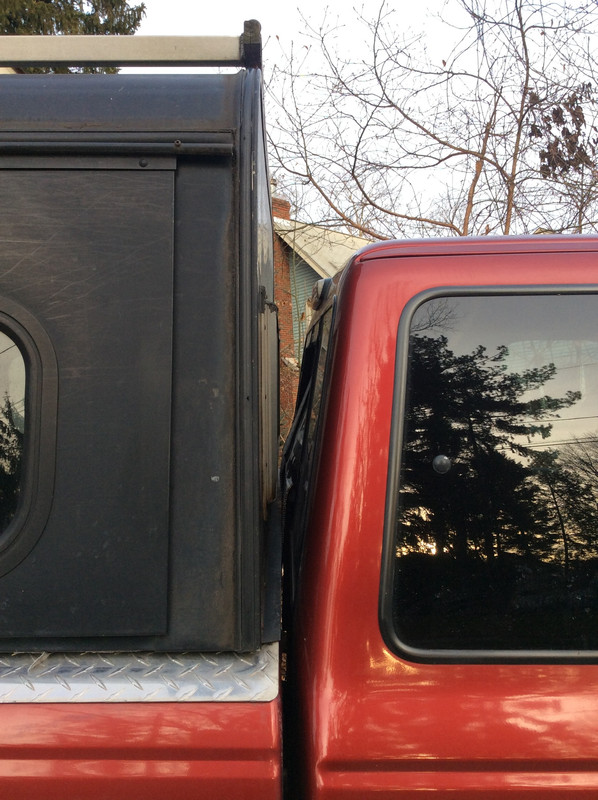

The cap is about 1Ē narrower than the cab at the leading edge of the bed. From there it tapers at a steeper angle than the cab, so it protrudes a couple of inches from the top of the cab. This cap was originally on a 2004 Tacoma, so some of the fitment anomalies could be due to that, though it didnít match the Taco cab especially well, either. I suspect A.R.E. makes the roof panel the same size across the DCU line, so the sides get more vertical if a raised roof is specíd.

My longer-term plans are to narrow and change the roof panel so that the sides lean in and the cap tucks in behind the cab proper. This will be a major de/reconstruction of the cap to optimize its work/play/travel roles. Iím accumulating parts and materials for now in hopes of diving deeper into the project this coming spring. I worked for over a decade making signs and awnings with 1Ēx1Ē square aluminum tubing, so Iím very familiar with the material and look forward to tweaking this cap to my liking.

Later in the week, Iíll post some sketches of what Iím thinking about.
  Reply With Quote
The Following User Says Thank You to Interstatement For This Useful Post:
aerohead (12-11-2019)
Old 12-10-2019, 03:19 AM   #13 (permalink)
Not Doug

Xist's Avatar

Join Date: Jun 2012
Location: Show Low, AZ
Posts: 10,037

Chorizo - '00 Honda Civic HX, baby! :D
90 day: 35.35 mpg (US)

Mid-Life Crisis Fighter - '99 Honda Accord LX
90 day: 32.86 mpg (US)
Thanks: 6,669
Thanked 1,914 Times in 1,456 Posts
Square rear edges appeared on Civics because they aided separation, but rounded front corners will aid attachment.
__________________
"Oh if you use math, reason, and logic you will be hated."--OilPan4
  Reply With Quote
The Following 3 Users Say Thank You to Xist For This Useful Post:
aerohead (12-11-2019), Ecky (02-24-2020), MetroMPG (12-12-2019)
Old 12-10-2019, 01:14 PM   #14 (permalink)
PSmodder lurker

Join Date: Jan 2009
Location: Chino
Posts: 1,568
Thanks: 24
Thanked 861 Times in 496 Posts
Cool deflector ideas; DIY or sold

http://www.wanderthewest.com/forum/u...153_190123.jpg

https://i.pinimg.com/originals/73/5e...638f2f93a6.jpg



https://www.bigredcaravanparts.com.a...47138_zoom.png

http://www.fiberglassrv.com/forums/a...1&d=1340623454

https://i.pinimg.com/originals/97/87...357a9dec4c.jpg
  Reply With Quote
The Following User Says Thank You to botsapper For This Useful Post:
aerohead (12-11-2019)
Old 12-10-2019, 02:06 PM   #15 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 17,577
Thanks: 4,745
Thanked 5,852 Times in 4,669 Posts
The first two would be effective if they were boxed in on the sides, but those red arrows that don't respect The Template? Ridiculous.
__________________
.

Andrej Karpathy: If you bombard Earth with photons long enough eventually it will emit a Tesla.

_________________
  Reply With Quote
The Following User Says Thank You to freebeard For This Useful Post:
aerohead (12-11-2019)
Old 12-11-2019, 12:10 PM   #16 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 11,814
Thanks: 19,042
Thanked 6,101 Times in 3,743 Posts
deflector

Quote:
Originally Posted by freebeard View Post
The first two would be effective if they were boxed in on the sides, but those red arrows that don't respect The Template? Ridiculous.
I built one for AeroStealth's 4RUNNER/APEX rig and it showed zero difference in mpg.It as embedded within the separation bubble preceding the APEX's nose.
Only a gap-filled,bulbous modification would have made a diifference.
__________________
Photobucket album: http://s1271.photobucket.com/albums/jj622/aerohead2/
  Reply With Quote
The Following 2 Users Say Thank You to aerohead For This Useful Post:
freebeard (12-11-2019), Interstatement (12-16-2019)
Old 12-16-2019, 12:16 AM   #17 (permalink)
EcoModding Lurker

Join Date: Mar 2018
Location: Hartford, CT
Posts: 42
Thanks: 12
Thanked 40 Times in 27 Posts
Here is a front view of the steep angle of the cap. Long term plan is to nip and tuck the angle inward so that it matches that of the truck cab and no longer protrudes thusly.

  Reply With Quote
The Following User Says Thank You to Interstatement For This Useful Post:
aerohead (12-18-2019)
Old 12-16-2019, 12:19 AM   #18 (permalink)
EcoModding Lurker

Join Date: Mar 2018
Location: Hartford, CT
Posts: 42
Thanks: 12
Thanked 40 Times in 27 Posts
The other goals at the front end are to remove the protruding lip at the bottom, replace the protruding window with a more flush-mounted one from another cap, and angle the front of the cap to better match the cab.

  Reply With Quote
The Following User Says Thank You to Interstatement For This Useful Post:
aerohead (12-18-2019)
Old 12-16-2019, 12:32 AM   #19 (permalink)
EcoModding Lurker

Join Date: Mar 2018
Location: Hartford, CT
Posts: 42
Thanks: 12
Thanked 40 Times in 27 Posts
Here's a quick doodle of the elaborate ending I'm dreaming up. The sides lean in, the front angles forward, enabling it to slide a couple of inches forward from where it currently sits (note rear overhang), the top gets cut out and braced with a removable crossmember across the rear and a front-hinged fiberglass tonneau (which I already have from a previous Ranger iteration) attaches to the top. I either need to narrow my tonneau or swap it for a narrower one from a step-side Ranger if that width works as-is (obviously much less work. Front-hinged cargo box will mount on roof rack tracks and hinge forward similar to a 1968-1973 Westfalia camper pop top, using the same seal for the edges.

The tonneau would serve two purposes:
1) can be opened or removed to accommodate tall items.
2) A three sided tent (think VW Westfalia pop top) snaps in for an airy camping setup.

  Reply With Quote
The Following 5 Users Say Thank You to Interstatement For This Useful Post:
aerohead (12-18-2019), BamZipPow (12-18-2019), freebeard (12-16-2019), MetroMPG (04-21-2020), slowmover (12-27-2019)
Old 12-16-2019, 02:27 AM   #20 (permalink)
(:

Frank Lee's Avatar

Join Date: Jan 2008
Location: up north
Posts: 12,741

Blue - '93 Ford Tempo
Last 3: 27.29 mpg (US)

F150 - '94 Ford F150 XLT 4x4
90 day: 18.5 mpg (US)

Sport Coupe - '92 Ford Tempo GL
Last 3: 69.62 mpg (US)

ShWing! - '82 honda gold wing Interstate
90 day: 33.65 mpg (US)

Moon Unit - '98 Mercury Sable LX Wagon
90 day: 21.24 mpg (US)
Thanks: 1,573
Thanked 3,510 Times in 2,197 Posts
Looks like starting from scratch to get what you want would be easier.

__________________


  Reply With Quote
The Following 2 Users Say Thank You to Frank Lee For This Useful Post:
Fat Charlie (12-16-2019), freebeard (12-16-2019)
