Hot-wire cutting foam for aero-mods

Does anyone have experience with hot-wire cutting in terms of using it to cut foam for aerodynamic modifications to cars?

I have this idea about making a pickup truck cap out of a bunch of of sheets of 4" thick white styrofoam that I rescued from a dumpster.

I would stack them up, and then "sculpt" them into shape with a hot-wire cutter.

I had a dead toaster, so I took it aparts, ran a section of the heater wire between two screws on a non-conductive wood frame (sort of like a bow-saw), and put power to it through a lighting dimmer.

At about 250 watts, the wire glows a nice warm orange and slices fantastic through the foam.

The big drawback I have noticed, it that even though the wire is taut when cold, it droops and goes slack when warm. This makes it hard to cut a straight line! Perhaps I can add a small spring to keep the wire tight whether it's hot or cold?

Anyone have experience with a hotwire cutter and can give any advice?

(I am running this through a proper fuse-box, a GFI outlet, a dimmer switch to control current, and know better than to touch it!)

Ok, so, any advice other than "Please don't electricute yerself!"?

__________________


300mpg.org Learn how to BUILD YOUR OWN ELECTRIC CAR CHEAP
My YouTube Videos
  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 06-24-2011, 03:16 PM   #2 (permalink)
Master EcoModder

Join Date: Nov 2008
Location: 18603, USA
Posts: 759

The Crimson Crawler - '04 Hyundai Elantra GLS
90 day: 36.71 mpg (US)
Thanks: 221
Thanked 60 Times in 45 Posts
Perhaps some sort of tensioner like a guitar tuner? Turn a geared knob to tension the wire?
  Reply With Quote
Old 06-24-2011, 03:19 PM   #3 (permalink)
T-100 Road Warrior

BamZipPow's Avatar

Join Date: Apr 2008
Location: The Woodlands, TX
Posts: 1,920

BZP T-100 (2010) - '98 Toyota T-100 ext cab - 3.4L/auto SR5
Last 3: 24 mpg (US)

BZP T-100 (2011) - '98 Toyota T-100 ext cab - 3.4L/auto SR5
Last 3: 23.66 mpg (US)

BZP T-100 (2009) - '98 Toyota T-100 ext cab - 3.4L/auto SR5
Last 3: 19.01 mpg (US)

BZP T-100 (2012) - '98 Toyota T-100 ext cab - 3.4L/auto SR5
Last 3: 25.45 mpg (US)

BZP T-100 (2013) - '98 Toyota T-100 SR5
Last 3: 25.79 mpg (US)

BZP T-100 (2014) - '98 Toyota T-100 SR5
Last 3: 23.18 mpg (US)

BZP T-100 (2015) - '98 Toyota T-100 SR5
Last 3: 23.85 mpg (US)

BZP T-100 (2016) - '98 Toyota T-100 SR5
Last 3: 17.62 mpg (US)

BZP T-100 (2017) - '98 Toyota T-100 SR5
90 day: 20.78 mpg (US)

BZP T-100 (2018) - '98 Toyota T-100 SR5
90 day: 20.19 mpg (US)

BZP T-100 (2019) - '98 Toyota T-100 SR5

BZP T-100 (2020) - '98 Toyota T-100 SR5

2012 Scion iQ - '12 Scion iQ Base
Thanks: 3,479
Thanked 1,395 Times in 968 Posts
Send a message via ICQ to BamZipPow
You can put in a tensioner so you can tighten up the slack after the wire heats up. Keep in mind that you don't want to put too much tension on the wire as it will stretch and even break if under too much stress (pulling too fast).

Here's a good example on Instructables...
Hot wire foam cutter
__________________
Dark Aero-The world's first aerodynamic single wheel boat tail!

  Reply With Quote
Old 06-24-2011, 03:36 PM   #4 (permalink)
T-100 Road Warrior

BamZipPow's Avatar

Join Date: Apr 2008
Location: The Woodlands, TX
Posts: 1,920

BZP T-100 (2010) - '98 Toyota T-100 ext cab - 3.4L/auto SR5
Last 3: 24 mpg (US)

BZP T-100 (2011) - '98 Toyota T-100 ext cab - 3.4L/auto SR5
Last 3: 23.66 mpg (US)

BZP T-100 (2009) - '98 Toyota T-100 ext cab - 3.4L/auto SR5
Last 3: 19.01 mpg (US)

BZP T-100 (2012) - '98 Toyota T-100 ext cab - 3.4L/auto SR5
Last 3: 25.45 mpg (US)

BZP T-100 (2013) - '98 Toyota T-100 SR5
Last 3: 25.79 mpg (US)

BZP T-100 (2014) - '98 Toyota T-100 SR5
Last 3: 23.18 mpg (US)

BZP T-100 (2015) - '98 Toyota T-100 SR5
Last 3: 23.85 mpg (US)

BZP T-100 (2016) - '98 Toyota T-100 SR5
Last 3: 17.62 mpg (US)

BZP T-100 (2017) - '98 Toyota T-100 SR5
90 day: 20.78 mpg (US)

BZP T-100 (2018) - '98 Toyota T-100 SR5
90 day: 20.19 mpg (US)

BZP T-100 (2019) - '98 Toyota T-100 SR5

BZP T-100 (2020) - '98 Toyota T-100 SR5

2012 Scion iQ - '12 Scion iQ Base
Thanks: 3,479
Thanked 1,395 Times in 968 Posts
Send a message via ICQ to BamZipPow
Good web page on hot wire cutting...
Hot Wire Foam Cutter Info.com
__________________
Dark Aero-The world's first aerodynamic single wheel boat tail!

  Reply With Quote
Old 06-24-2011, 03:51 PM   #5 (permalink)
EV test pilot

bennelson's Avatar

Join Date: Jan 2008
Location: Oconomowoc, WI, USA
Posts: 4,435

Electric Cycle - '81 Kawasaki KZ440
90 day: 334.6 mpg (US)

S10 - '95 Chevy S10
90 day: 30.48 mpg (US)

Electro-Metro - '96 Ben Nelson's "Electro-Metro"
90 day: 129.81 mpg (US)

The Wife's Car - Plug-in Prius - '04 Toyota Prius
90 day: 78.16 mpg (US)
Thanks: 17
Thanked 663 Times in 388 Posts
I remember reading that Instructable a while back. I like the yard-stick-bow-saw design.

Maybe something like that with just a long, light spring on the bottom.
The spring on the bottom would force the top ends of the sticks apart, and the spring would be AWAY FROM the hot/electric components.

I don't think a guitar-tuner-type tensioner would work. The wire tightens and slacks very quickly when power is applied or turned-off.

I'm just playing around to learn right now, but when I am done, I might want something like a 5' long, hand-held cutter. That way, I could make a single cut all the way down one side at a time across the back of a pickup truck.
__________________


300mpg.org Learn how to BUILD YOUR OWN ELECTRIC CAR CHEAP
My YouTube Videos
  Reply With Quote
Old 06-25-2011, 02:11 AM   #6 (permalink)
Master EcoModder

Join Date: Nov 2009
Location: Leadville, CO
Posts: 509

Maroon Ballon - '98 Chrysler Town & Country LXI
90 day: 26.42 mpg (US)

MaEsTRO - '95 Geo Metro 5spd hatch, 3 cyl
Thanks: 47
Thanked 54 Times in 38 Posts
I think the problem with a guitar tuner is that after you tighten it up, when it's time to cool down the hot wire will want to contract, and might very likely break.
Maybe if the bow were made of something really like a bow - like maybe bamboo -then as the wire heats the bamboo bow will take up the extra slack.

Maybe?
  Reply With Quote
Old 06-25-2011, 01:14 PM   #7 (permalink)
Do more with less

Join Date: Jul 2010
Location: North Eastern Missouri
Posts: 930

OD - '05 Ford Econoline
90 day: 18.64 mpg (US)

Joetta - '86 Volkswagen Jetta Turbo Oil Burner
TEAM VW AUDI Group
90 day: 49.71 mpg (US)

Benzilla - '85 Mercedes Benz 300D
90 day: 28.08 mpg (US)
Thanks: 66
Thanked 177 Times in 112 Posts
I made one a year or two ago. I used some stainless wire safety wire that I had around and tensioned it with a door spring for the same reason as you mentioned. My spring is about 3/4" diameter and 6" long. I powered about 26-28" of wire.

I used a board with end boards to space the wire off the neck board.

I powered it with a 12v 6a battery charger after testing it on the 2a setting first.

Of course the wire stretches because it gets hot. If I went too fast it would still bow some.
__________________
“The further a society drifts from the truth, the more it will hate those that speak it.” George Orwell

“Before a standing army can rule, the people must be disarmed; as they are in almost every kingdom in Europe.

The supreme power in America cannot enforce unjust laws by the sword; because the whole body of the people are armed.”

Noah Webster, 1787
  Reply With Quote
Old 06-25-2011, 06:07 PM   #8 (permalink)
Master Ecomadman

arcosine's Avatar

Join Date: Nov 2010
Location: Chicago area
Posts: 1,149

sc1 - '98 saturn sc1
Team Saturn
90 day: 43.17 mpg (US)

Airplane Bike - '11 home built Carp line Tour

rans - '97 rans tailwind

tractor - '66 International Cub cadet 129

2002 Space Odyssey - '02 Honda Odyssey EX-L
90 day: 28.25 mpg (US)

red bug - '00 VW beetle TDI

big tractor - '66 ford 3400

red vw - '00 VW new beetle TDI
90 day: 58.42 mpg (US)

RV - '88 Winnebago LeSharo
90 day: 16.67 mpg (US)
Thanks: 20
Thanked 333 Times in 225 Posts
Yes, I used welding wire. Made a bow that kept hot wire tight.
__________________
- Tony

  Reply With Quote
Old 06-25-2011, 07:27 PM   #9 (permalink)
Do more with less

Join Date: Jul 2010
Location: North Eastern Missouri
Posts: 930

OD - '05 Ford Econoline
90 day: 18.64 mpg (US)

Joetta - '86 Volkswagen Jetta Turbo Oil Burner
TEAM VW AUDI Group
90 day: 49.71 mpg (US)

Benzilla - '85 Mercedes Benz 300D
90 day: 28.08 mpg (US)
Thanks: 66
Thanked 177 Times in 112 Posts

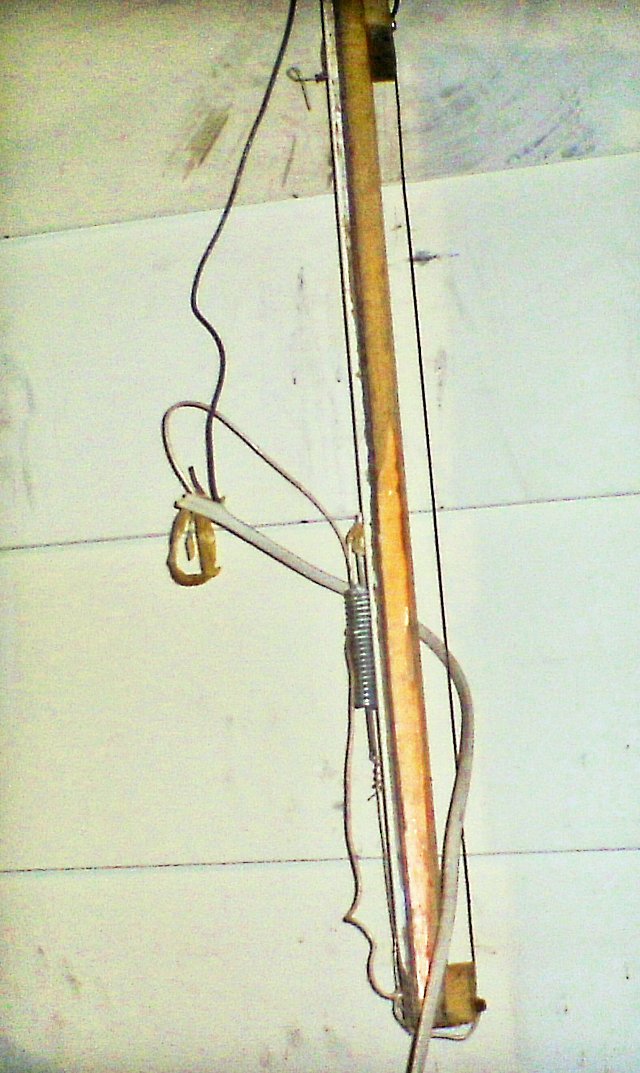

I made mine like this to cut up a block of foam back into strips.
