Old 02-28-2018, 09:38 AM   #2622 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 3,473
Thanks: 13
Thanked 2,245 Times in 1,571 Posts
Quote:
Originally Posted by Frank Lee View Post
Thanks for the link Frank Lee.

From his first entry:
Quote:
It will be an ongoing project that probably won't end until the car is completely destroyed.
At least he had a good sense of humor about it, and hopefully still does.
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html
  Reply With Quote
Old 03-06-2018, 04:55 AM   #2623 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 14,949
Thanks: 3,765
Thanked 4,983 Times in 3,961 Posts

https://www.theverge.com/2018/3/5/17...ile-range-2022

I'll leave it for others to fit The Template to this. I'm more concerned with the underside nowadays. I used a combination of scrolling the bottom of the screen to low point of the front valance and a plastic ruler to find the dimensions are 5/8" rise over 14".

According to https://www.calculator.net/triangle-...s=d&x=122&y=21 the undercarriage has a rake of 2.56. Or at least that swage line. The undercarriage appears to be half that at the rear wheel and then bells up.
__________________
.
The only reason that the chicken is not gone extinct is because they're so delicious that we breed them at a very high rate to ensure that we don't run out of Chris Ray Gun
_________________

Don't Californicate Oregon

_________________
  Reply With Quote
The Following User Says Thank You to freebeard For This Useful Post:
NeilBlanchard (03-06-2018)
Old 03-06-2018, 09:24 AM   #2624 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 3,473
Thanks: 13
Thanked 2,245 Times in 1,571 Posts
Quote:
Originally Posted by freebeard View Post
I'll leave it for others to fit The Template to this. I'm more concerned with the underside nowadays. .............
Do you suspect that the front air inlet directs air like an under-tray air-curtain?

The angle of the belly pan you noticed is not contained by side curtains and we don't know how messed up it gets at the rear axle but I'm with you, it at least looks promising.

The electric motors front and back probably don't have the same issues of ICE/transmission combinations, and if they did the suspension right they could have excellent flow under there.

I found this early artwork most confusing.

https://www.outlookindia.com/website...us-cars/308799


Artistic sarcasm?


I like this car (VW Vizzion).

EDIT: found this................

https://www.thetorquereport.com/volk...-5-automation/





https://www.thetorquereport.com/volk...-teased-again/


http://www.thedetroitbureau.com/2018...at-the-latest/


The 2016 Cadillac Escala Concept has a similar "jaw" but not as cleanly done.
http://www.automobilemag.com/news/ca...e-beach-video/
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html

Last edited by kach22i; 03-06-2018 at 09:42 AM..
  Reply With Quote
The Following User Says Thank You to kach22i For This Useful Post:
NeilBlanchard (03-06-2018)
Old 03-06-2018, 01:41 PM   #2625 (permalink)
Master EcoModder

NeilBlanchard's Avatar

Join Date: May 2008
Location: Maynard, MA Eaarth
Posts: 7,832

Mica Blue - '05 Scion xA RS 2.0
Team Toyota
90 day: 42.48 mpg (US)

Forest - '15 Nissan Leaf S
Team Nissan
90 day: 156.46 mpg (US)

Number 7 - '15 VW e-Golf SEL
TEAM VW AUDI Group
90 day: 155.81 mpg (US)
Thanks: 3,303
Thanked 2,846 Times in 1,789 Posts
VW has a very satisfying design sense, in my opinion. They have distinctive, yet smooth designs; that are low drag - or at least they prioritize low drag.
__________________
Sincerely, Neil

http://neilblanchard.blogspot.com/
  Reply With Quote
Old 03-06-2018, 02:26 PM   #2626 (permalink)
(:

Frank Lee's Avatar

Join Date: Jan 2008
Location: up north
Posts: 12,652

Blue - '93 Ford Tempo
Last 3: 27.29 mpg (US)

F150 - '94 Ford F150 XLT 4x4
90 day: 18.5 mpg (US)

Sport Coupe - '92 Ford Tempo GL
Last 3: 69.62 mpg (US)

ShWing! - '82 honda gold wing Interstate
90 day: 33.65 mpg (US)

Moon Unit - '98 Mercury Sable LX Wagon
90 day: 21.24 mpg (US)
Thanks: 1,552
Thanked 3,428 Times in 2,153 Posts
Too bad they're connected to VW engineering and manufacturing.
__________________


  Reply With Quote
Old 03-06-2018, 02:28 PM   #2627 (permalink)
...beats walking...

Join Date: Jul 2009
Location: .
Posts: 6,191
Thanks: 179
Thanked 1,521 Times in 1,122 Posts
Chassis reminds me of the 2002 "skate-board platform" that GM had hyped...then dropped: https://www.autoblog.com/2010/09/24/...2-gm-autonomy/

Last edited by gone-ot; 03-06-2018 at 03:42 PM..
  Reply With Quote
Old 03-06-2018, 03:10 PM   #2628 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 14,949
Thanks: 3,765
Thanked 4,983 Times in 3,961 Posts
Chassis follows Tesla, body follows Aston Martin via Tesla. They're converging to a type.

Frank Lee So long as they don't use these:

https://duckduckgo.com/?t=palemoon&q=VW+Beetle+fuse&iax=images
__________________
.
The only reason that the chicken is not gone extinct is because they're so delicious that we breed them at a very high rate to ensure that we don't run out of Chris Ray Gun
_________________

Don't Californicate Oregon

_________________
  Reply With Quote
Old 03-07-2018, 01:24 AM   #2629 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 14,949
Thanks: 3,765
Thanked 4,983 Times in 3,961 Posts

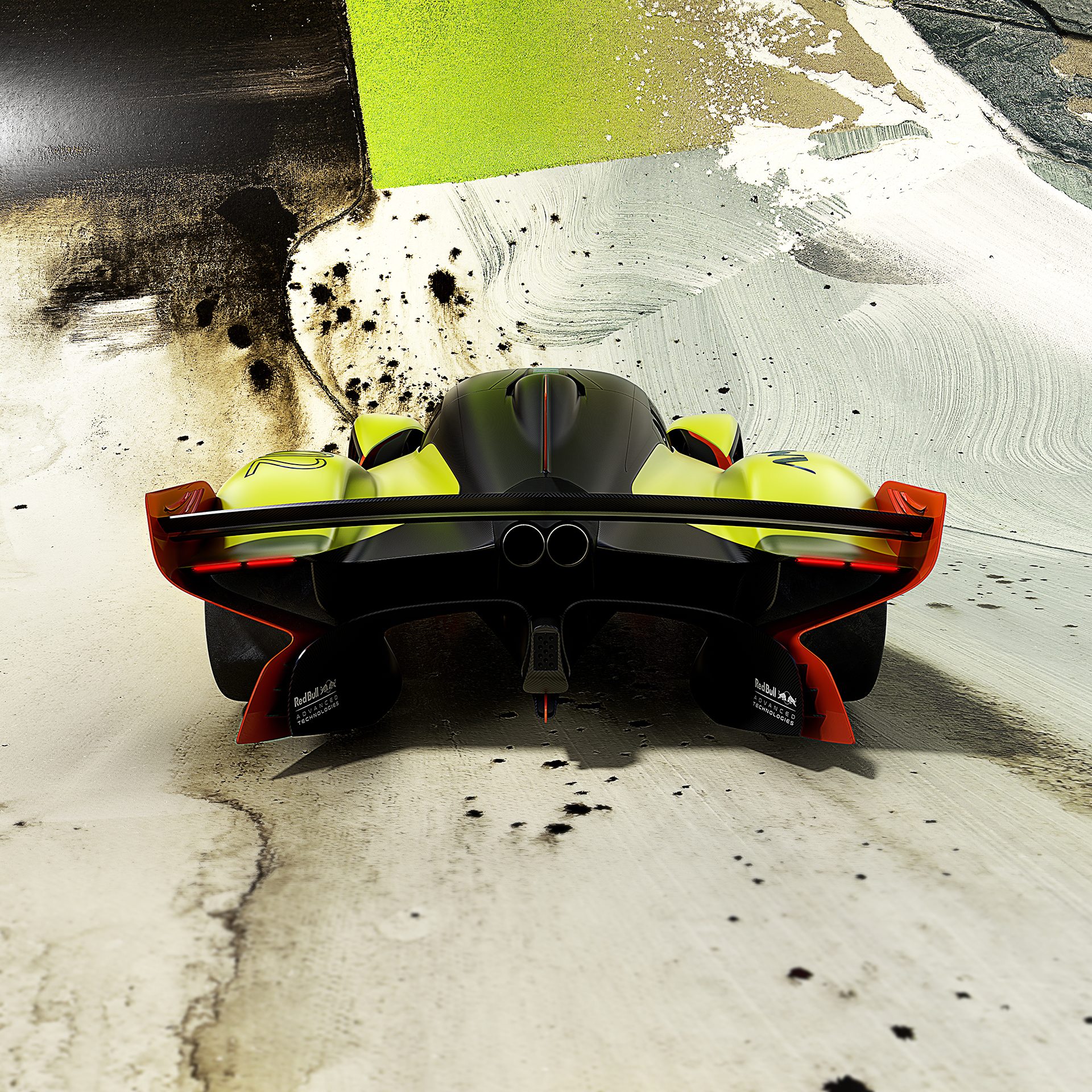

Speeeking of Aston Martin... The Aston Martin Valkyrie AMR Pro has an interesting diffuser:
