Old 01-16-2020, 02:48 PM   #641 (permalink)
PSmodder lurker

Join Date: Jan 2009
Location: Chino
Posts: 1,605
Thanks: 26
Thanked 908 Times in 522 Posts
That second, it was an 'unaerodynamic' plane!

The confluence of dimensional architecture, lack of downforce and bad luck, the 1999 Le Mans Mercedes CLR-GT1 flew! The closed coupe bodywork (lift), flat bottom, narrower wheelbase, softer rear springs and long rear diffuser overhang, add to that a slight uphill crest on the track and swirling vortices of a racecar in front - aimed the pitch-sensitive car ever slightly upward enough for the large front overhang to suddenly lift the nose up. The rear wing firmly planted the rearwheels that is now the perfect pivot that exposed the full flat body work to completely and dramatically lift it in the air.



Last edited by botsapper; 01-16-2020 at 03:12 PM..
  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 01-16-2020, 04:26 PM   #642 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 27,562
Thanks: 7,738
Thanked 8,554 Times in 7,041 Posts
And that with passive downforce. Imagine what happens with a 'sucker'!

If it went more that 120ft, then it exceeded the Wright Bros. first flight.
__________________
.
.
Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster

____________________
  Reply With Quote
Old 02-10-2020, 02:49 PM   #643 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 27,562
Thanks: 7,738
Thanked 8,554 Times in 7,041 Posts
Let's bump this thread!



http://justacarguy.blogspot.com/2020...-and-then.html

There's a third pic if you go to the link. You may mock it, but I think that's the best double-bubble canopy I've seen. Prolly some aircraft cockpit canopies.
__________________
.
.
Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster

____________________
  Reply With Quote
Old 02-10-2020, 06:28 PM   #644 (permalink)
(:

Frank Lee's Avatar

Join Date: Jan 2008
Location: up north
Posts: 12,762

Blue - '93 Ford Tempo
Last 3: 27.29 mpg (US)

F150 - '94 Ford F150 XLT 4x4
90 day: 18.5 mpg (US)

Sport Coupe - '92 Ford Tempo GL
Last 3: 69.62 mpg (US)

ShWing! - '82 honda gold wing Interstate
90 day: 33.65 mpg (US)

Moon Unit - '98 Mercury Sable LX Wagon
90 day: 21.24 mpg (US)
Thanks: 1,585
Thanked 3,555 Times in 2,218 Posts
Harley Earl would've loved it. Except it needs more chrome.
__________________


  Reply With Quote
Old 02-10-2020, 07:42 PM   #645 (permalink)
PSmodder lurker

Join Date: Jan 2009
Location: Chino
Posts: 1,605
Thanks: 26
Thanked 908 Times in 522 Posts
Gonna need more chromite from the mines...

Actually everything are found chrome from over 40 cars!

https://static1.hotcarsimages.com/wo...op&w=963&h=624
  Reply With Quote
Old 02-21-2020, 09:14 AM   #646 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 4,158
Thanks: 120
Thanked 2,790 Times in 1,959 Posts
Random TRANSPORTATION pictures - Page 2306 - Pelican Parts Forums
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html
  Reply With Quote
Old 03-18-2020, 09:13 PM   #647 (permalink)
It's all about Diesel

cRiPpLe_rOoStEr's Avatar

Join Date: Oct 2012
Location: Porto Alegre, Rio Grande do Sul, Brazil
Posts: 12,548
Thanks: 0
Thanked 1,622 Times in 1,447 Posts


OK, this '58 CJ-5 caught my attention not for being unaerodynamic, but for being in such a mint condition. And it looks awesome on blue with those white rims.

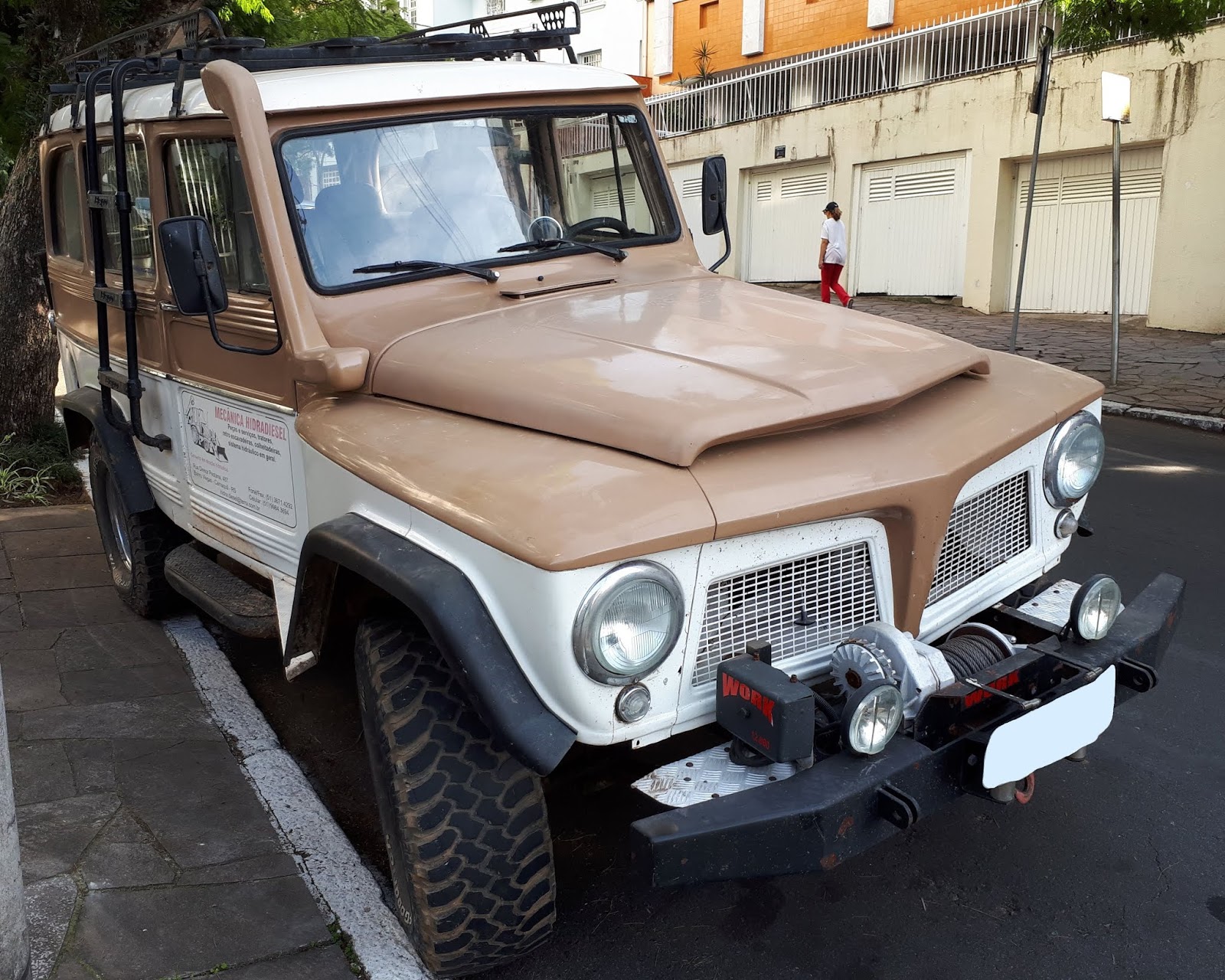

Not sure about the aerodynamic impact of this Brazilian facelift of the Willys All-Steel Station Wagon over the earlier design.
  Reply With Quote
Old 03-29-2020, 09:59 PM   #648 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 27,562
Thanks: 7,738
Thanked 8,554 Times in 7,041 Posts
This one is unremarkaby unaerodynamic, but the interior is interesting:
Just A Car Guy: 1913 Pipe... I've never heard of that before, but not a surprise when I learned that it was a company in Brussels, destroyed in WW1


Baroque woodwork and a jump seat.
__________________
.
.
Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster

____________________
  Reply With Quote
Old 04-03-2020, 01:08 AM   #649 (permalink)
It's all about Diesel

cRiPpLe_rOoStEr's Avatar

Join Date: Oct 2012
Location: Porto Alegre, Rio Grande do Sul, Brazil
Posts: 12,548
Thanks: 0
Thanked 1,622 Times in 1,447 Posts
Quote:
Originally Posted by freebeard View Post
Baroque woodwork and a jump seat.
Jump-seats are interesting, even though most are not so comfortable at all.
  Reply With Quote
Old 04-04-2020, 01:34 PM   #650 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 27,562
Thanks: 7,738
Thanked 8,554 Times in 7,041 Posts
Well, it was aerodynamic until it wasn't:


Just A Car Guy: Note to self, never drag race with a crosswind

__________________
.
.
Without freedom of speech we wouldn't know who all the idiots are. -- anonymous poster

____________________
  Reply With Quote
