Old 04-16-2011, 06:36 PM   #101 (permalink)
Recreation Engineer

KamperBob's Avatar

Join Date: Dec 2009
Location: Somewhere USA
Posts: 521

Black Stallion - '02 Toyota Tundra 4WD xCab

Half Pint - '06 Yamaha XT225
Thanks: 311
Thanked 136 Times in 101 Posts
Quote:
Originally Posted by aerohead View Post
I gleaned an article about Volvo's 3CC concept coupe from the Feb.2005 Popular Science,p. 17.
This car has a roofline of generous plan-taper which Volvo credits with a 12 % drag reduction.
Since my cover has this taper and gave a 13% mpg improvement,the article helps explain the difference between Ford's 10 % straight-sided aero-shell of 1988.
Phil, would it be possible to attach or link some pix so I can see what you are saying?

__________________
Recreation Engineer
  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 04-16-2011, 08:27 PM   #102 (permalink)
Do more with less

Join Date: Jul 2010
Location: North Eastern Missouri
Posts: 913

OD - '05 Ford Econoline
90 day: 18.64 mpg (US)

Joetta - '86 Volkswagen Jetta Turbo Oil Burner
TEAM VW AUDI Group
90 day: 49.71 mpg (US)

Benzilla - '85 Mercedes Benz 300D
90 day: 28.08 mpg (US)
Thanks: 59
Thanked 166 Times in 104 Posts
Thanks for the link. That is a very impressive mileage gain. They claimed a 12% reduction in drag, I presumed that was aero drag, No?
Volvo PS article.

Quote:
Originally Posted by aerohead View Post
I gleaned an article about Volvo's 3CC concept coupe from the Feb.2005 Popular Science,p. 17.
This car has a roofline of generous plan-taper which Volvo credits with a 12 % drag reduction.
Since my cover has this taper and gave a 13% mpg improvement,the article helps explain the difference between Ford's 10 % straight-sided aero-shell of 1988.
__________________
"A man is not finished when he is defeated. He is finished when he quits."
Richard M. Nixon


"The reward of suffering is experience."
Harry S. Truman

“There's no way to rule innocent men. The only power any government has is the power to crack down on criminals. Well, when there aren't enough criminals, one makes them. One declares so many things to be a crime that it becomes impossible for men to live without breaking laws.”
Ayn Rand
  Reply With Quote
Old 04-17-2011, 12:11 AM   #103 (permalink)
MPGuino Supporter

t vago's Avatar

Join Date: Oct 2010
Location: Cedar Rapids, IA
Posts: 1,766

The Karen-Mobile - '05 Dodge Magnum SXT
Team Dodge
90 day: 26.72 mpg (US)

Fiat Dakota - '00 Dodge Dakota SLT RWD Quad Cab
90 day: 16.67 mpg (US)

The Red Sled - '01 Dodge Durango SLT 4WD
90 day: 16.96 mpg (US)
Thanks: 799
Thanked 681 Times in 437 Posts




That's a pretty nice setup there.
__________________
The Fiat Dakota


The Karen-mobile


The Red Sled
  Reply With Quote
The Following 2 Users Say Thank You to t vago For This Useful Post:
aerohead (04-23-2011), KamperBob (04-17-2011)
Old 04-17-2011, 02:00 AM   #104 (permalink)
Master EcoModder

Join Date: Jan 2009
Location: Maui, Hawaii
Posts: 813
Thanks: 5
Thanked 34 Times in 26 Posts
Quote:
Originally Posted by t vago View Post

That's a pretty nice setup there.
I was JUST about to post a picture of that car.
  Reply With Quote
Old 04-17-2011, 12:25 PM   #105 (permalink)
Master EcoModder

euromodder's Avatar

Join Date: Jul 2010
Location: Belgium
Posts: 4,667

GasDwarf - '13 Volkswagen up! EcoFuel CNG
Thanks: 176
Thanked 643 Times in 510 Posts
There's a slight hint of that taper in the later Volvo C30.
Volvo could get away with that taper on the C30 as it's only a 4 seater.



Despite that and several more extensive drag reduction measures, it only returns the same FE numbers as the sedan S40 and wagon V50, due to its shorter length.
  Reply With Quote
Old 04-23-2011, 02:33 PM   #106 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 12,196
Thanks: 19,643
Thanked 6,154 Times in 3,787 Posts
pix

Quote:
Originally Posted by KamperBob View Post
Phil, would it be possible to attach or link some pix so I can see what you are saying?
Bob,I don't have the image with me,and it may be a couple of weeks before I'm back on the computer,but I'll do it asap.
Short of that,Pop Sci may have some resource online for images don't know.Or maybe GOOGLE IMAGES.
  Reply With Quote
Old 04-23-2011, 02:35 PM   #107 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 12,196
Thanks: 19,643
Thanked 6,154 Times in 3,787 Posts
yep,aero

Quote:
Originally Posted by Varn View Post
Thanks for the link. That is a very impressive mileage gain. They claimed a 12% reduction in drag, I presumed that was aero drag, No?
Volvo PS article.
yes,it's a air drag reduction.
  Reply With Quote
Old 04-23-2011, 02:39 PM   #108 (permalink)
Master EcoModder

aerohead's Avatar

Join Date: Jan 2008
Location: Sanger,Texas,U.S.A.
Posts: 12,196
Thanks: 19,643
Thanked 6,154 Times in 3,787 Posts
Jaray Kombinationform

Quote:
Originally Posted by t vago View Post




That's a pretty nice setup there.
The roofline dates to Jaray's 1922 Patent application,finally issued in 1927.It pretty much makes the roof 'vanish.'
Rumpler also used this roof on his water drop limousine circa same time period.The roof dropped the Cd of the open cabin 1921 car from 0.54,to o.28,as tested in VW's modern tunnel

Last edited by aerohead; 06-11-2011 at 04:43 PM.. Reason: add data
  Reply With Quote
The Following User Says Thank You to aerohead For This Useful Post:
KamperBob (04-23-2011)
Old 05-23-2011, 09:42 PM   #109 (permalink)
MPGuino Supporter

t vago's Avatar

Join Date: Oct 2010
Location: Cedar Rapids, IA
Posts: 1,766

The Karen-Mobile - '05 Dodge Magnum SXT
Team Dodge
90 day: 26.72 mpg (US)

Fiat Dakota - '00 Dodge Dakota SLT RWD Quad Cab
90 day: 16.67 mpg (US)

The Red Sled - '01 Dodge Durango SLT 4WD
90 day: 16.96 mpg (US)
Thanks: 799
Thanked 681 Times in 437 Posts
...No, I did not give up on this project...















Hopefully, by next week, this should be completed.

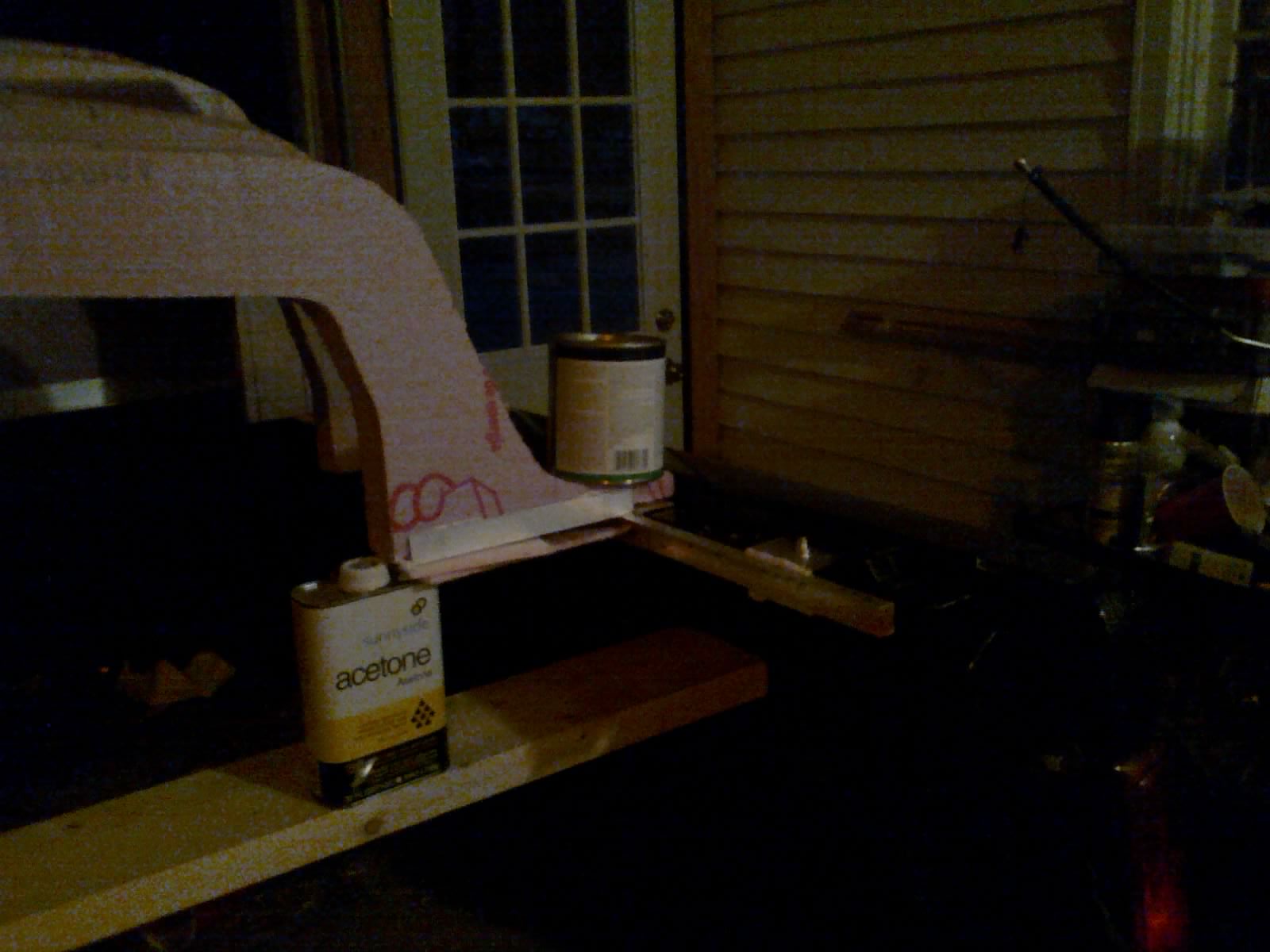

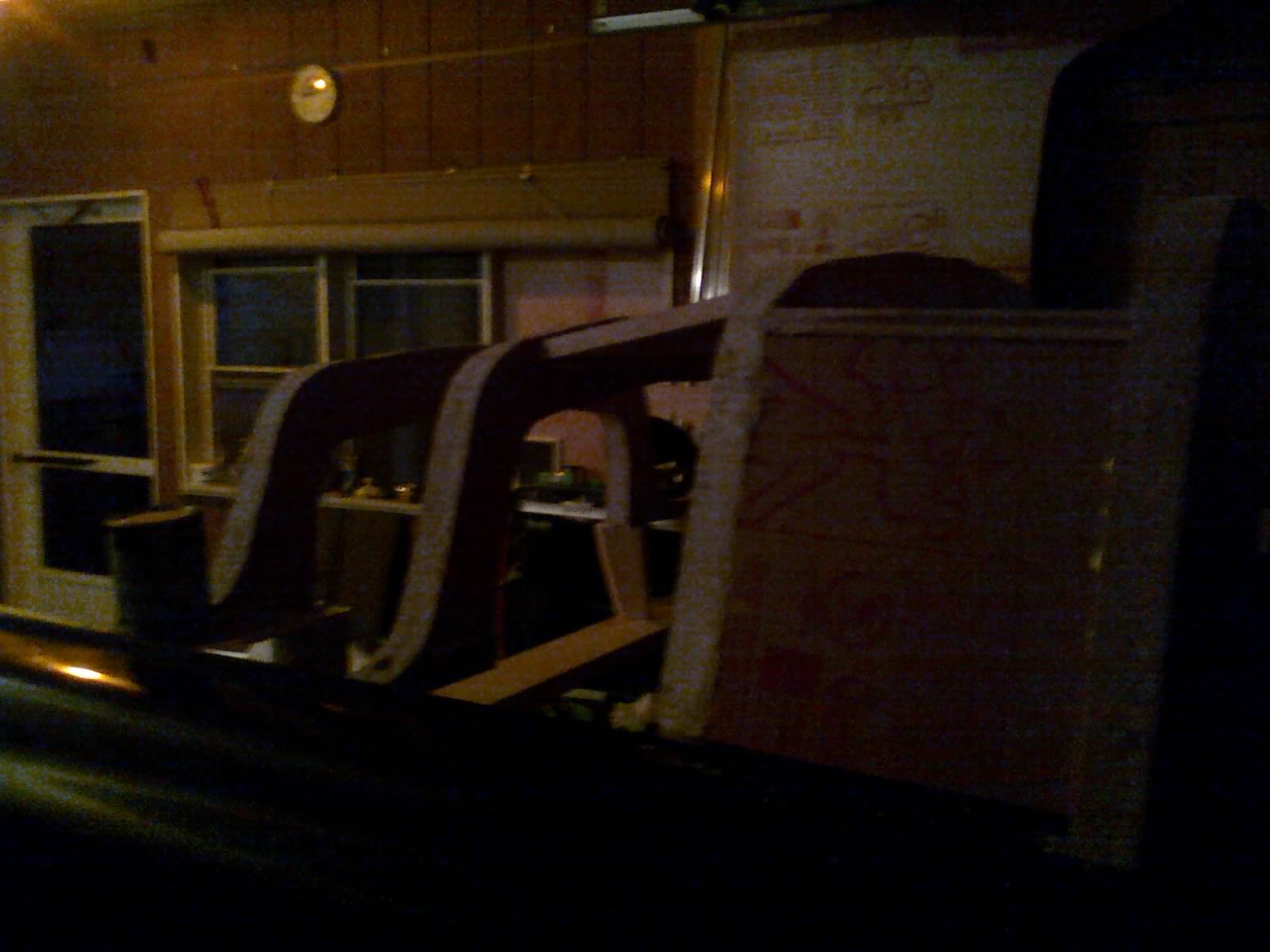

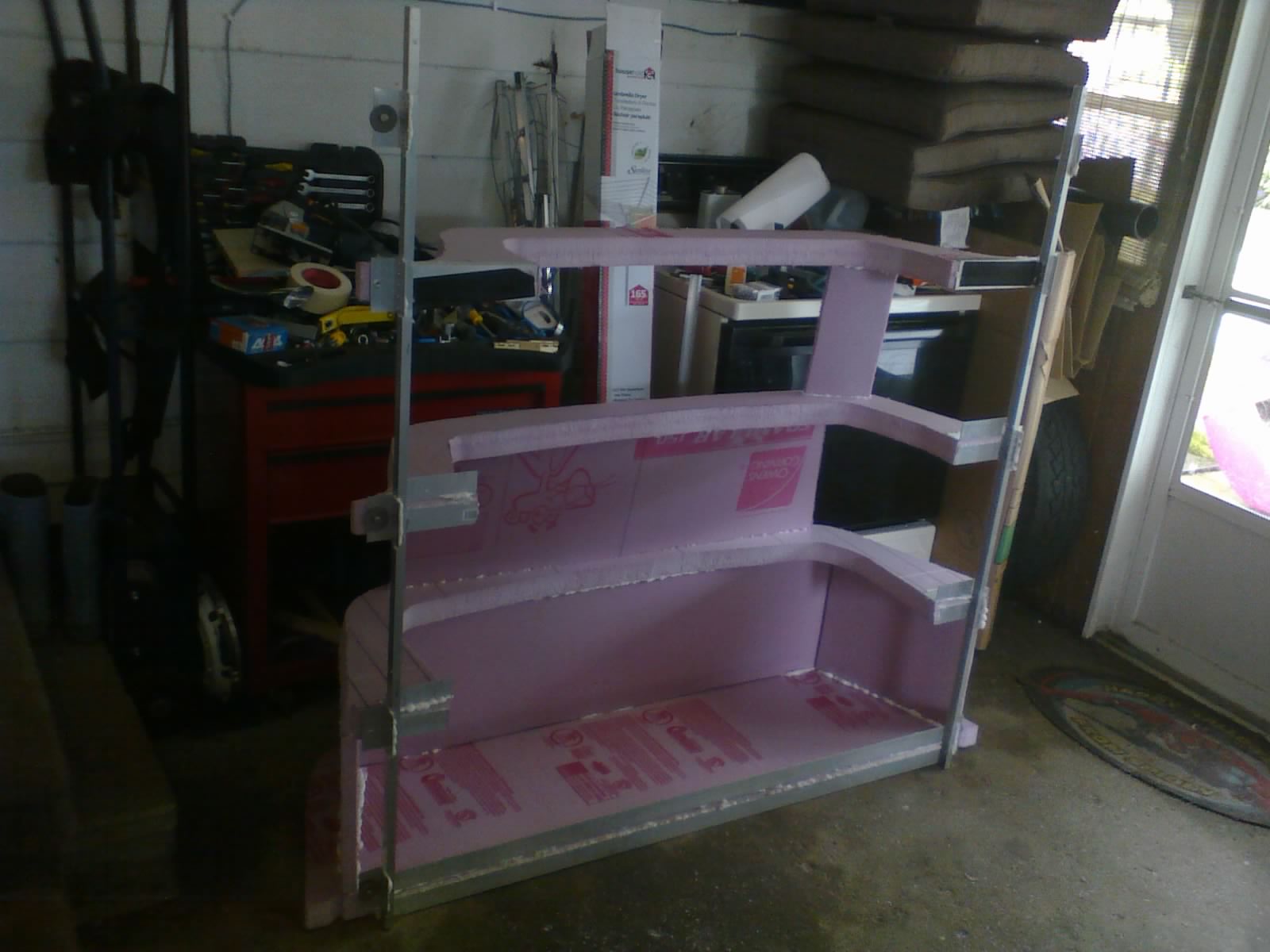

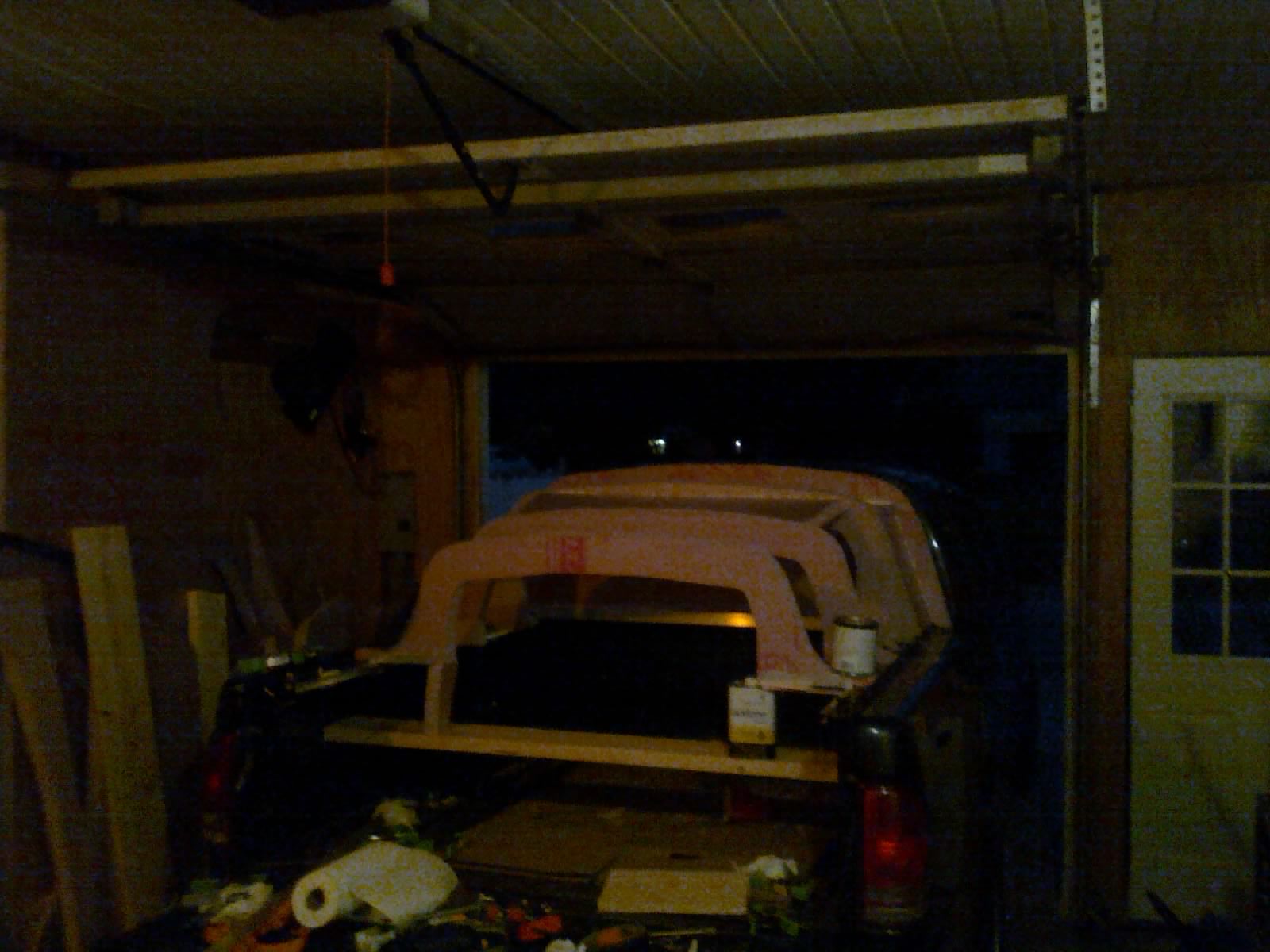

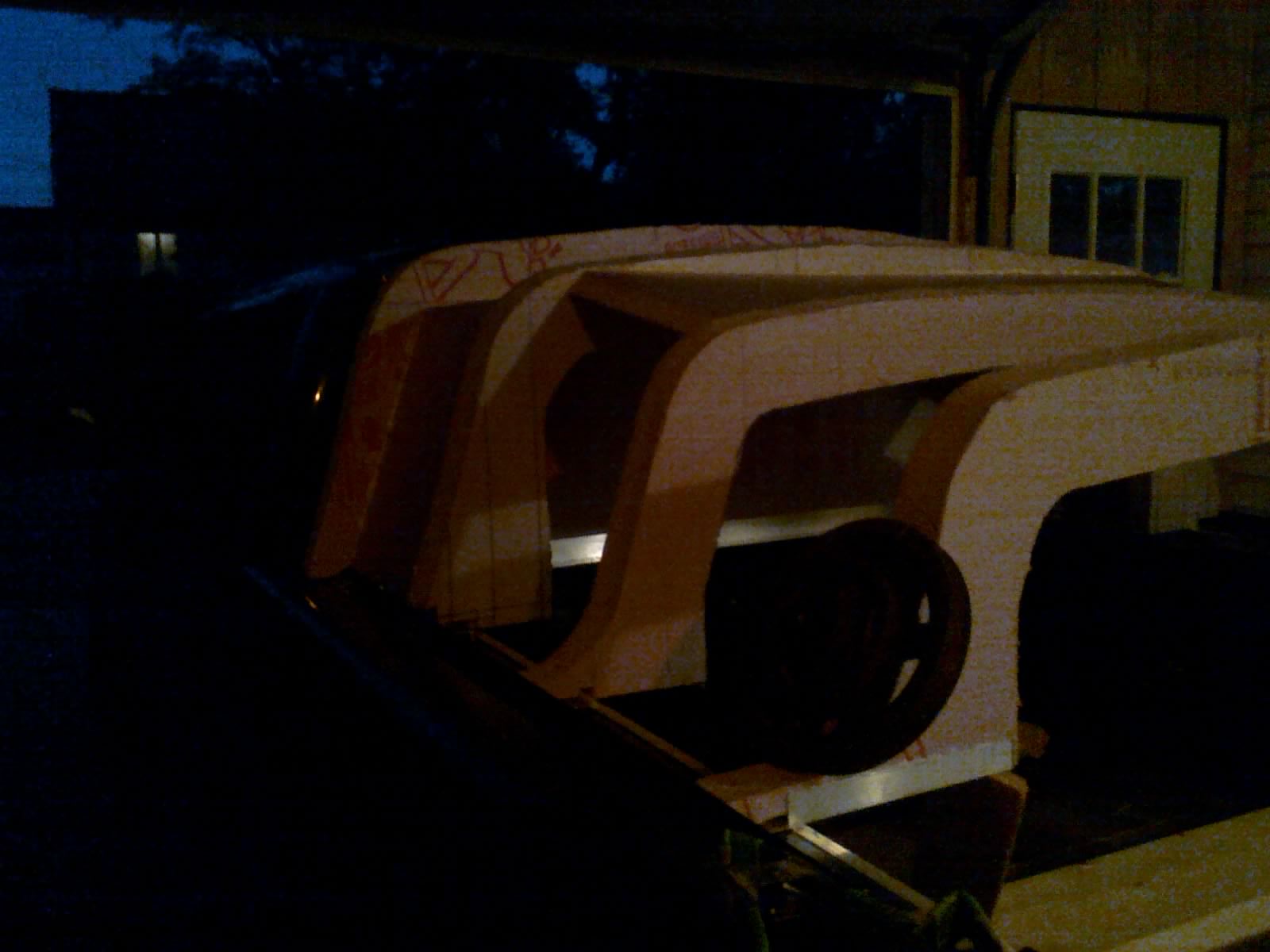

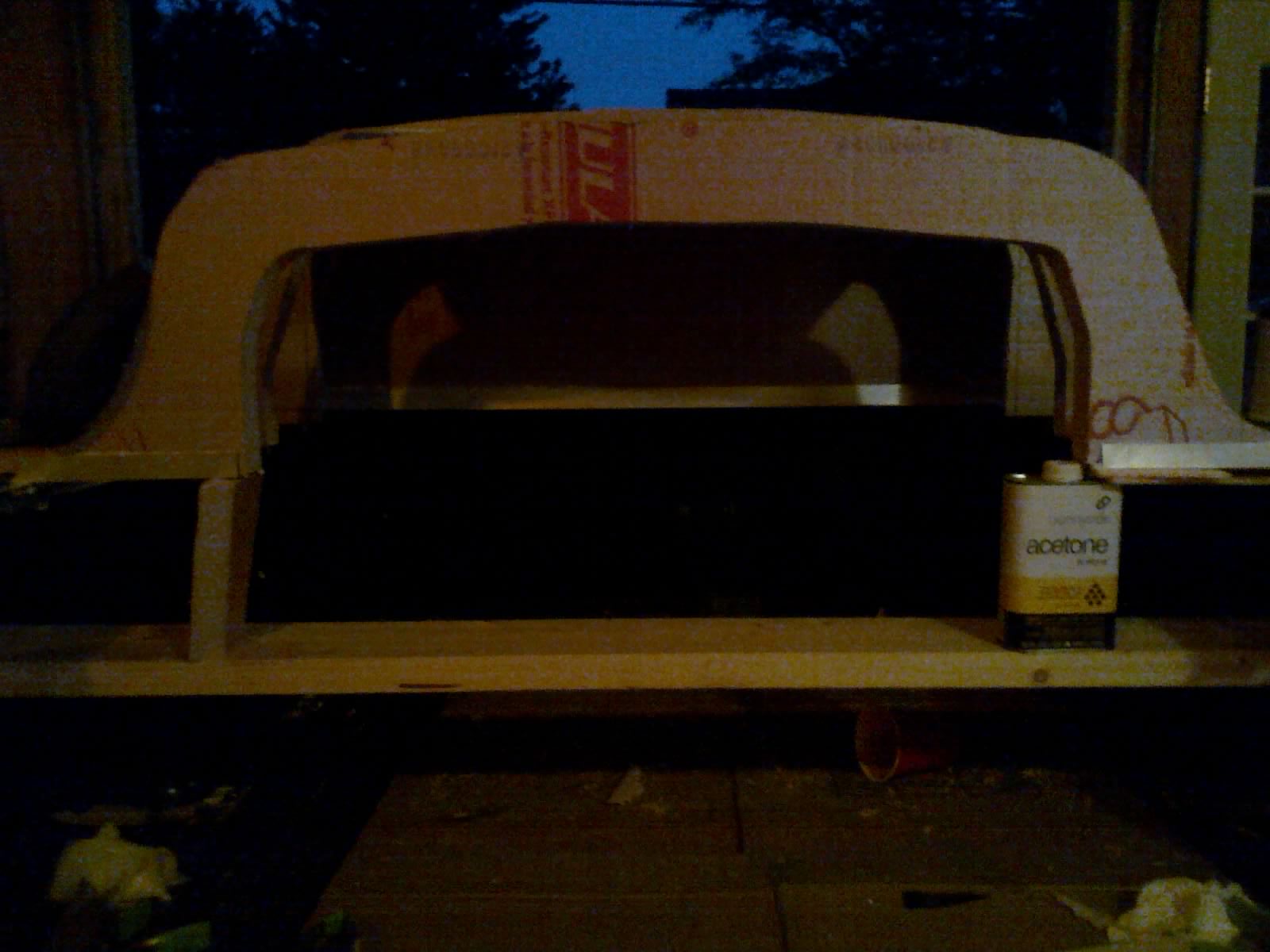

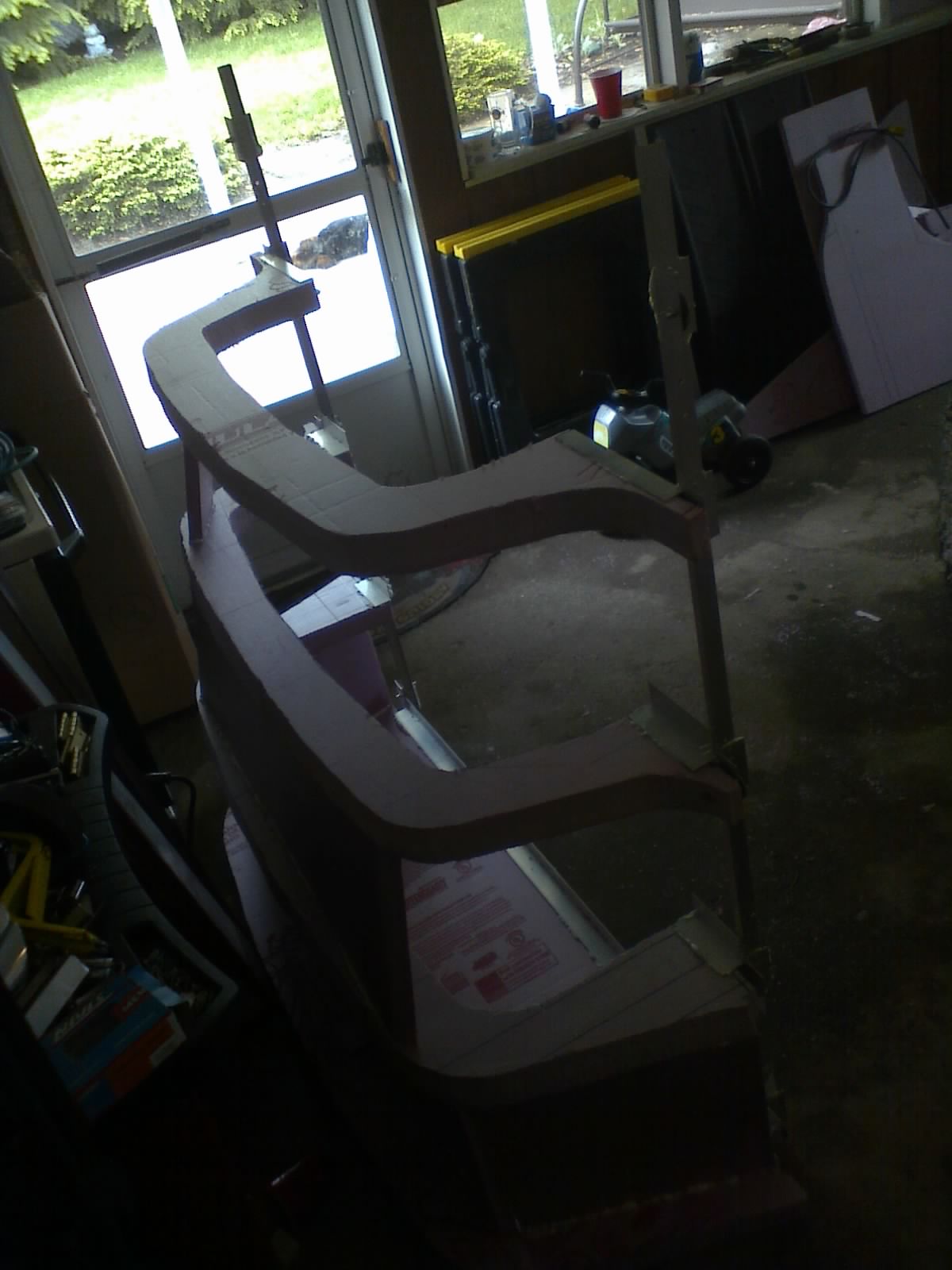

the aerocap has a fairly strong aluminum base frame that bolts onto the existing tonneau cover rails using 6 bolts (3 per side). The FoamulaR ribs are glued into 2 inch wide aluminum channels that are riveted and epoxied onto the base frame.

I don't think this cap will fly off the truck, like the last one did.
__________________
The Fiat Dakota


The Karen-mobile


The Red Sled
  Reply With Quote
The Following 3 Users Say Thank You to t vago For This Useful Post:
BamZipPow (05-23-2011), NeilBlanchard (05-23-2011), skyl4rk (05-23-2011)
Old 05-23-2011, 09:52 PM   #110 (permalink)
Aero Deshi

ChazInMT's Avatar

Join Date: Jan 2010
Location: Vero Beach, FL
Posts: 1,065

MagMetalCivic - '04 Honda Civic Sedan EX
Last 3: 34.25 mpg (US)
Thanks: 430
Thanked 666 Times in 357 Posts
Looks great! I'm glad you resisted the urge to taper it down too much in the back leaving 10 inches or so it looks like above the tailgate. Good Job!!

  Reply With Quote
The Following User Says Thank You to ChazInMT For This Useful Post:
t vago (05-24-2011)
