Aero of teardrop on its side?

I'm considering building a velomobile and have a question about the shapes. Typically they are a 3 dimensional teardrop. I however am looking at building a 2 dimensional teardrop, so it would be aerodynamic from the top view, but essentially a rectangle from the side.

Do I lose anything by having the airflow go around the sides? The bottom would remain flat, which seems like it would be good against the ground plane.

The advantage of this shape would be two fold. 1, ease of construction. I could use flat aluminum plate for each side, top, and bottom.
2. I may add a motor and solar to the flat top side. Solar can recharge power for a velomobile in a few hours.

Any data on this? The templates all go the "wrong" way.

__________________



  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 04-07-2014, 10:00 AM   #2 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 4,158
Thanks: 120
Thanked 2,790 Times in 1,959 Posts
The problem is the air isn't going to go only where you want or decide it should go.

What's going to happen is the air on the sides will travel around this really sexy curve shape, the air above and below straight across.

It's going to take longer to go around (air at sides), the air on top will not be traveling at the same speed, there will be air pressure differences between each side and the top/bottom.

These pressure differences will cause air to be drawn to the low pressure areas, and as it does this it will be over distance which in turn causes a swirling or vortex.

The vortex is a funnel of twisting air which results in high drag once air flow further out from the body in motion contacts or interacts with it.

Your design sounds like an old soap box derby car, which I'm sure at the speed it operates at does okay as the vortexes are not too large or violent. However if you want to compete with the Velomobile, you are going to end up looking like the Velomobile.

I'd like to see a sketch or diagram of your design, the devil is in the details, and where your head is and it's treatment is rather important in the scheme of things.
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html

Last edited by kach22i; 04-07-2014 at 10:43 AM..
  Reply With Quote
Old 04-07-2014, 10:22 AM   #3 (permalink)
(:

Frank Lee's Avatar

Join Date: Jan 2008
Location: up north
Posts: 12,762

Blue - '93 Ford Tempo
Last 3: 27.29 mpg (US)

F150 - '94 Ford F150 XLT 4x4
90 day: 18.5 mpg (US)

Sport Coupe - '92 Ford Tempo GL
Last 3: 69.62 mpg (US)

ShWing! - '82 honda gold wing Interstate
90 day: 33.65 mpg (US)

Moon Unit - '98 Mercury Sable LX Wagon
90 day: 21.24 mpg (US)
Thanks: 1,585
Thanked 3,555 Times in 2,218 Posts
Probably works quite well:

Mochet

1933:

__________________



Last edited by Frank Lee; 04-07-2014 at 10:42 AM..
  Reply With Quote
The Following User Says Thank You to Frank Lee For This Useful Post:
aerohead (04-07-2014)
Old 04-07-2014, 10:46 AM   #4 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 4,158
Thanks: 120
Thanked 2,790 Times in 1,959 Posts
Maybe a really aerodynamic helmet would help?

This Week in CFD | Another Fine Mesh


The S-Works+McLaren TT | RKP



WIND TUNNEL TESTING IN TEXAS
Derby Tech - January/February, 1990
by Bruce Finwall
http://derby.mypalmer.com/techinfo/d...h/windtunl.htm
Quote:
On January 2 and 3, 1990 some interesting observations were made during tests of soap box derby racers in the Texas A&M University subsonic, closed-circuit wind tunnel. Six of the top cars in the country (3 seniors and 3 juniors) were involved in a total of 48 separate tests. The following is a summary of what was found.

Quote:
Cody Robertson’s ‘88 racer had the least drag of all junior cars tested.
I like the stability of this design below.


SUNDAY, APRIL 02, 2006
Extreme Gravity Car!


Quote:
Conceptually, not much has changed since the first event was staged in 1934: Build a small, simple race car according to tightly constrained rules, and coast down a racetrack powered by nothing more complicated than gravity. However, a lot has changed in the design of the cars, as evidenced by Volvo's "Aria", the car that won the latest extreme gravity car race!
http://www.swedespeed.com/news/publi...ticle_626.html

__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html

Last edited by kach22i; 04-07-2014 at 10:59 AM..
  Reply With Quote
The Following 2 Users Say Thank You to kach22i For This Useful Post:
aerohead (04-07-2014), NeilBlanchard (04-08-2014)
Old 04-07-2014, 11:07 AM   #5 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 4,158
Thanks: 120
Thanked 2,790 Times in 1,959 Posts
For context, these are some old posts on the topic I and others made in another forum back in 2010.

Random Picture Thread - Page 207 - Boat Design Forums
Quote:
Originally Posted by kach22i View Post
I saw a red and white striped one of these downtown Ann Arbor today, parked on the sidewalk with the regular bikes.

It is so cool in person....bet it floats too, just needs an outrigger.
Velomobile
MikesBike.net




Random Picture Thread - Page 207 - Boat Design Forums
Quote:
Originally Posted by Angélique View Post
That velomobile is a Dutch designed Velomobiel.nl Quest built under license by the Canadian Bluevelo. They are HPV's (Human Powered Vehicles).

Below some velomobiles from Europe....

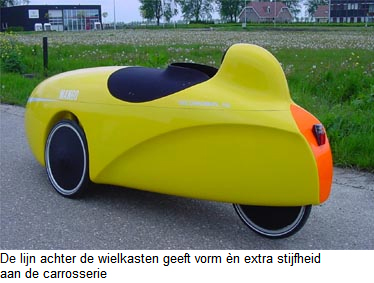

Velomobiel.nl Quest

-

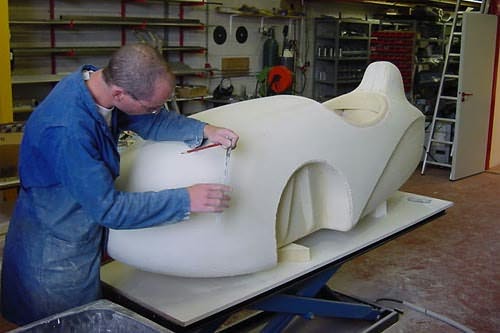

Here the designer working on the Velomobiel.nl Mango plug.
