Orbis Wheel

https://orbisdriven.com/

Quote:
ORBIS wheels bring multiple benefits to 4-wheeled vehicles. The Ring-Driven™ wheel weighs no more than a conventional wheel, yet incorporates the entire drivetrain and braking system for that wheel.
I always thought the Edison 2 in wheel suspension deserved a better fate. Comes now Orbis, with a wheel that is hubless and not at the same time.

__________________
.
It used to be that the news would tell you what happened and you had to make an opinion on the subject. Now the news tells you their opinion and you have to decide if it even happened.
/r/showerthoughts

_________________
  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 03-10-2019, 10:57 PM   #2 (permalink)
Thalmaturge

Join Date: Mar 2011
Location: The edge of nowhere
Posts: 832

Go Pod - '00 Honda Insight AC

The Tinyvan - '07 Honda Fit Sport

Spicy Italian - '13 Fiat 500 Abarth
Thanks: 407
Thanked 414 Times in 272 Posts
Why is this in the unicorn corral? Seems like a neat invention and a logical extension of the proven tech Edison2 came up with.
  Reply With Quote
Old 03-10-2019, 11:05 PM   #3 (permalink)
EcoModding Newb

redpoint5's Avatar

Join Date: Aug 2010
Location: Oregon
Posts: 5,887

Acura TSX - '06 Acura TSX
90 day: 28.39 mpg (US)

Lafawnda - '01 Honda CBR600 F4i
90 day: 47.32 mpg (US)

Big Yeller - '98 Dodge Ram 2500 base
90 day: 21.82 mpg (US)

Prius Plug-in - '12 Toyota Prius Plug-in
90 day: 57.64 mpg (US)

Mazda CX-5 - '17 Mazda CX-5 Touring
90 day: 28.88 mpg (US)
Thanks: 2,003
Thanked 2,108 Times in 1,523 Posts
It makes claims that can't possibly be true, such as "weighs no more than a conventional wheel". I'm not thrilled that there's a gear around the inside perimeter of the wheel either. Seems like debris would constantly be crunched in there.

The Edison in-wheel suspension was not a good idea. It adds to unsprung weight needlessly and compromises the length of travel. Conventional suspension is pretty good. It didn't really solve any problems.

That's the whole thing, a new product must solve a problem better than any other existing products.
__________________
Gas and Electric Vehicle Cost of Ownership Calculator







Give me absolute safety, or give me death!
  Reply With Quote
Old 03-11-2019, 01:08 AM   #4 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 13,068
Thanks: 3,171
Thanked 4,311 Times in 3,428 Posts
Quote:
Why is this in the unicorn corral?
I didn't think much about the choice. Get the mods to move it if you like. Okay by me.

I'd be more impressed if they had the wheel on both ends of the car. It appears the Civic is frontwheel drive with these tagged on the back, but the exploded diagram shows an electric motor. But no brake? [shrug]

Then there's the $10K price tag.
__________________
.
It used to be that the news would tell you what happened and you had to make an opinion on the subject. Now the news tells you their opinion and you have to decide if it even happened.
/r/showerthoughts

_________________
  Reply With Quote
Old 03-11-2019, 04:35 PM   #5 (permalink)
Thalmaturge

Join Date: Mar 2011
Location: The edge of nowhere
Posts: 832

Go Pod - '00 Honda Insight AC

The Tinyvan - '07 Honda Fit Sport

Spicy Italian - '13 Fiat 500 Abarth
Thanks: 407
Thanked 414 Times in 272 Posts
Quote:
Originally Posted by redpoint5 View Post
The Edison in-wheel suspension was not a good idea. It adds to unsprung weight needlessly and compromises the length of travel. Conventional suspension is pretty good. It didn't really solve any problems.


I'm not sure where this extra unsprung weight you're talking about comes into it?

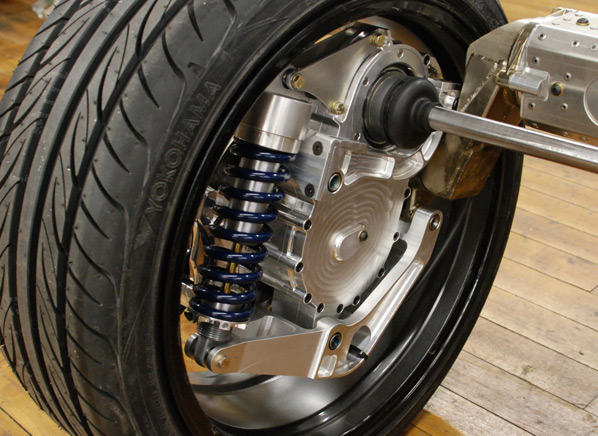

I see a coilover, a couple arms, a brake caliper/rotor, and a hub, all cleverly packaged, but the same stuff as in any current car.
