Old 12-04-2009, 12:33 PM   #91 (permalink)
Engineering first

bwilson4web's Avatar

Join Date: Mar 2009
Location: Huntsville, AL
Posts: 778

14 i3-REx - '14 BMW i3-REx
Last 3: 45.67 mpg (US)

17 Prime Plus - '17 Toyota Prius Prime Plus
90 day: 58.25 mpg (US)
Thanks: 73
Thanked 189 Times in 121 Posts
When I didn't have any information on transaxle oil temperature, I built my own:


I used this for warm-up studies:


Now the Graham scanner can read out inverter temperatures but they are rare. I've got a second one that I rent out. My recommendation is use the scanner to build a better instrument and use the scanner to check calibration or other special studies.

Bob Wilson

__________________
2019 Std. Range Plus Model 3 - 134 MPG3 || 2014 BMW i3-REx - 117 MPGe, 39 MPG
JuiceBox 40 Pro (240 VAC, 40 A), KHONS portable (120-240 VAC, 12-32 A)
Retired engineer, Huntsville, AL (five times AutoPilot saved.)
  Reply With Quote
The Following User Says Thank You to bwilson4web For This Useful Post:
Daox (12-04-2009)
Alt Today
Popular topics

Other popular topics in this forum...


Old 12-04-2009, 12:43 PM   #92 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 11,037

CM400E - '81 Honda CM400E
90 day: 58.68 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)
Thanks: 2,389
Thanked 2,435 Times in 1,469 Posts
Yeah, thats kind of what I was thinkin. Thanks Bob.
__________________
Current project: Adding regenerative braking to the Mirage
  Reply With Quote
Old 12-04-2009, 03:20 PM   #93 (permalink)
Master EcoModder

orange4boy's Avatar

Join Date: Aug 2008
Location: Canada
Posts: 1,218

The Golden Egg - '93 Toyota Previa DX
90 day: 31.91 mpg (US)

Chewie - '03 Toyota Prius
90 day: 57 mpg (US)

The Spaceship - '00 Honda Insight
Thanks: 84
Thanked 261 Times in 150 Posts
Nice block Daox, I'm fixing to do mine soon too. Although the aesthetics inspector will probably want it on the inside. I may be able to get away with a plexi one though.

Quote:
You might look at hacking a temperature reading from the inverter coolant loop. The first little radiator in front of the vehicle radiator is the inverter coolant loop.
Where is the OAT sensor located on my 2003? When I return the Graham scanner, I would like to do that hack.
__________________

  Reply With Quote
Old 12-04-2009, 03:37 PM   #94 (permalink)
Curious....

koihoshi's Avatar

Join Date: Jun 2008
Location: Oregon
Posts: 98

DoesNotHaveANickname - '99 Ford Escort ZX2
Thanks: 1
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by bwilson4web View Post
When I didn't have any information on transaxle oil temperature, I built my own:


I used this for warm-up studies:


Now the Graham scanner can read out inverter temperatures but they are rare. I've got a second one that I rent out. My recommendation is use the scanner to build a better instrument and use the scanner to check calibration or other special studies.

Bob Wilson
That is very cool! Do you have your own set of gauges that you set for using these or does it go to electronic diagnostics? I'm assuming you're pulling it electronically with the given above graph?
  Reply With Quote
Old 12-04-2009, 04:50 PM   #95 (permalink)
Engineering first

bwilson4web's Avatar

Join Date: Mar 2009
Location: Huntsville, AL
Posts: 778

14 i3-REx - '14 BMW i3-REx
Last 3: 45.67 mpg (US)

17 Prime Plus - '17 Toyota Prius Prime Plus
90 day: 58.25 mpg (US)
Thanks: 73
Thanked 189 Times in 121 Posts
Quote:
Originally Posted by koihoshi View Post
That is very cool! Do you have your own set of gauges that you set for using these or does it go to electronic diagnostics? I'm assuming you're pulling it electronically with the given above graph?
For my studies, I needed the data for analysis, not 'real time.' So I calibrated my thermistor in a batch of ice water, 0 C, and live steam, 100 C. Once I had two points on the thermistor curve, I spot checked with ordinary tap water and a kitchen thermometer.

For my study, I simply measured the thermistor values on a pad and later entered them into a spreadsheet, which gave me the time and temperature values. Piece of cake.

Once we understand the dT of transaxle and transaxle warm-up, it is easy enough to use this information in driving benchmarks. So my rule of thumb is no benchmark driving until at least 30 minutes of travel in the speed range to be tested. Then have fun.

Some of the NHW11 drivers have no doubt noticed that 90% of the warm-up happens in the first 15-20 minutes. But if they look at those bar graphs long enough, they will probably notice it really is closer to 30 minutes before 'random' variations predominate. Having measure the transaxle warm-up, I know why. <grins>

Bob Wilson
__________________
2019 Std. Range Plus Model 3 - 134 MPG3 || 2014 BMW i3-REx - 117 MPGe, 39 MPG
JuiceBox 40 Pro (240 VAC, 40 A), KHONS portable (120-240 VAC, 12-32 A)
Retired engineer, Huntsville, AL (five times AutoPilot saved.)
  Reply With Quote
Old 12-04-2009, 05:50 PM   #96 (permalink)
Curious....

koihoshi's Avatar

Join Date: Jun 2008
Location: Oregon
Posts: 98

DoesNotHaveANickname - '99 Ford Escort ZX2
Thanks: 1
Thanked 0 Times in 0 Posts
Very cool info indeed. That's awesome, Bob!
  Reply With Quote
Old 12-05-2009, 01:19 PM   #97 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 11,037

CM400E - '81 Honda CM400E
90 day: 58.68 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)
Thanks: 2,389
Thanked 2,435 Times in 1,469 Posts

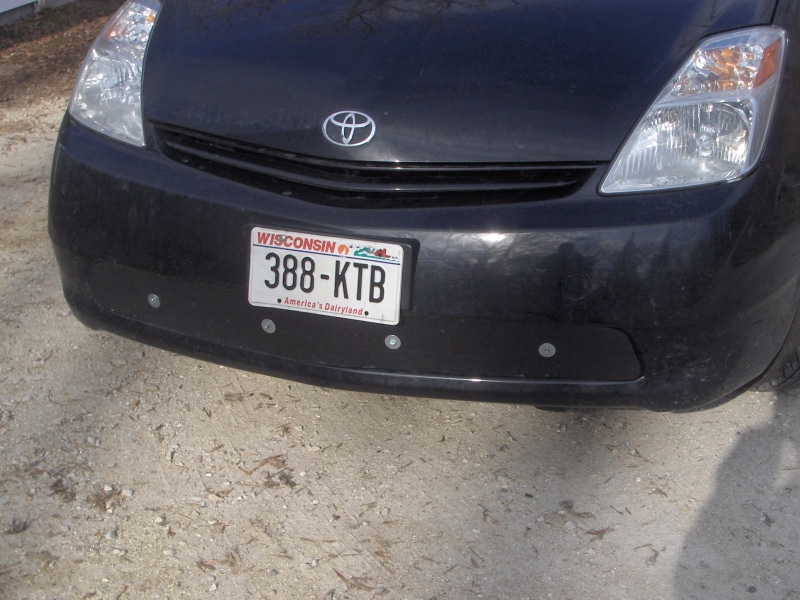

Got a pic of the grill block in sunlight. The other pic is pretty dark. I also fixed the right side by sliding some wooden spacers in behind the right side screws. It looks much better.



__________________
Current project: Adding regenerative braking to the Mirage
  Reply With Quote
Old 12-05-2009, 05:45 PM   #98 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 11,037

CM400E - '81 Honda CM400E
90 day: 58.68 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)
Thanks: 2,389
Thanked 2,435 Times in 1,469 Posts
I put the snow tires on the Prius today. Thankfully, the wheels off the Matrix fit on the Prius, same OD too. However, I do believe I'll be taking an mpg hit (unsure of how large it'll be). The Matrix steel wheels are not only 16" vs the 15" lightweight alloy wheels, but the tires are also wider 205s instead of the 185s that come on the Prius. It'll be interesting to see how this effects things.
__________________
Current project: Adding regenerative braking to the Mirage
  Reply With Quote
Old 12-05-2009, 10:21 PM   #99 (permalink)
Engineering first

bwilson4web's Avatar

Join Date: Mar 2009
Location: Huntsville, AL
Posts: 778

14 i3-REx - '14 BMW i3-REx
Last 3: 45.67 mpg (US)

17 Prime Plus - '17 Toyota Prius Prime Plus
90 day: 58.25 mpg (US)
Thanks: 73
Thanked 189 Times in 121 Posts
Quote:
Originally Posted by Daox View Post
. . I also fixed the right side by sliding some wooden spacers in behind the right side screws. . . .
I missed the part about how the bolts were installed. Just a hole through the verticals, thread the bolt through? Do you fix the bolt in the hole with an adhesive?

Thanks,
Bob Wilson
__________________
2019 Std. Range Plus Model 3 - 134 MPG3 || 2014 BMW i3-REx - 117 MPGe, 39 MPG
JuiceBox 40 Pro (240 VAC, 40 A), KHONS portable (120-240 VAC, 12-32 A)
Retired engineer, Huntsville, AL (five times AutoPilot saved.)
  Reply With Quote
Old 12-06-2009, 09:14 AM   #100 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 11,037

CM400E - '81 Honda CM400E
90 day: 58.68 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)
Thanks: 2,389
Thanked 2,435 Times in 1,469 Posts
I just have a fender washer under the head of the thumb screw on the outside of the grill block. On the backside of the grill, I have another larger fender washer with a wing nut holding it on. I screw it down until it starts bending the coroplast a little so it puts some load on the nut to avoid backing off.

__________________
Current project: Adding regenerative braking to the Mirage
  Reply With Quote
