Old 11-24-2020, 12:29 PM   #531 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 19,749
Thanks: 5,539
Thanked 6,489 Times in 5,220 Posts
Quote:
Odd in the marriage of wedge shape (lower body) and teardrop shape (greenhouse canopy), however it works in my opinion.
Bubble-top coupe (1964Ĺ Mustang, M-B 300SL and etc.). To me is appears a rough draft — That wing over the top creates a diverging duct. What would that do to the pressure and velocity? Bertone did the BATs, it looks like they experienced the 1980s like everyone else.

That Sbarro is a hard 0.26.

__________________
.
Conclussion: a realization that smacks you upside the head
_________________

"Anything is a smoke machine if you use it wrong enough" --AvE
_________________
  Reply With Quote
Alt Today
Popular topics

Other popular topics in this forum...


Old 11-24-2020, 02:03 PM   #532 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 3,844
Thanks: 50
Thanked 2,553 Times in 1,788 Posts
Quote:
Originally Posted by freebeard View Post
Bubble-top coupe (1964Ĺ Mustang, M-B 300SL and etc.).
Interesting phrase should one do a Google image search.

1960 Chevy Impala Bubble Top Sports Coupe
https://americandreamcars.com/1960ch...drht092814.htm


Custom CitroŽn DS Coupťs and a Peugeot Food Truck
https://citroenvie.com/custom-citroe...ot-food-truck/


Top one has a trunk so long as to act like a Bonneville style rear spoiler?

Bottom one does not follow the aero-template (I suspect) but like the EV1-Impact could prove to be slippery Cd wise.

EDIT:

This is just cool.

Again, I wonder if the long trunk approaches the template.

Henri Chapron
https://www.wikiwand.com/en/Henri_Chapron

Quote:
Chapron switched his attention to the recently launched CitroŽn DS. Chapron’s first rebodied DS coupe was the 1958 Le Paris. [2] At first, Chapron purchased these vehicles and customised them as one-off creations. Many of these became unique convertible variants. His DS convertible caused a sensation at the 1958 Motor Show. CitroŽn managers came to see him in Levallois to offer him a production agreement. For 2 years, the Chapron and CitroŽn teams work hand in hand in order to strengthen the safety standards on the car and to minimize the cost of production. On the basis of a design by DS designer Flaminio Bertoni, Chapron developed a two-door convertible body that was sold through the CitroŽn dealer network. The Series convertible was presented at the 1960 Paris Motor Show.
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html

Last edited by kach22i; 11-24-2020 at 02:09 PM..
  Reply With Quote
Old 11-24-2020, 02:15 PM   #533 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 3,844
Thanks: 50
Thanked 2,553 Times in 1,788 Posts
More weird, if they were only aerodynamic.

I bet compared to other cars of the day they were very aerodynamic.

https://www.artcurial.com/fr/lot-196...dandy-2015-231


VOITURES DE LEGENDE (749) : CITROEN DS 21 "LE CADDY" CHAPRON CABRIOLET - 1960 - VICTOR ASSOCIATION
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html
  Reply With Quote
Old 11-24-2020, 02:51 PM   #534 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 19,749
Thanks: 5,539
Thanked 6,489 Times in 5,220 Posts
Quote:
Interesting phrase should one do a Google image search.
Happy to help.

Except: Duckduckgo, Bing, Yahoo ....or, the most tantalising — GTP-3.

I used to have a 1/43rd scale model of the Chapron Citroen convertible. My favorite Chevy (and Olds) is the 1961. There was also, earlier in the 1940s and 50s, the business coupe.


https://s.aolcdn.com/os/ab/_cms/2019...9-hudson-1.jpg

I could have had one of these for my first car, but I passed on it for a bullet-nosed Studebaker (four-door, not the Starlight coupe ).

https://en.wikipedia.org/wiki/Studebaker_Starlight

(or the business coupe)


[ibid]
__________________
.
Conclussion: a realization that smacks you upside the head
_________________

"Anything is a smoke machine if you use it wrong enough" --AvE
_________________
  Reply With Quote
Old 11-24-2020, 03:35 PM   #535 (permalink)
EcoModding Apprentice

Bicycle Bob's Avatar

Join Date: May 2008
Location: N. Saskatchewan, CA
Posts: 1,675

Appliance White - '93 Geo Metro 4-Dr. Auto
Last 3: 42.35 mpg (US)

Stealth RV - '91 Chevy Sprint Base
Thanks: 84
Thanked 396 Times in 276 Posts
I collect pictures of business coupes because I think they look so much like cartoon cars.
__________________
There is no excuse for a land vehicle to weigh more than its average payload.
  Reply With Quote
Old 11-24-2020, 04:00 PM   #536 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 19,749
Thanks: 5,539
Thanked 6,489 Times in 5,220 Posts
Wait until you find 'flower cars'!

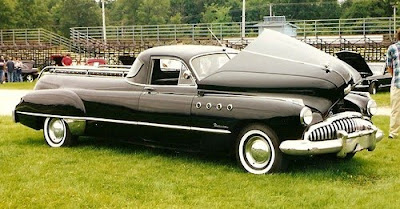

justacarguy.blogspot.com: Before the modern hearse and funeral service flowers were delivered by truck conversion Cadillacs aka Cadamino's

Super-utes. Big opportunity for an half-tonneau.
__________________
.
Conclussion: a realization that smacks you upside the head
_________________

"Anything is a smoke machine if you use it wrong enough" --AvE
_________________
  Reply With Quote
Old 11-24-2020, 04:31 PM   #537 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 19,749
Thanks: 5,539
Thanked 6,489 Times in 5,220 Posts


I'm still curious about this. Compare with a coleopter or any ducted fan. I'd test an external duct lined with cold plasma actuators.

Example: a 50-50 morph of this and the Volkhart-Sagitta:



(Maybe an inverted periscope [Fresnel] back window)
__________________
.
Conclussion: a realization that smacks you upside the head
_________________

"Anything is a smoke machine if you use it wrong enough" --AvE
_________________

Last edited by freebeard; 11-24-2020 at 04:40 PM..
  Reply With Quote
Old 11-25-2020, 09:01 AM   #538 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 3,844
Thanks: 50
Thanked 2,553 Times in 1,788 Posts
Quote:
Originally Posted by freebeard View Post
............. or any ducted fan.
I hear what you are saying, looks like a divergent duct.

model aircraft: THE RELATIONS BETWEEN PRESSURE, VOLUME AND TEMPERATURE



The Porsche 959 wing may be similar, notice the angle of the top plane and inner plane.

https://www.stuttcars.com/porsche-models/959/




I've always assumed that there was no attached flow on the back window, and that the wing actually served to fill out the aero-template similar to a Bonneville style spoiler.

This would explain the top side of the wing angle which if a normal wing the angle of attack is that of lift, not down force.

An oddity, when a wing isn't a wing but a plane for re-pressurization or semi-attachment at trailing edge.
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html

Last edited by kach22i; 11-25-2020 at 09:16 AM..
  Reply With Quote
The Following User Says Thank You to kach22i For This Useful Post:
freebeard (11-25-2020)
Old 11-26-2020, 09:03 AM   #539 (permalink)
Master EcoModder

kach22i's Avatar

Join Date: Jul 2011
Location: Ann Arbor, Michigan
Posts: 3,844
Thanks: 50
Thanked 2,553 Times in 1,788 Posts
I've described this style of roof as maybe related to the double bubble roofs that rise up over the front passenger plus driver, and theorized it may add entry and egress via raised upper portion.

However, this caption claims it's simply to keep the rain from washing on your head as you get in and out.


Wind and Automotive Design ó 2
https://medium.com/@sooshin/wind-and...2-c2db7a20b34a

Quote:
A roof of Toyota Prius. It is designed to prevent rain water from flowing towards the doors. The doors are higher than the roof, too, to stop rainwater from flowing over the doors.
An odd detail, beats old fashion rain gutters I guess.
__________________
George
Architect, Artist and Designer of Objects

1977 Porsche 911s Targa
1998 Chevy S-10 Pick-Up truck
1989 Scat II HP Hovercraft

Chin Spoiler:
http://forums.pelicanparts.com/off-t...effective.html

Rear Spoiler Pick Up Truck
http://forums.pelicanparts.com/off-t...xperiment.html

Roof Wing
http://ecomodder.com/forum/showthrea...1-a-19525.html
  Reply With Quote
Old 11-26-2020, 01:22 PM   #540 (permalink)
Master EcoModder

freebeard's Avatar

Join Date: Aug 2012
Location: northwest of normal
Posts: 19,749
Thanks: 5,539
Thanked 6,489 Times in 5,220 Posts
IIRC Mercedes-Benz called their's a Pagoda roof.

The one thing that disappoints me about the XFi is there's no way to attach my roof racks, and I have to blow pine needles out of the upper door jamb every few days.
